Kinor

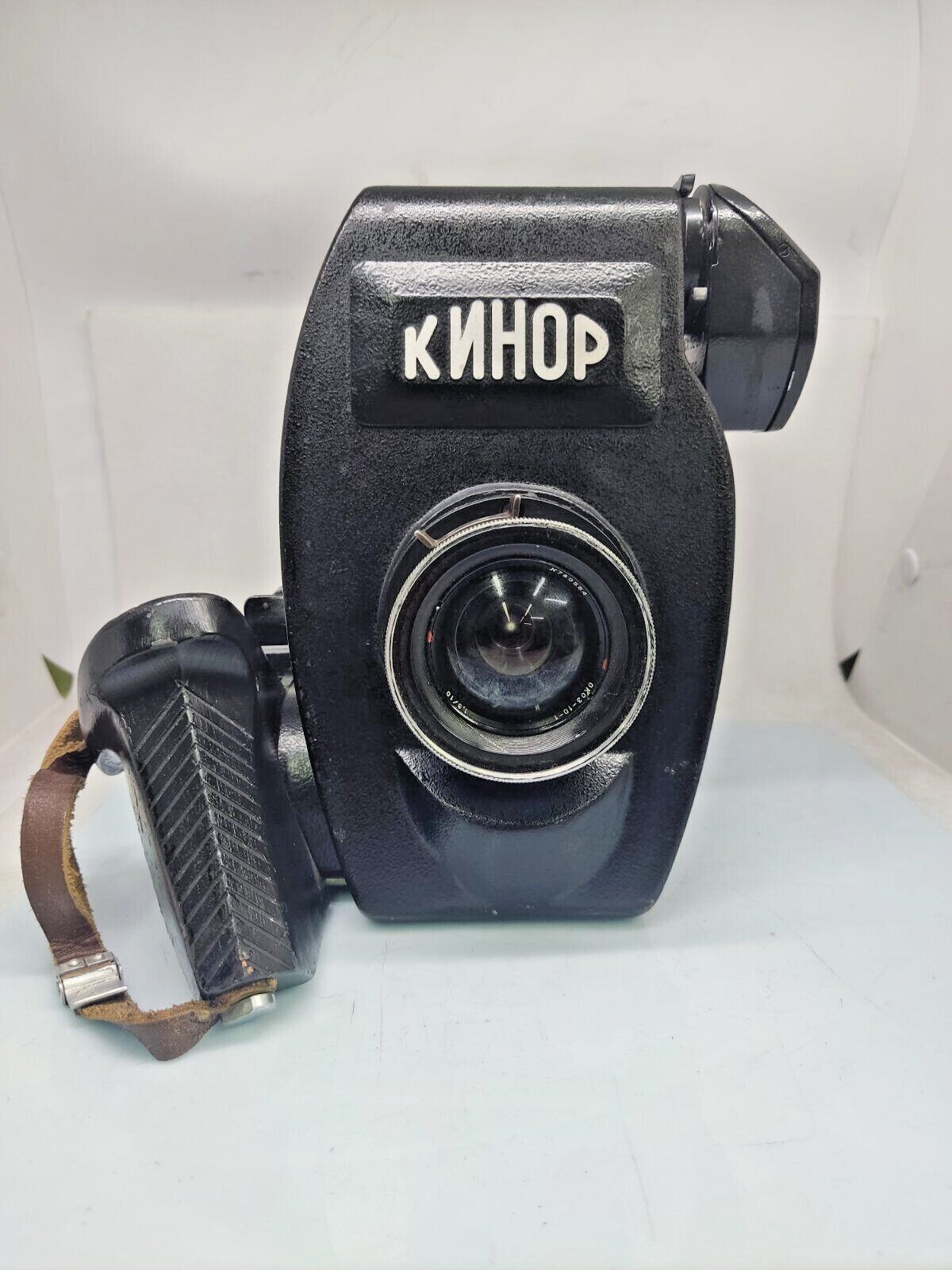

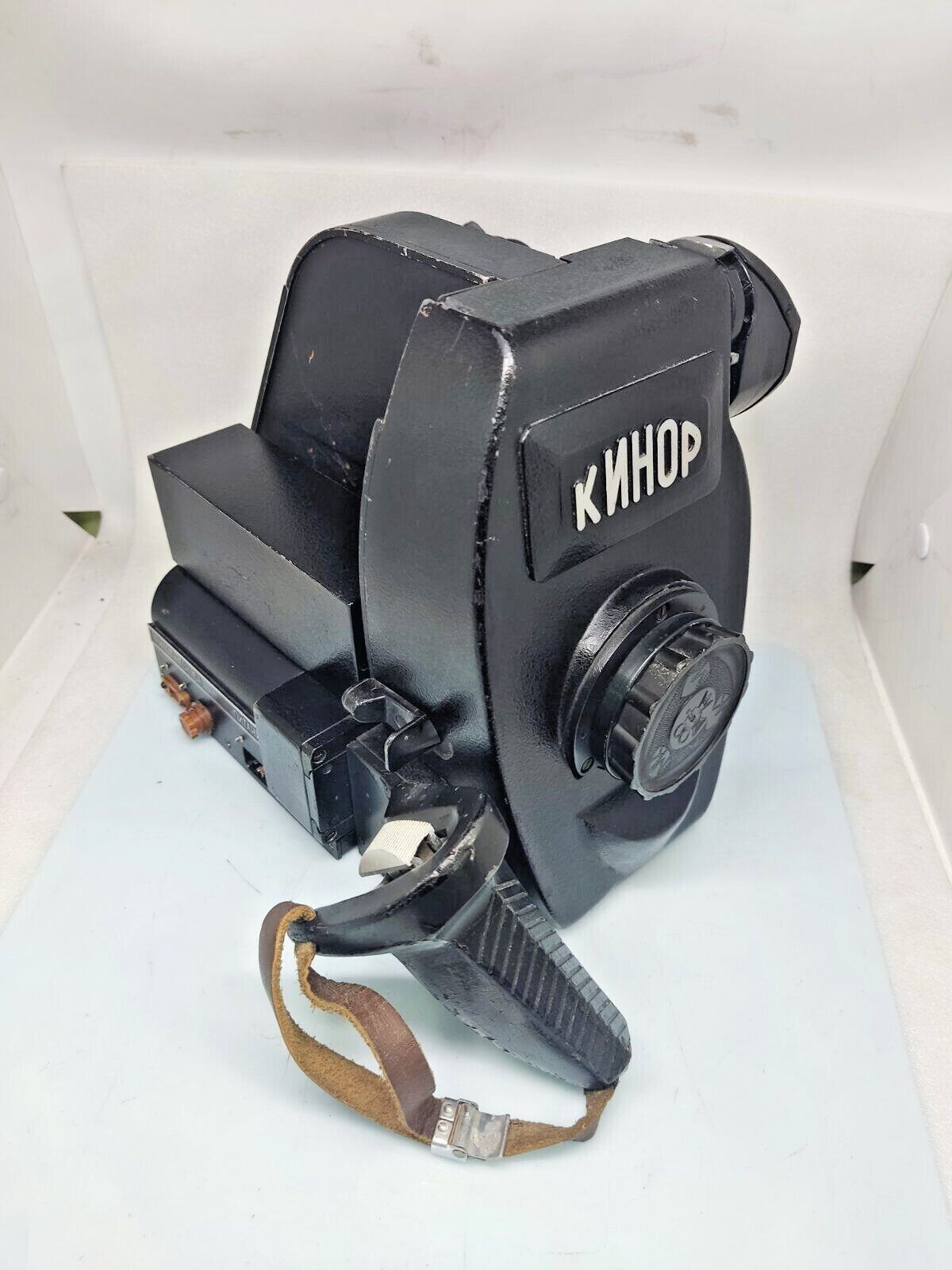

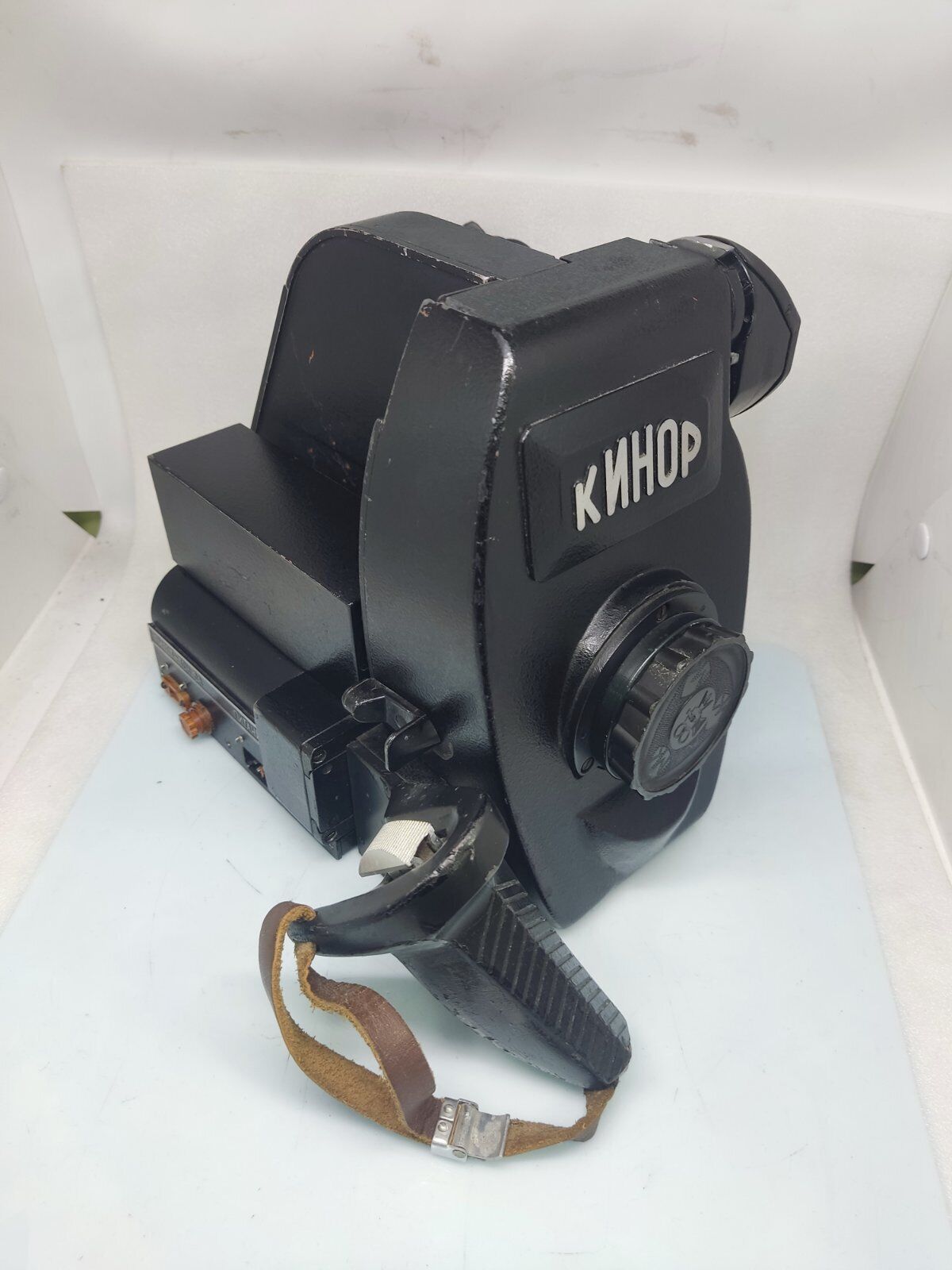

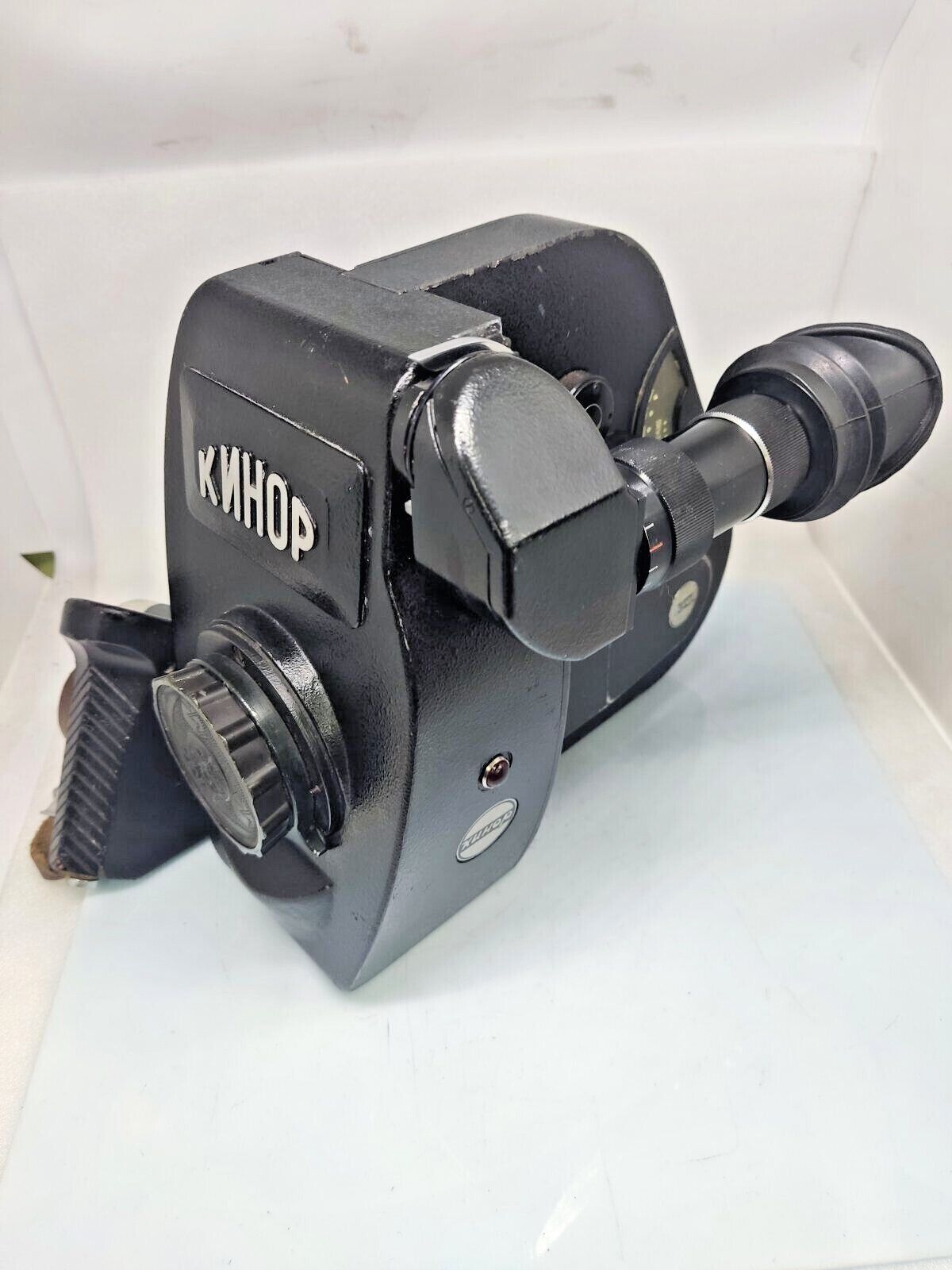

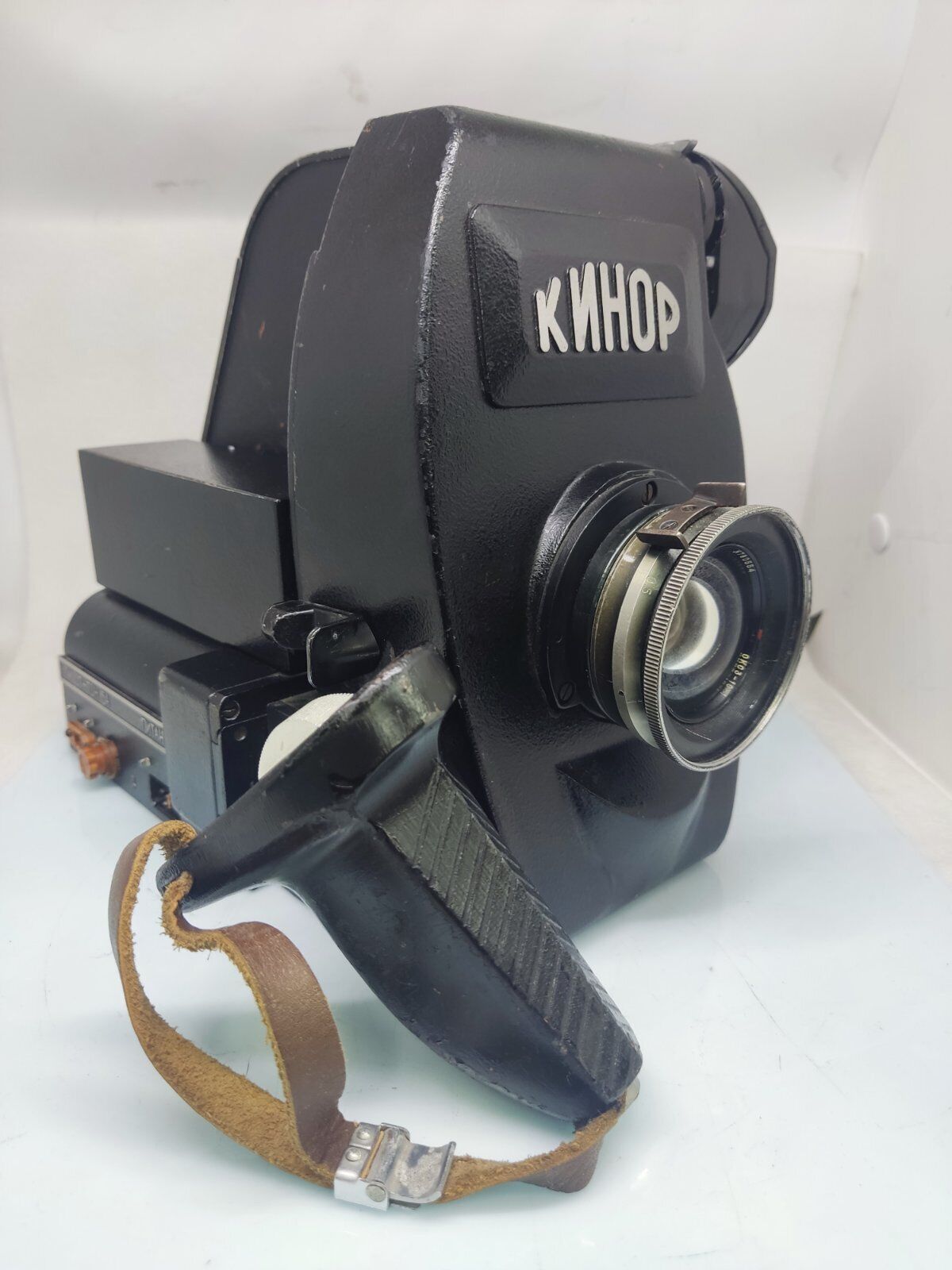

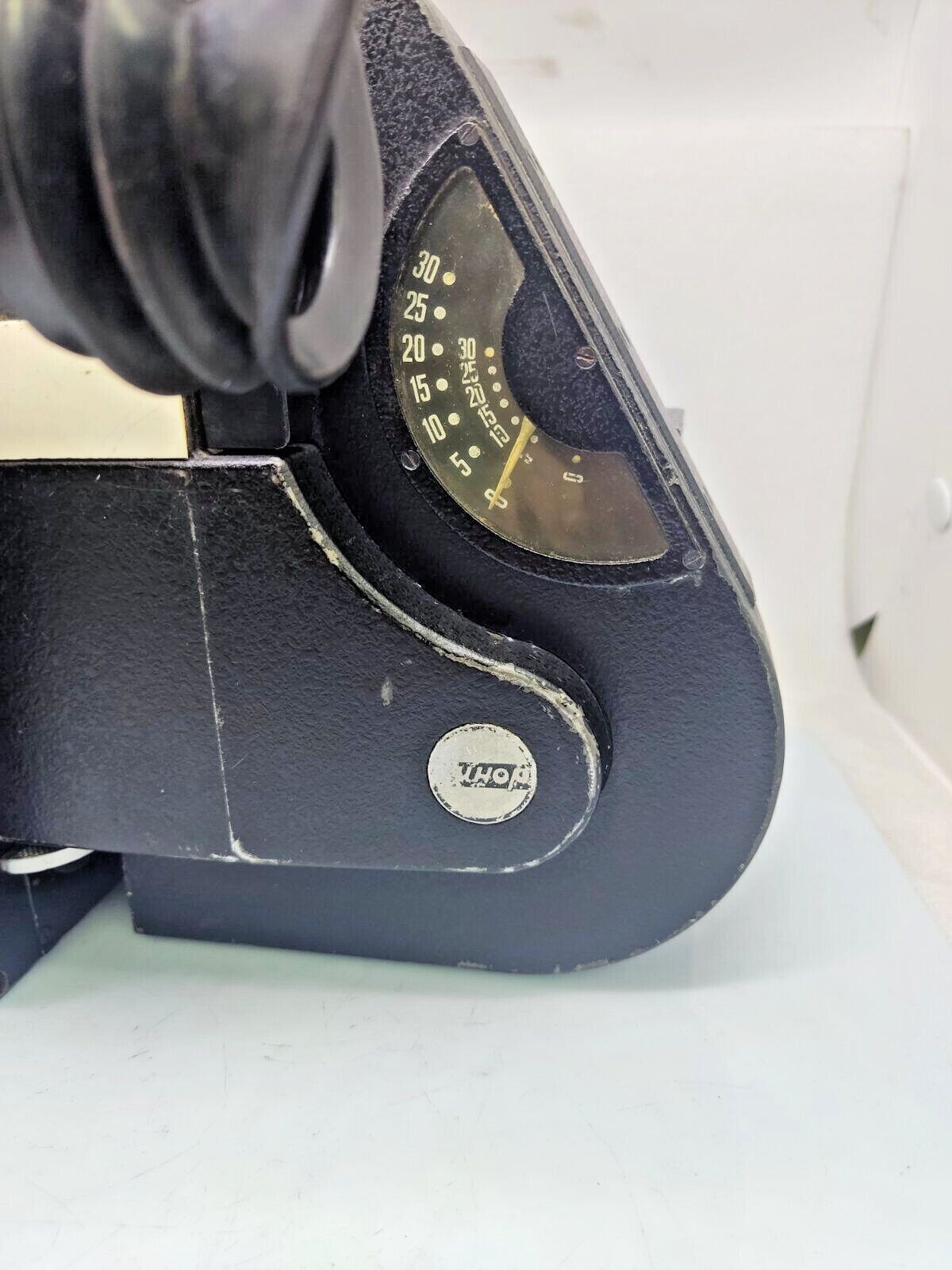

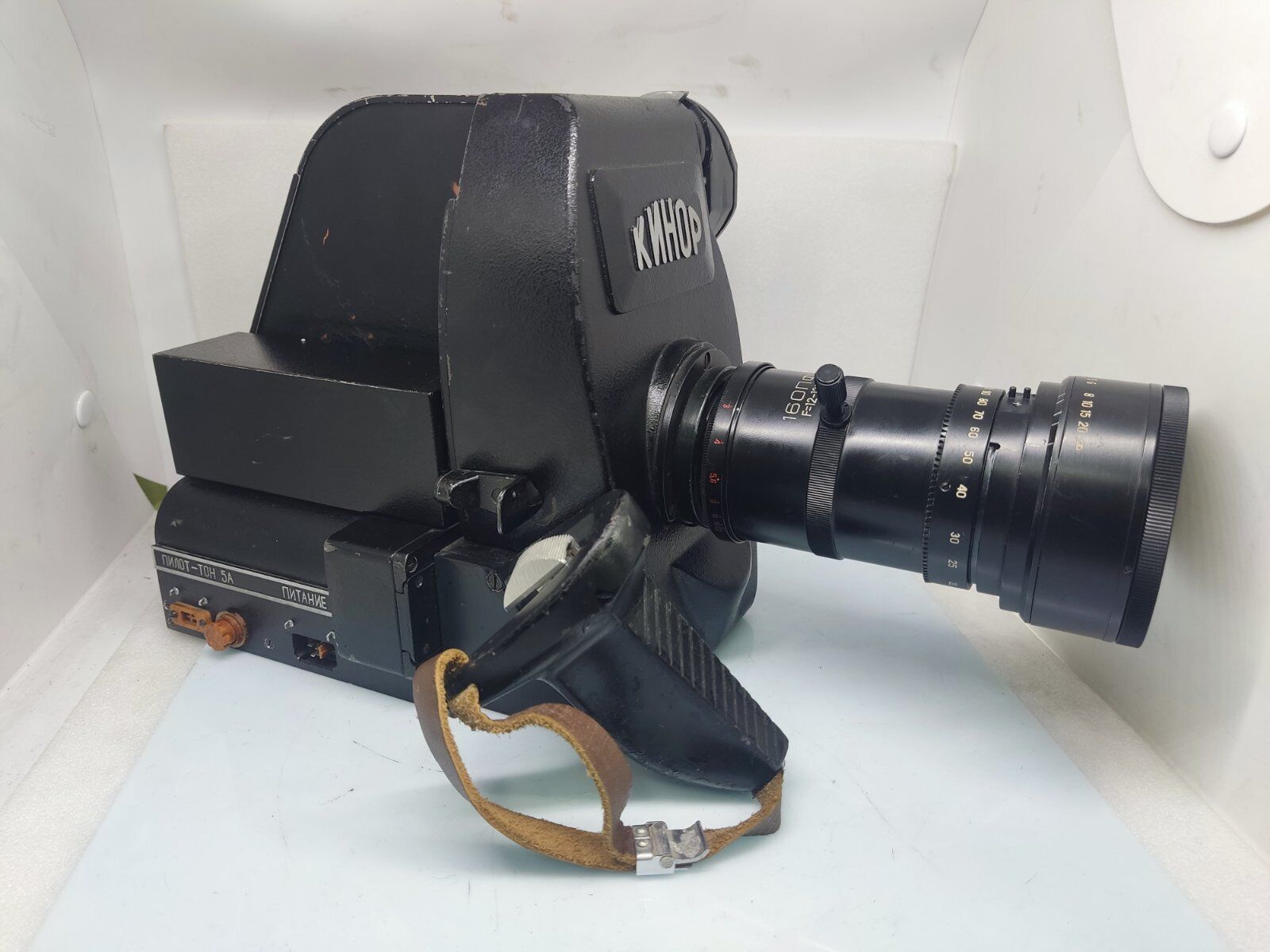

Kinor-16CX-2M Cine Camera Mags Lens XLR power Arri PL Super16 Ultra16 option

Kinor-16CX-2M Cine Camera Mags Lens XLR power Arri PL Super16 Ultra16 option

Regular price $675.00 USD
Regular price Sale price $675.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Bundle

Brand: Kinor
Series: Kinor
Type: 16mm Cine Camera
Format: 16 mm
Focus Type: Manual
Color: Black

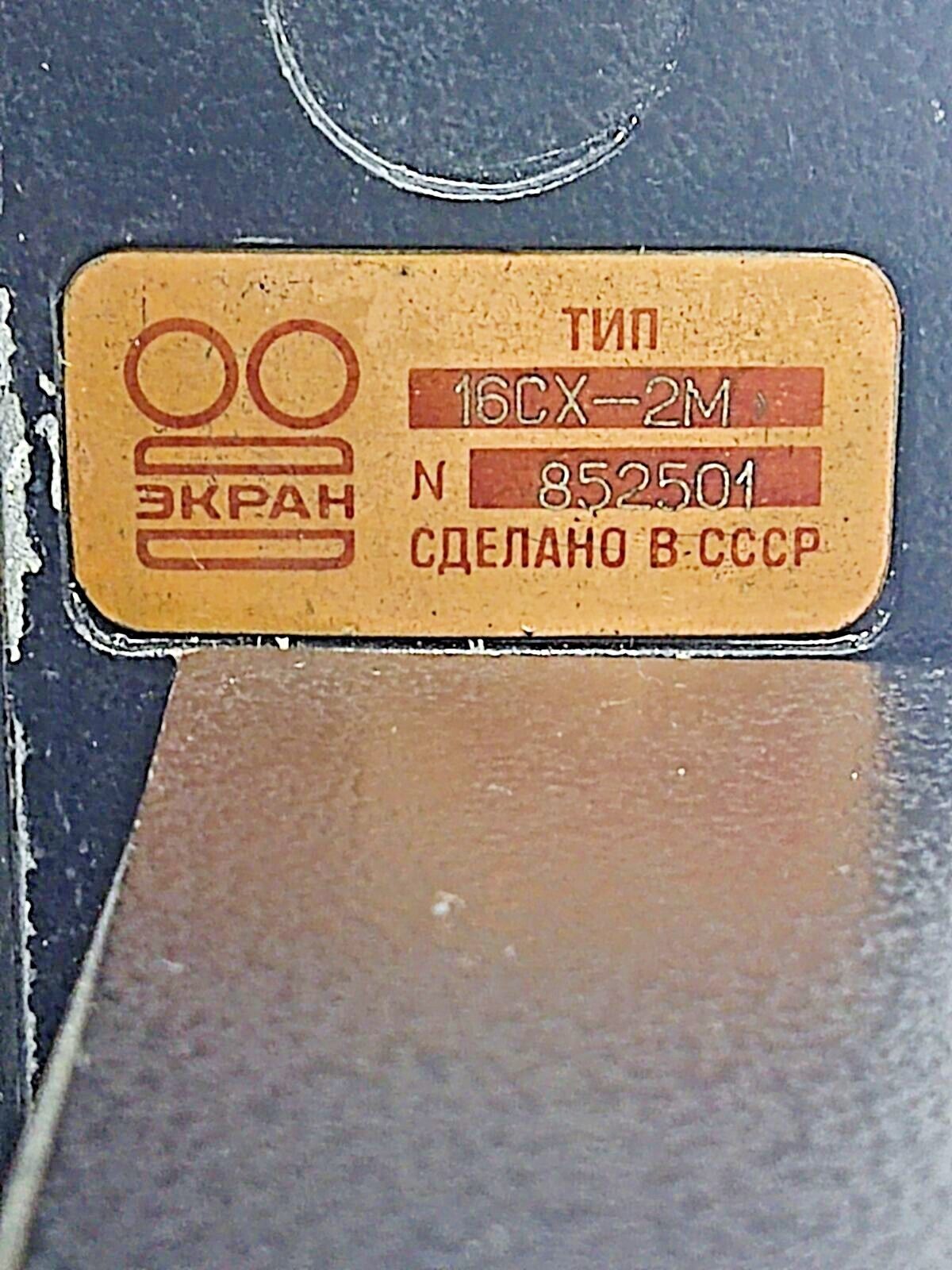

Model: Kinor-16SX-2M
Year Manufactured: 1970s
Features: Electric Drive

Kinor-16 SX-2M modified version

Mechanically fully functional. Serviced.

The 29EPSS motor is converted to an XLR 3-pin connection.

  • Optionally with ARRI PL mount. (To get the camera with PL mount, buy the "ARRI PL conversion" variation too)

  • Optionally Super16 or Ultra16 converted. (To get the Super16 or Ultra16 camera, buy the "Super16 or Ultra16" variation too)

Variations:

  1. Camera body, 29EPSS 25fps motor, two 30m mags

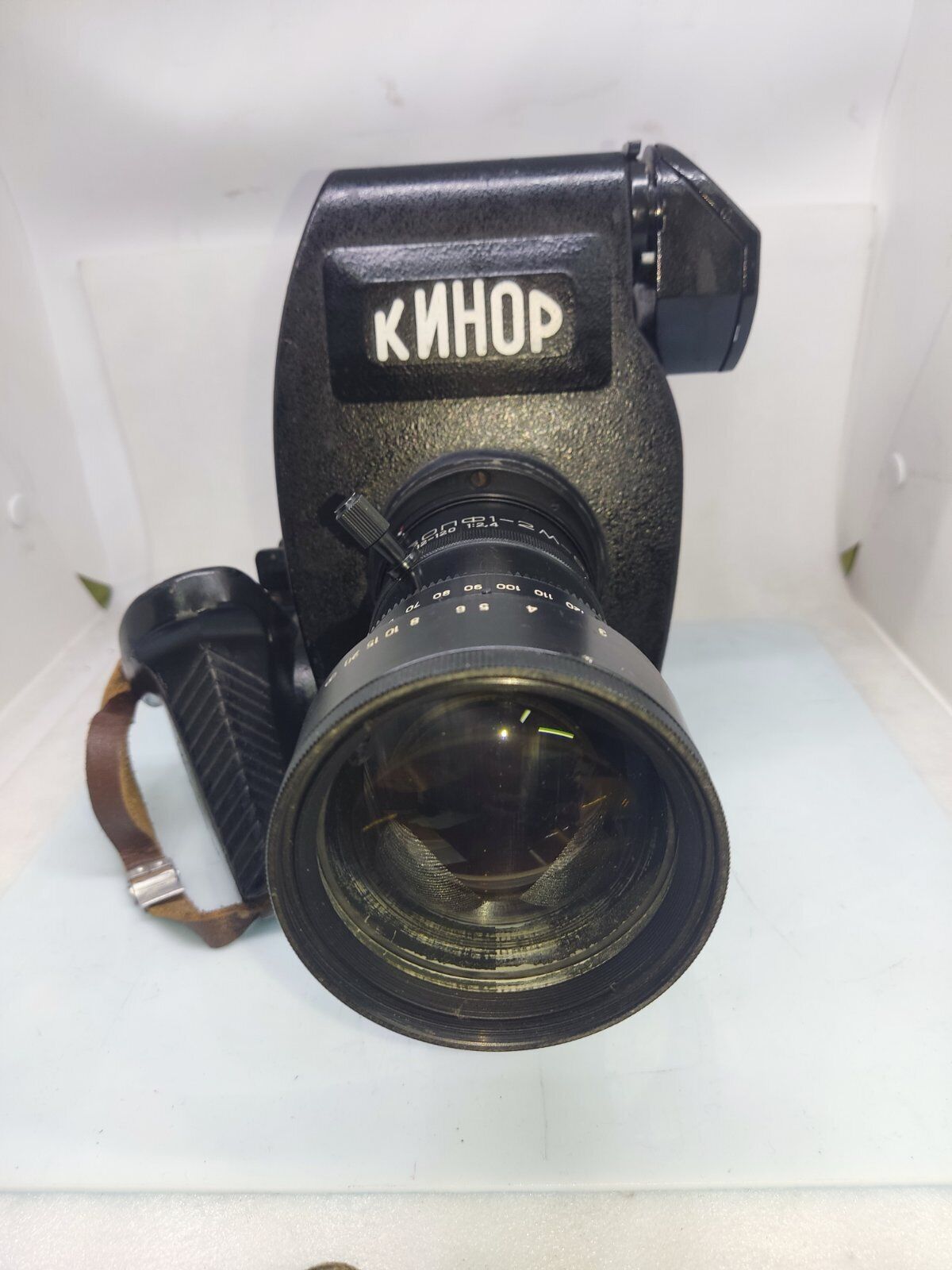

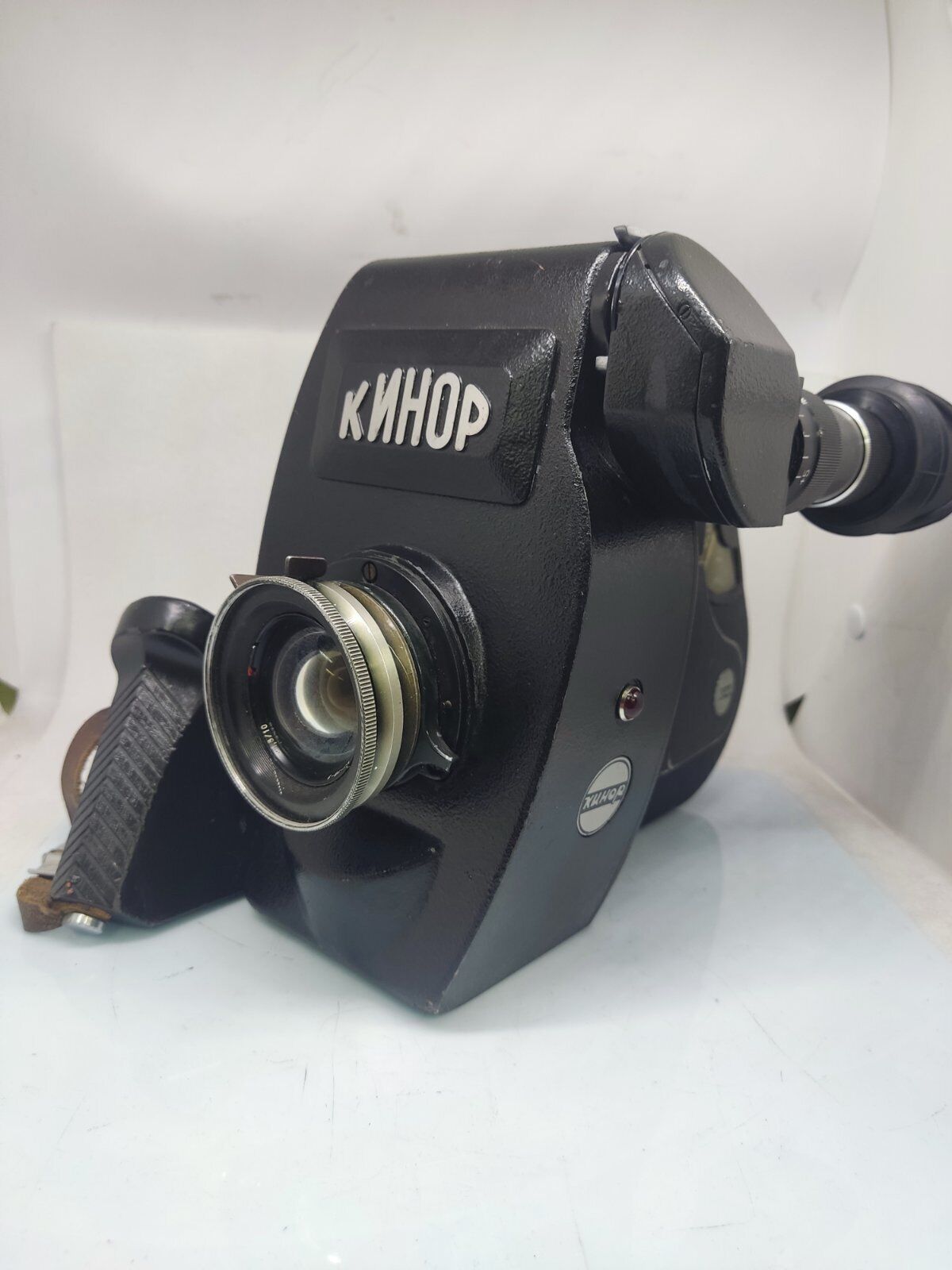

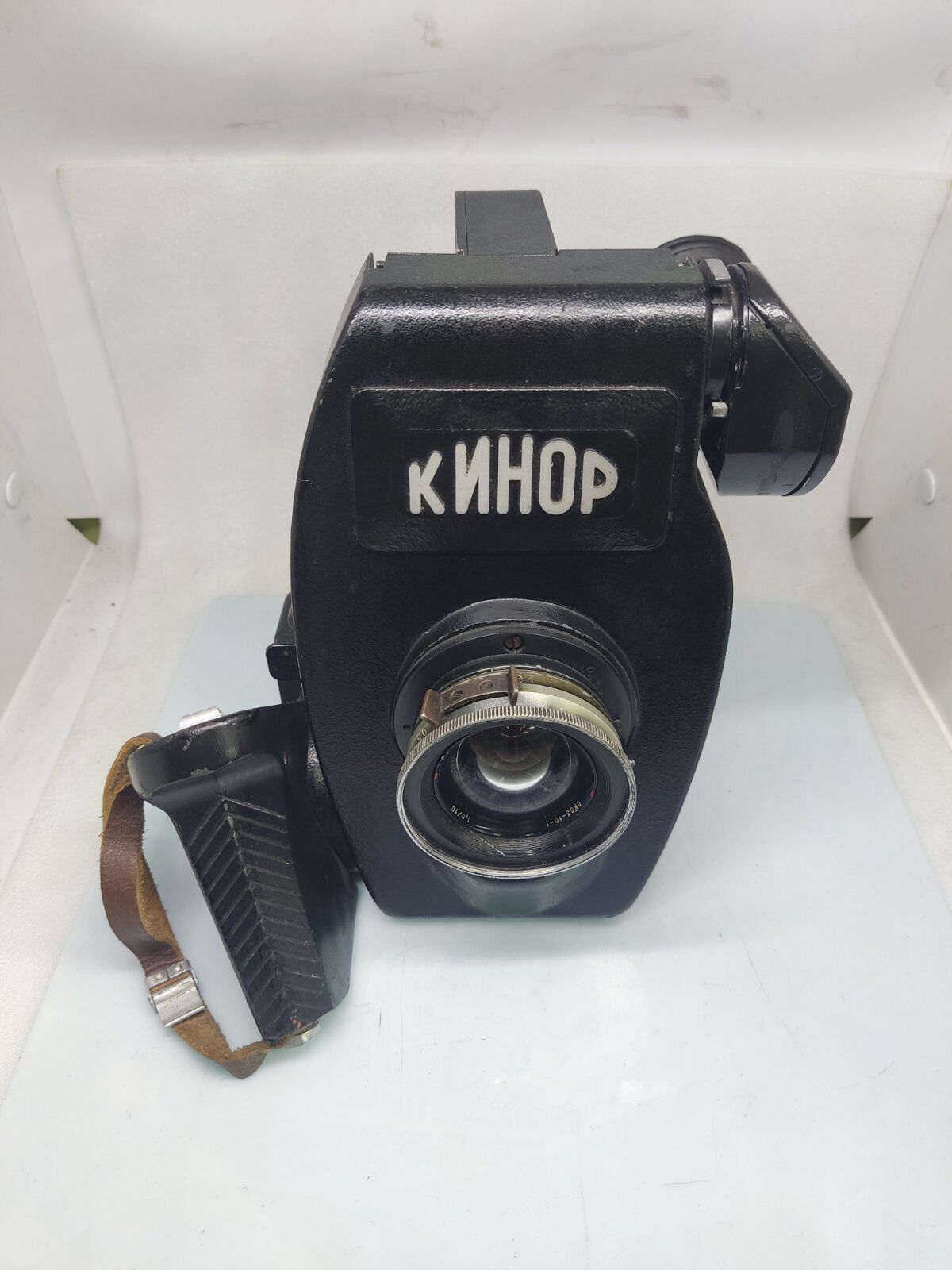

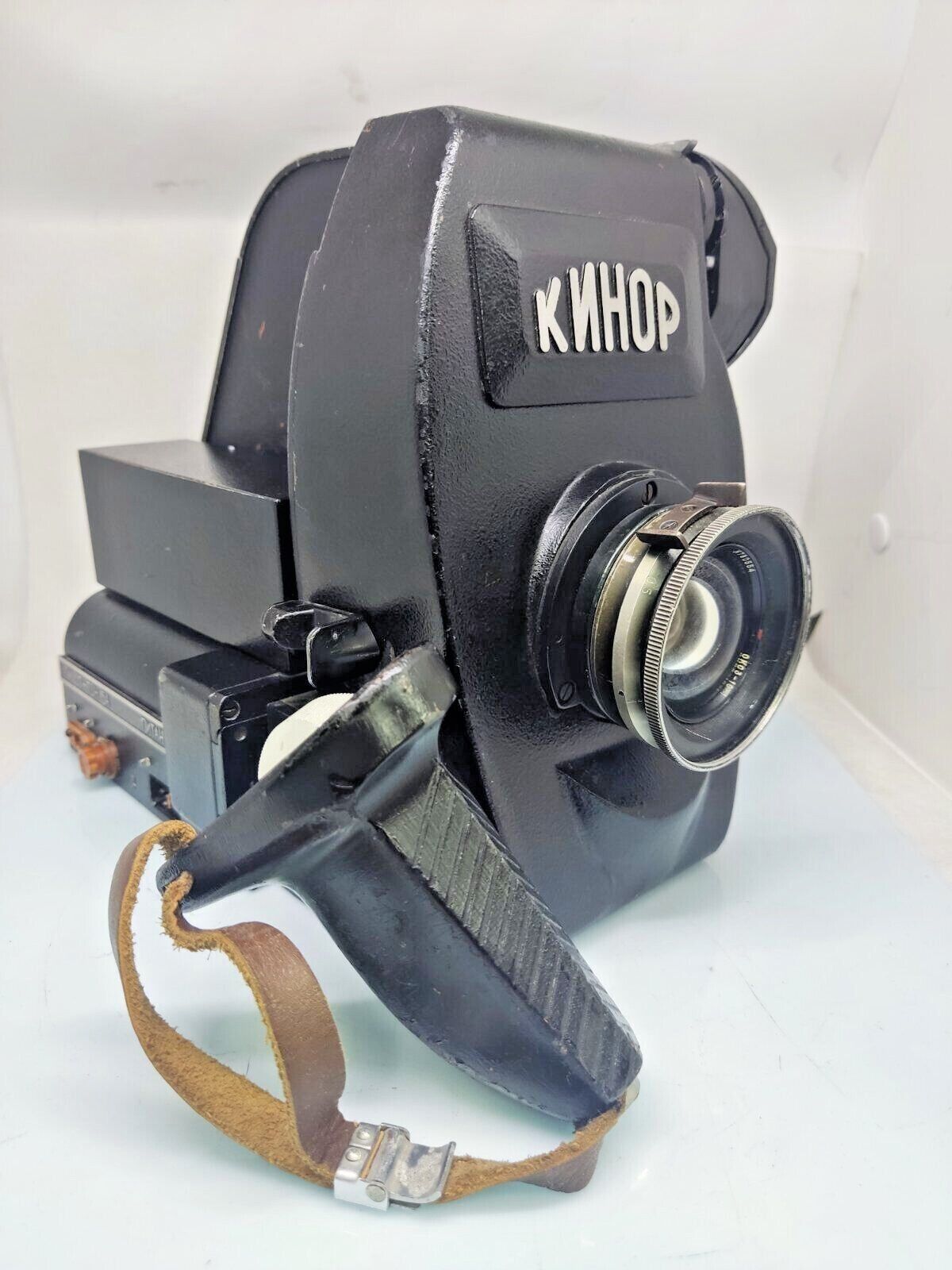

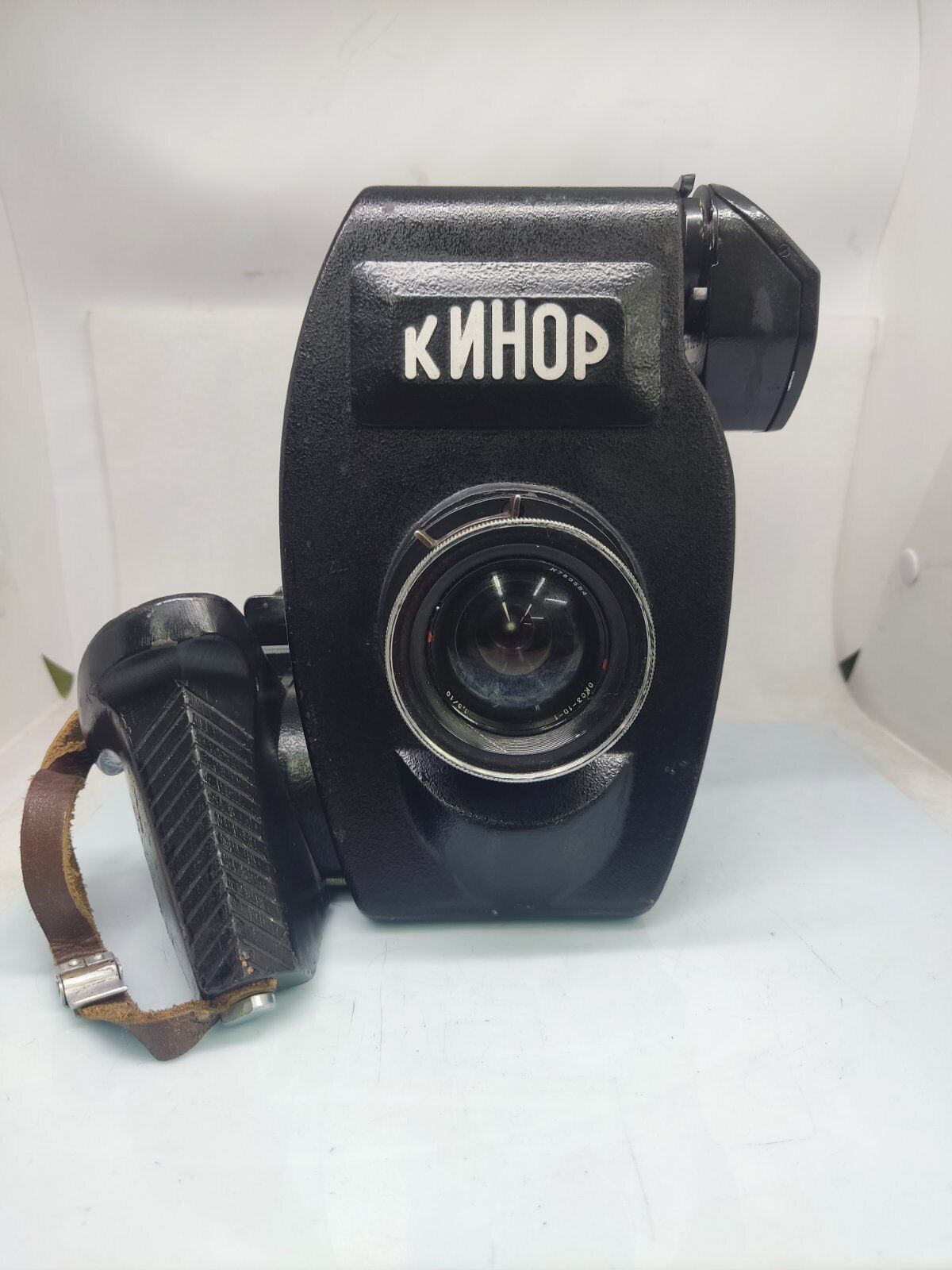

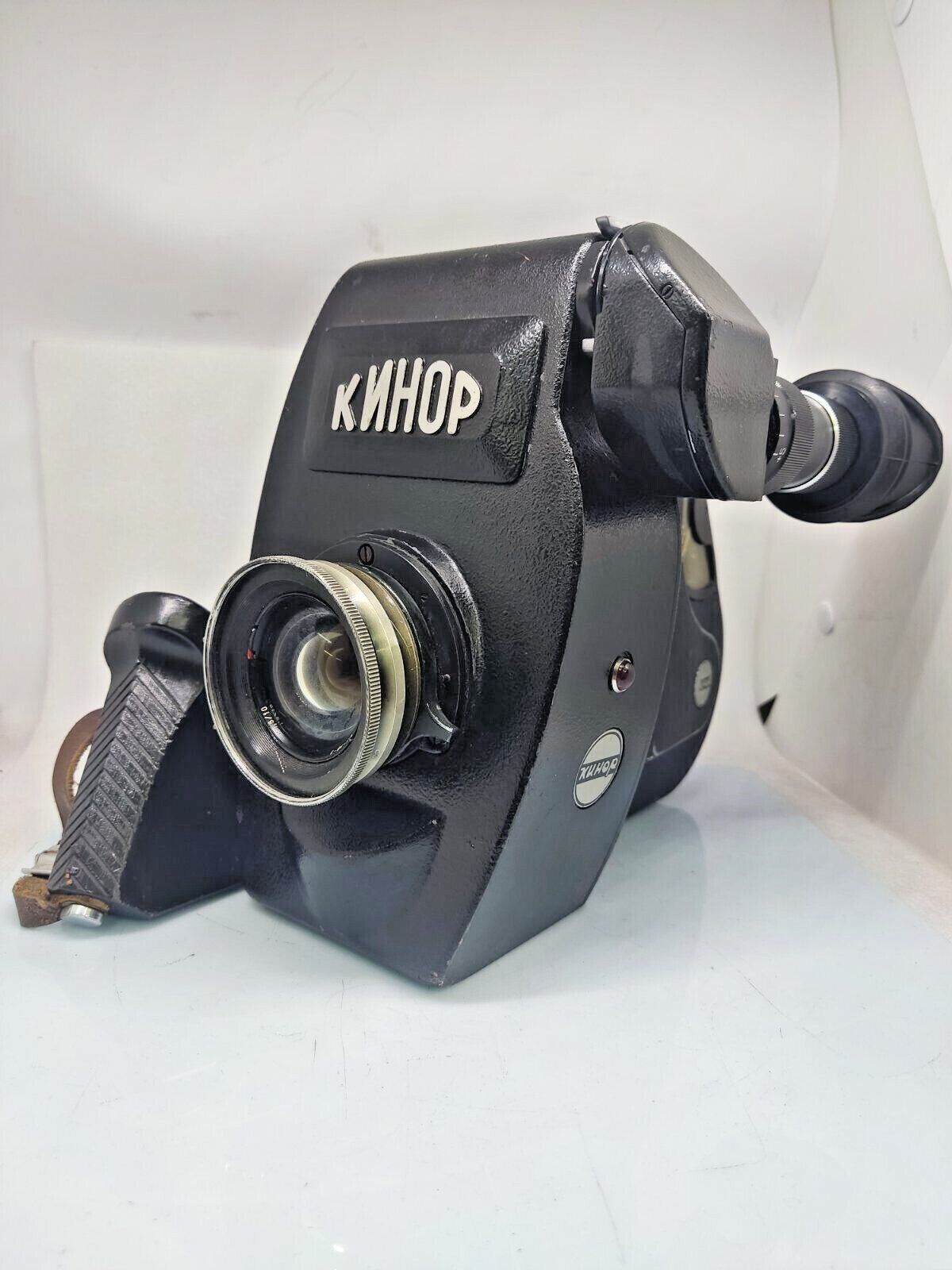

  2. Camera body, 29EPSS 25fps motor, OKC3-10-1 1.8/10mm lens, two 30m mags

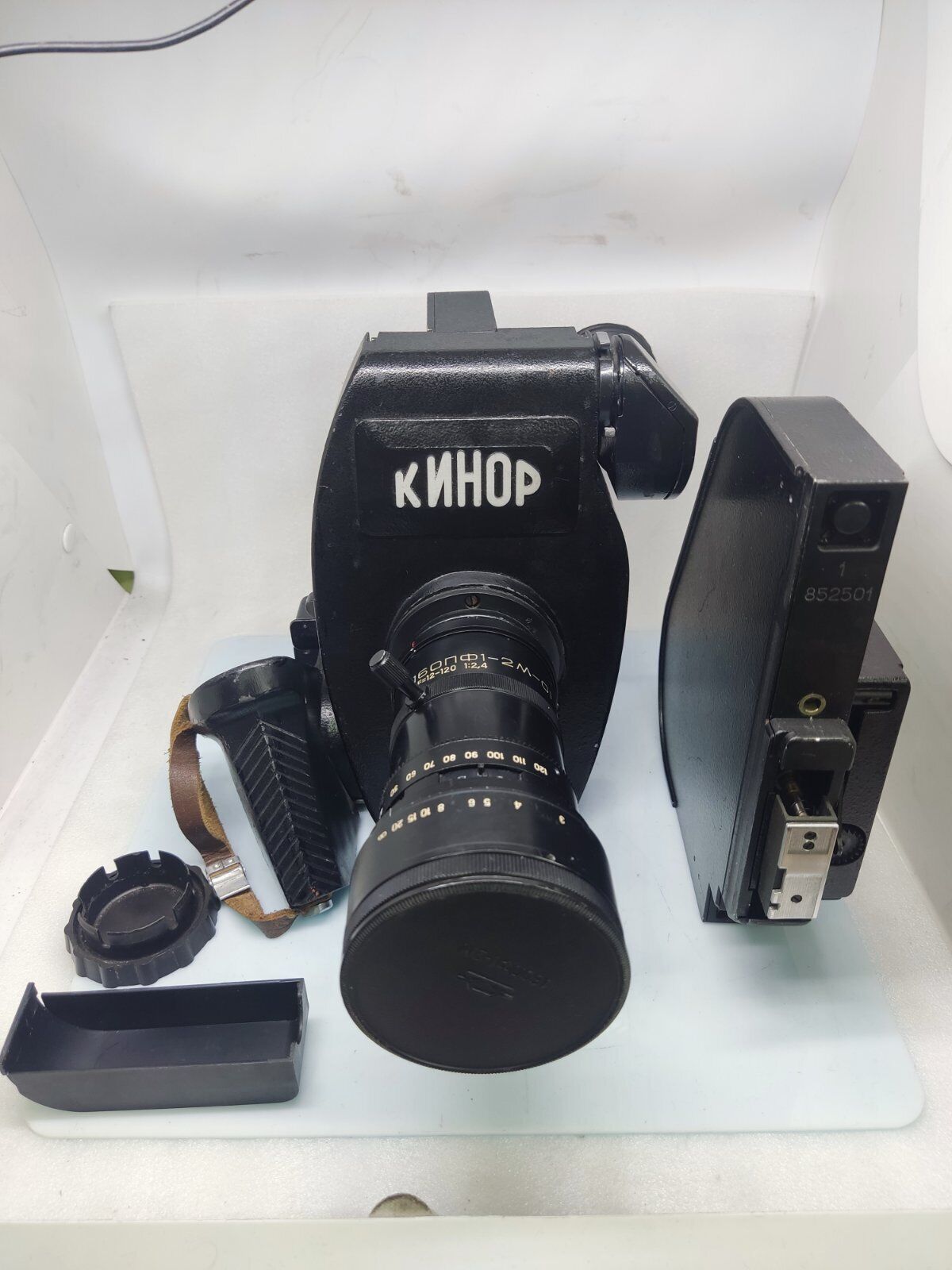

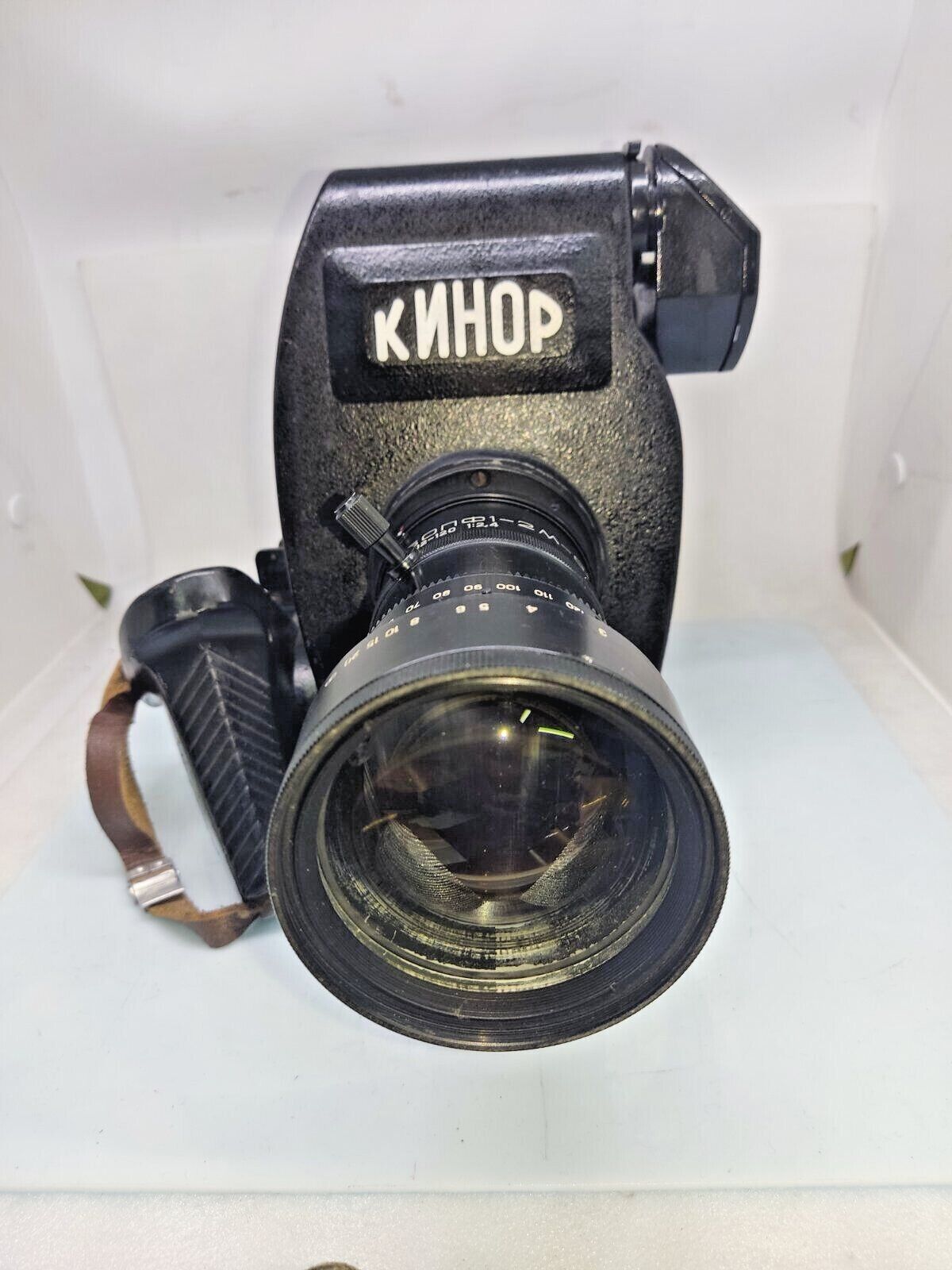

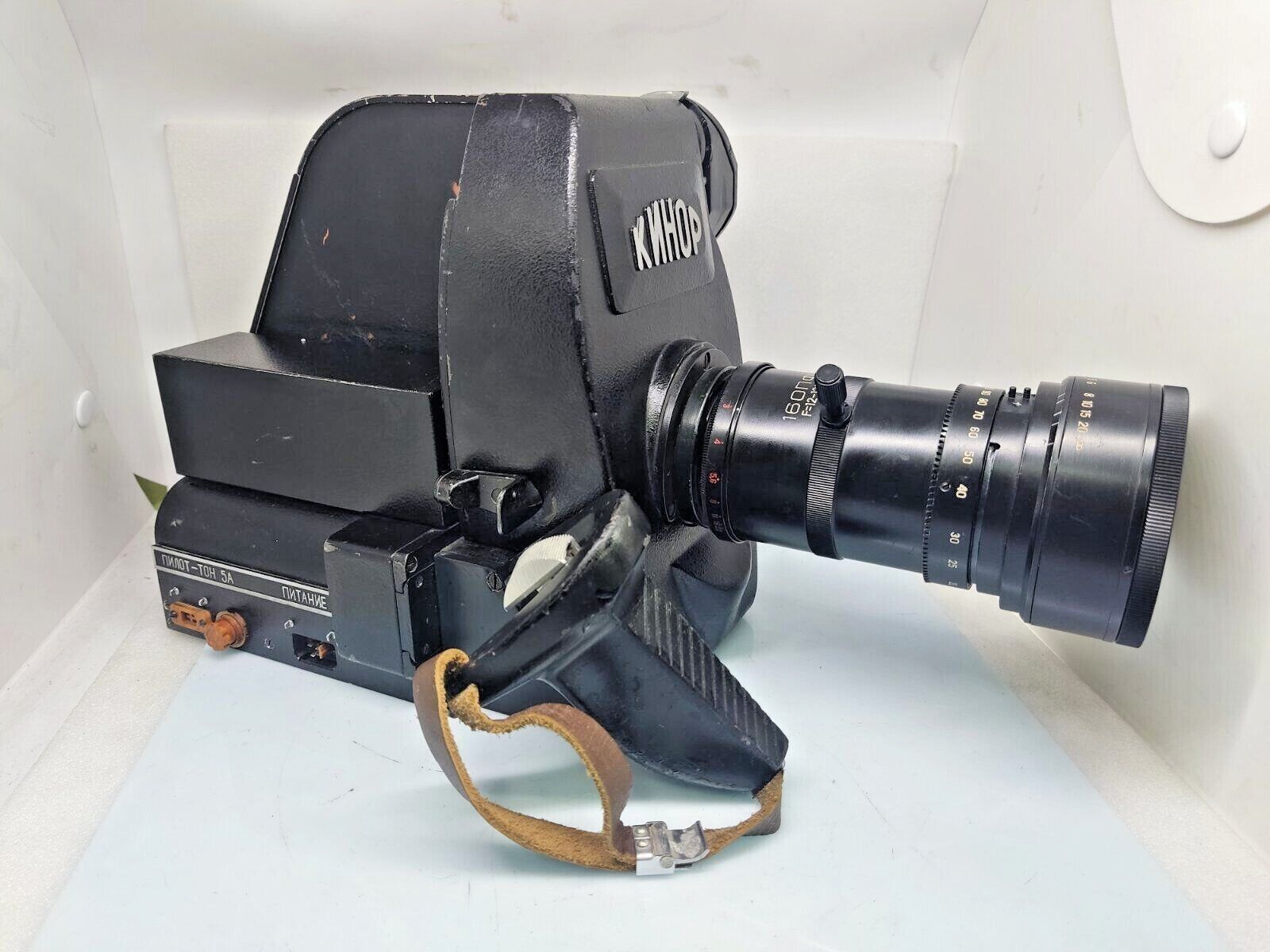

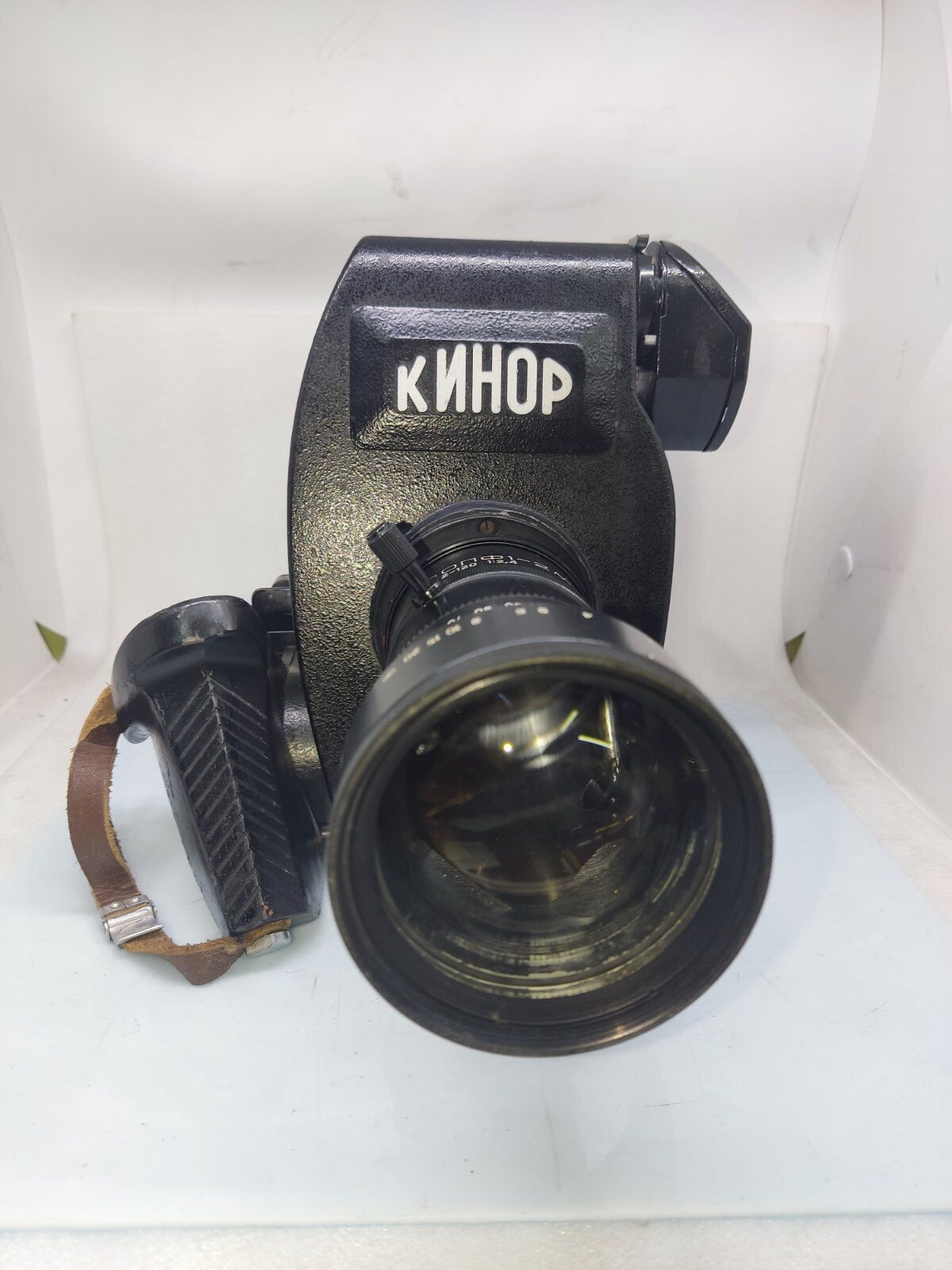

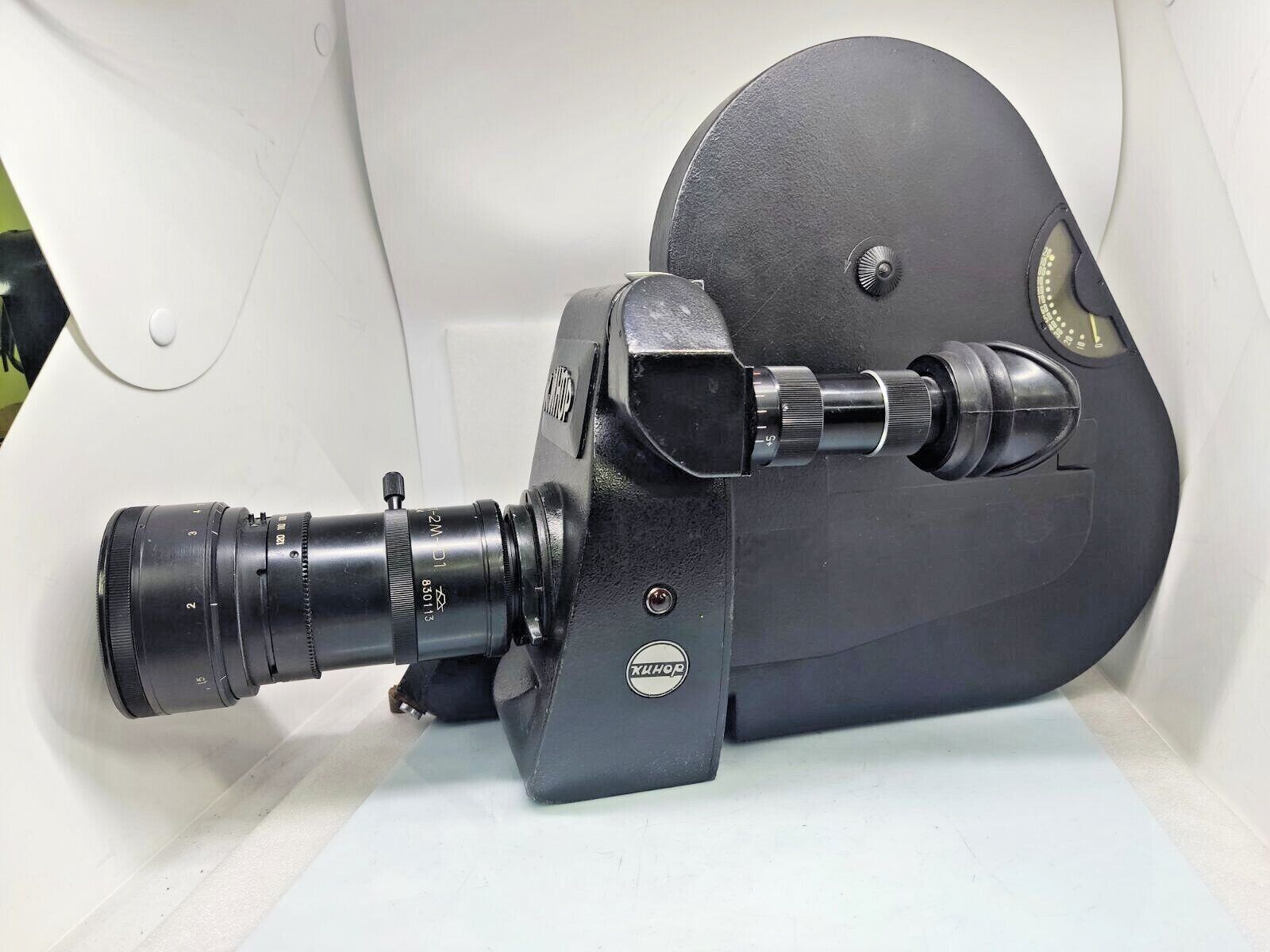

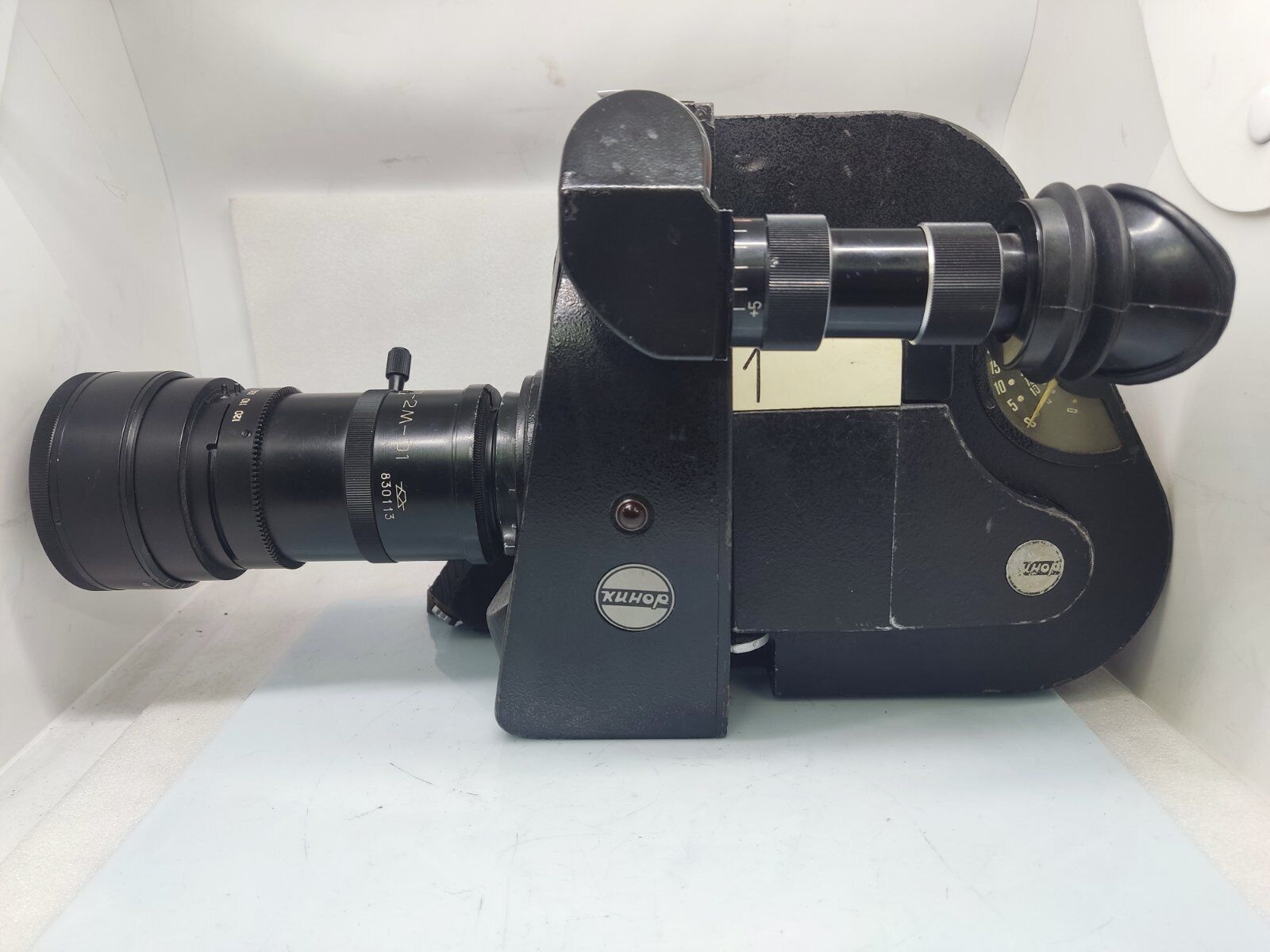

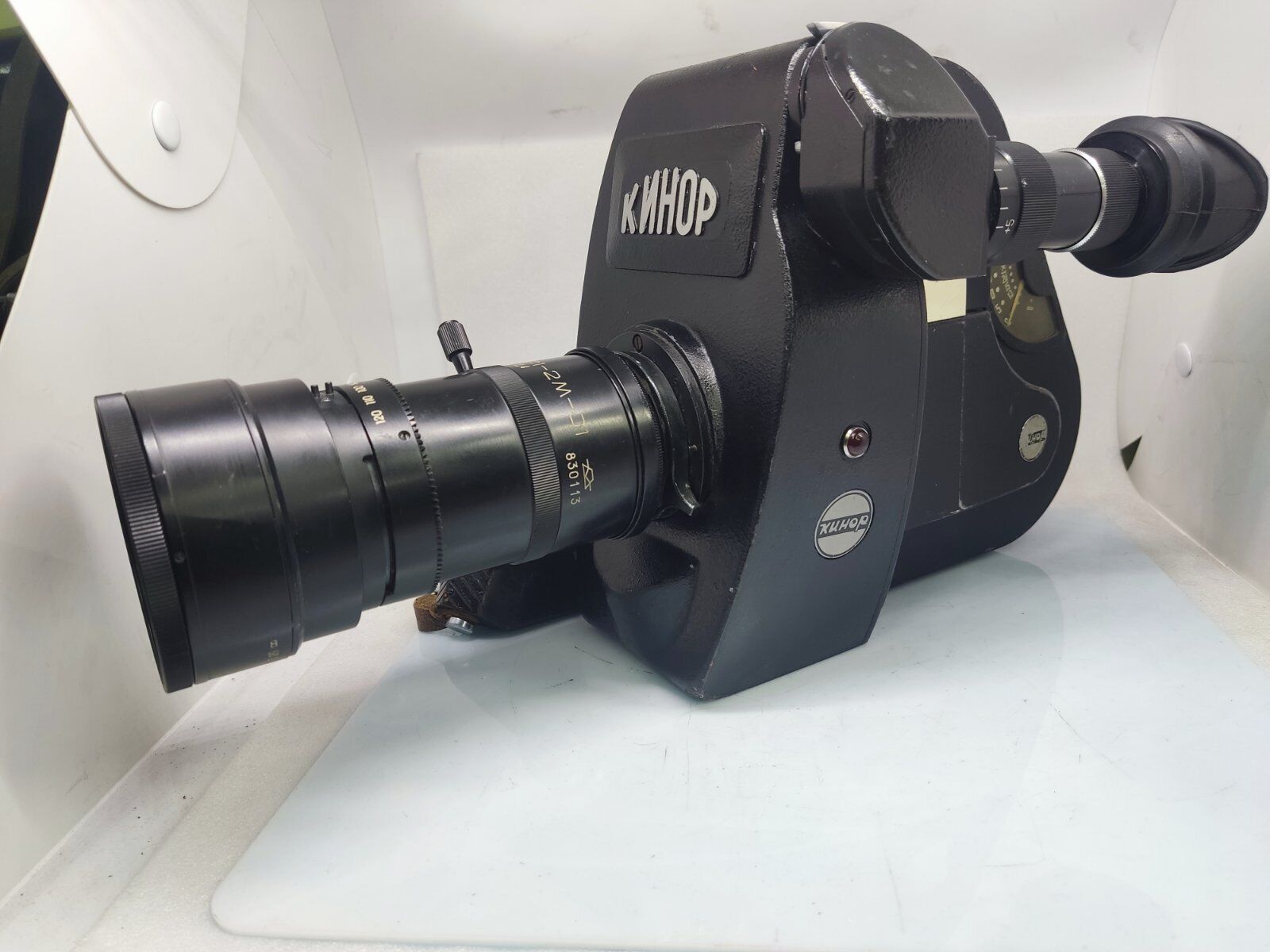

  3. Camera body, 29EPSS 25fps motor, 16OPF zoom lens, two 30m mags

  4. Camera body, 29EPSS 25fps motor, 16OPF zoom + OKC3-10-1 1.8/10mm lenses, two 30m mags

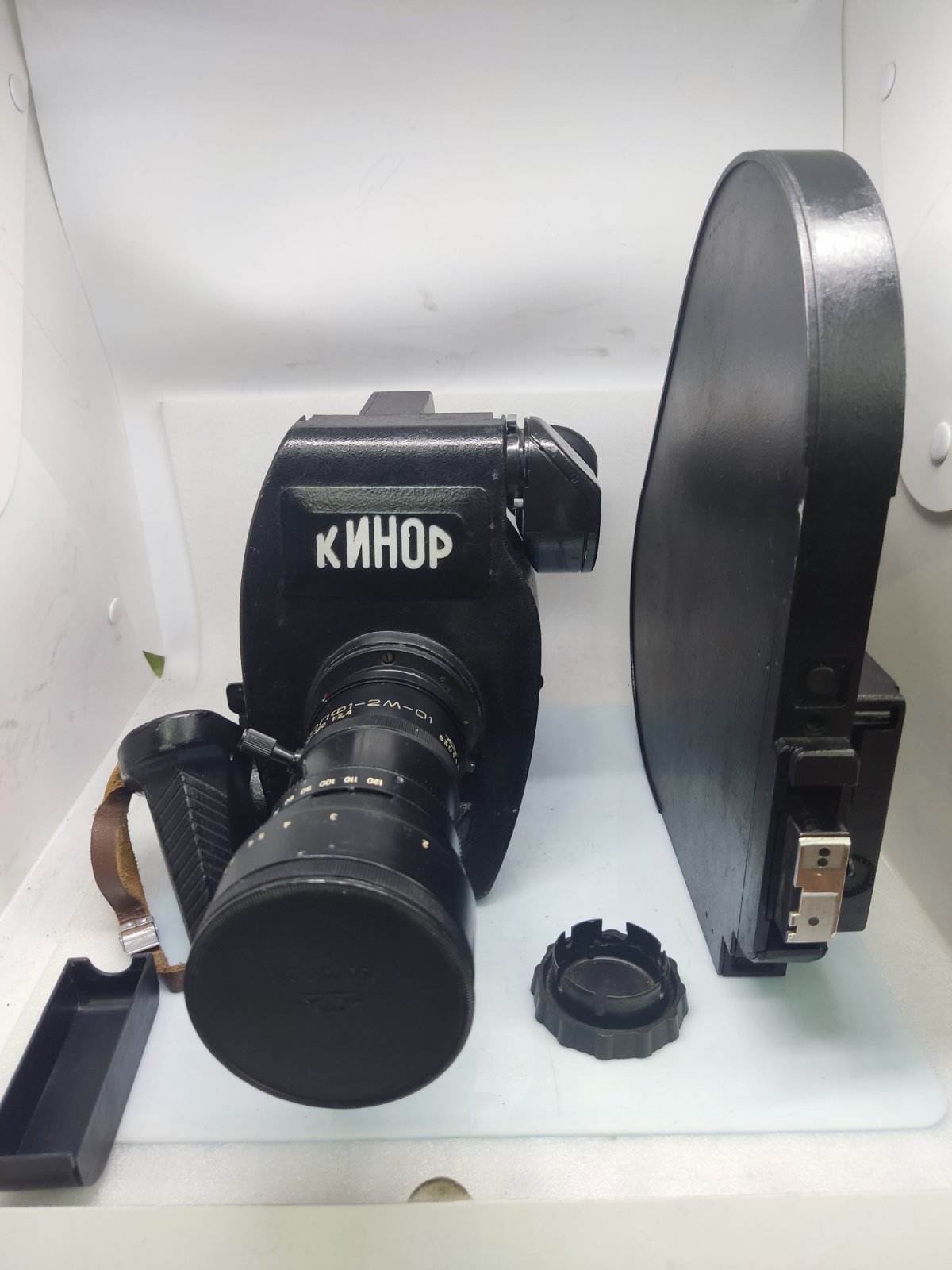

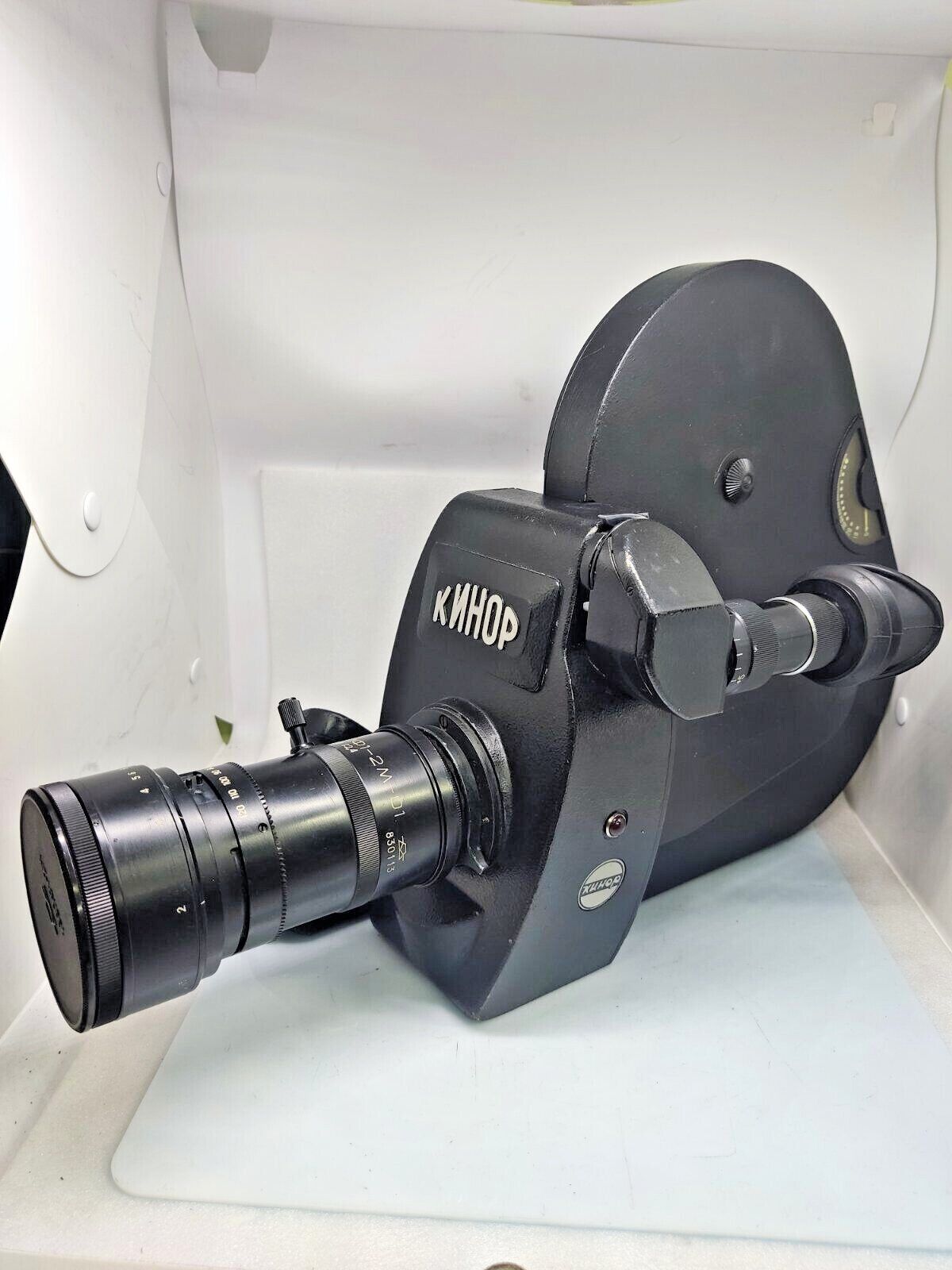

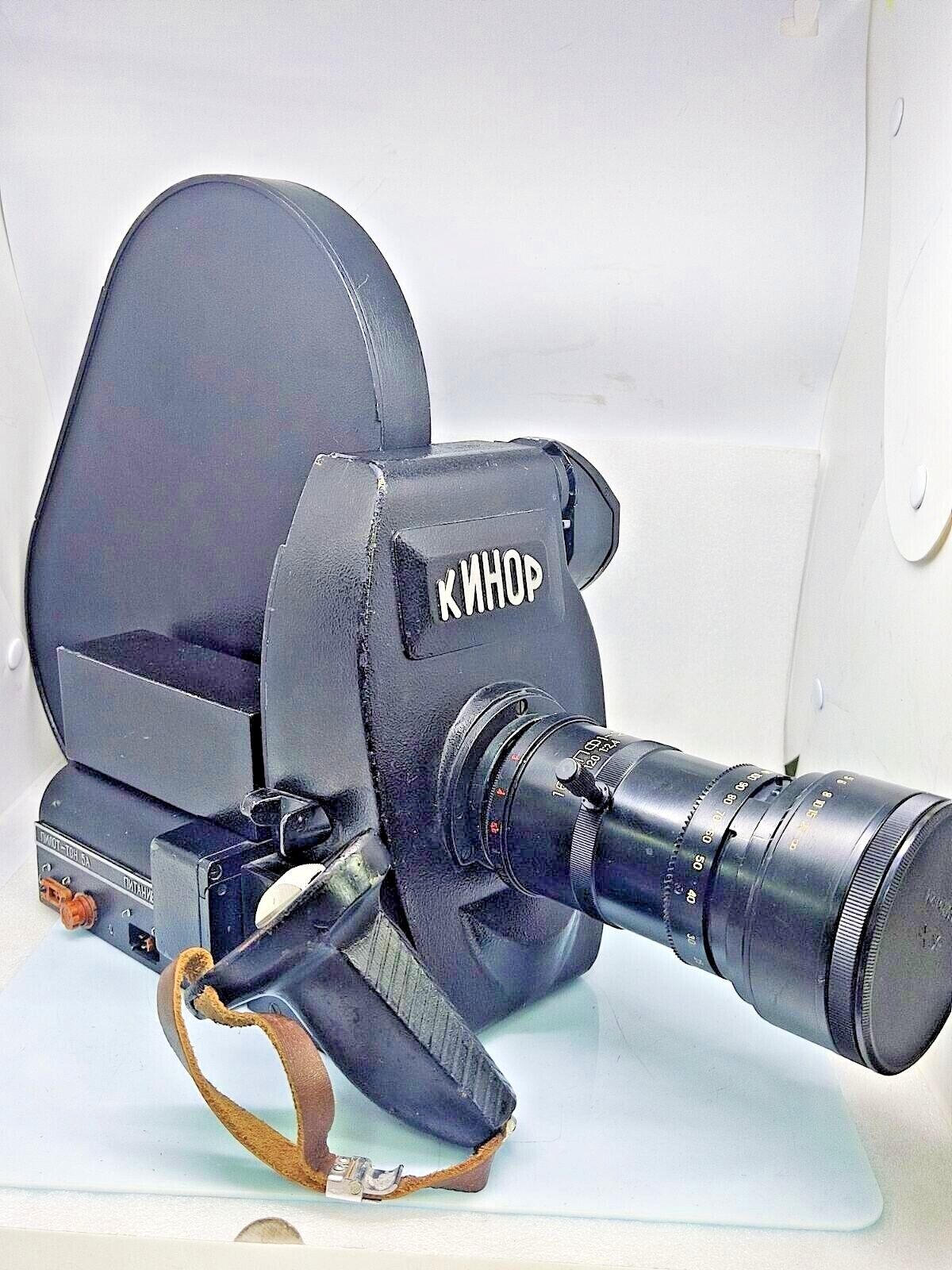

  5. Camera body, 29EPSS 25fps motor, 16OPF zoom lens, 120m + 30m mags

  6. ARRI PL mount conversion

  7. Super16 conversion

  8. Ultra16 conversion



Kinor-16 - real professional cinema camera with one transport pin, one registration pin, side film clamping.

Electrical motor of Kinor can be upgrade to crystal sync speed, multi speed, single frame, with digital film counter, remote control, variable speed.
Film - 16 mm color,or B&W cine film with perforation from one or two sides.
Position of image on film : as of Russian industrial standard GOST 17706-78.
Claw mechanism - one side, one transport pin, one side, one registration pin.
The position image on film echelon of accuracy +/- 0.01 mm.
Shutter disk - one blade 170 degree opened.

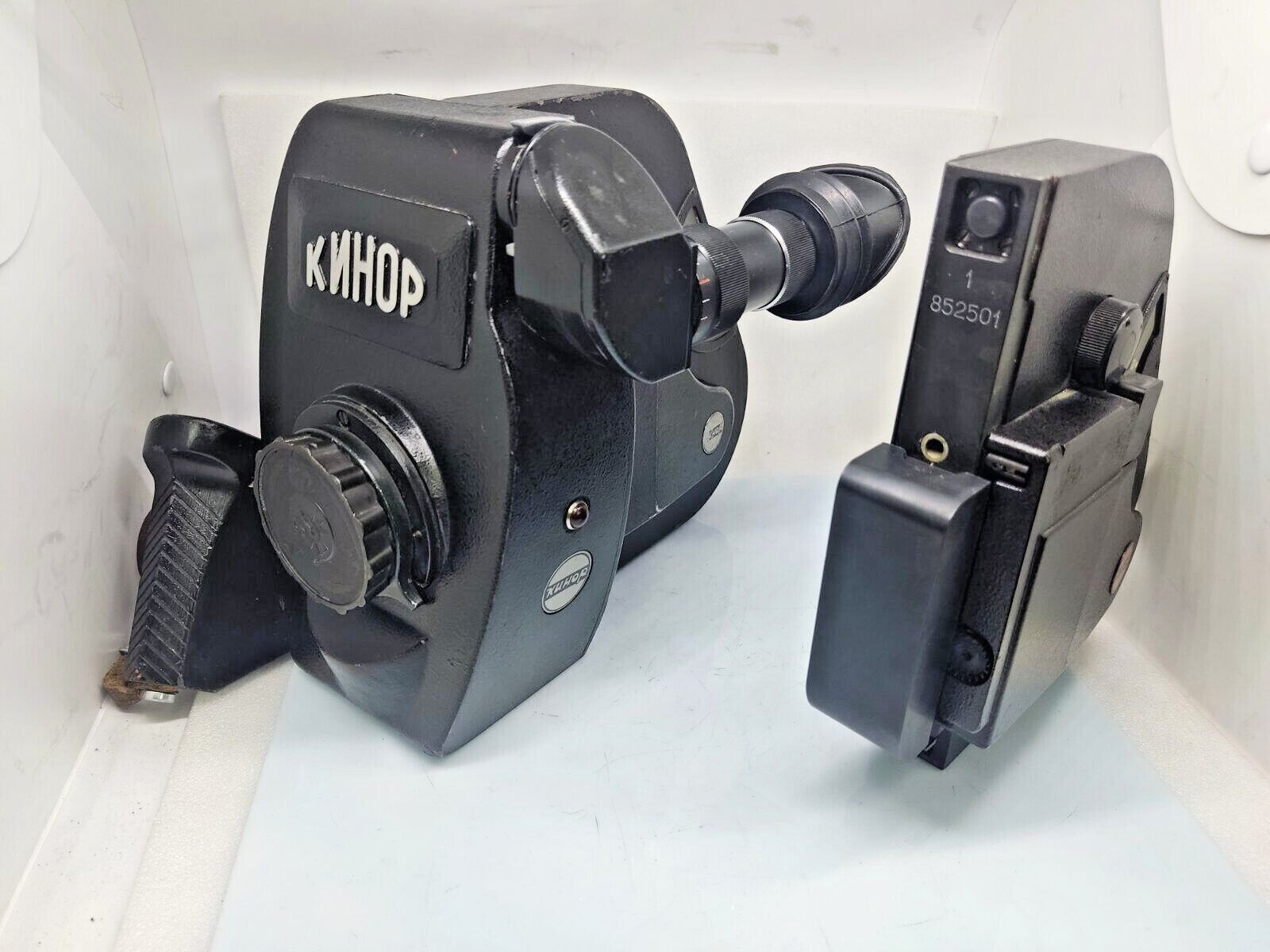

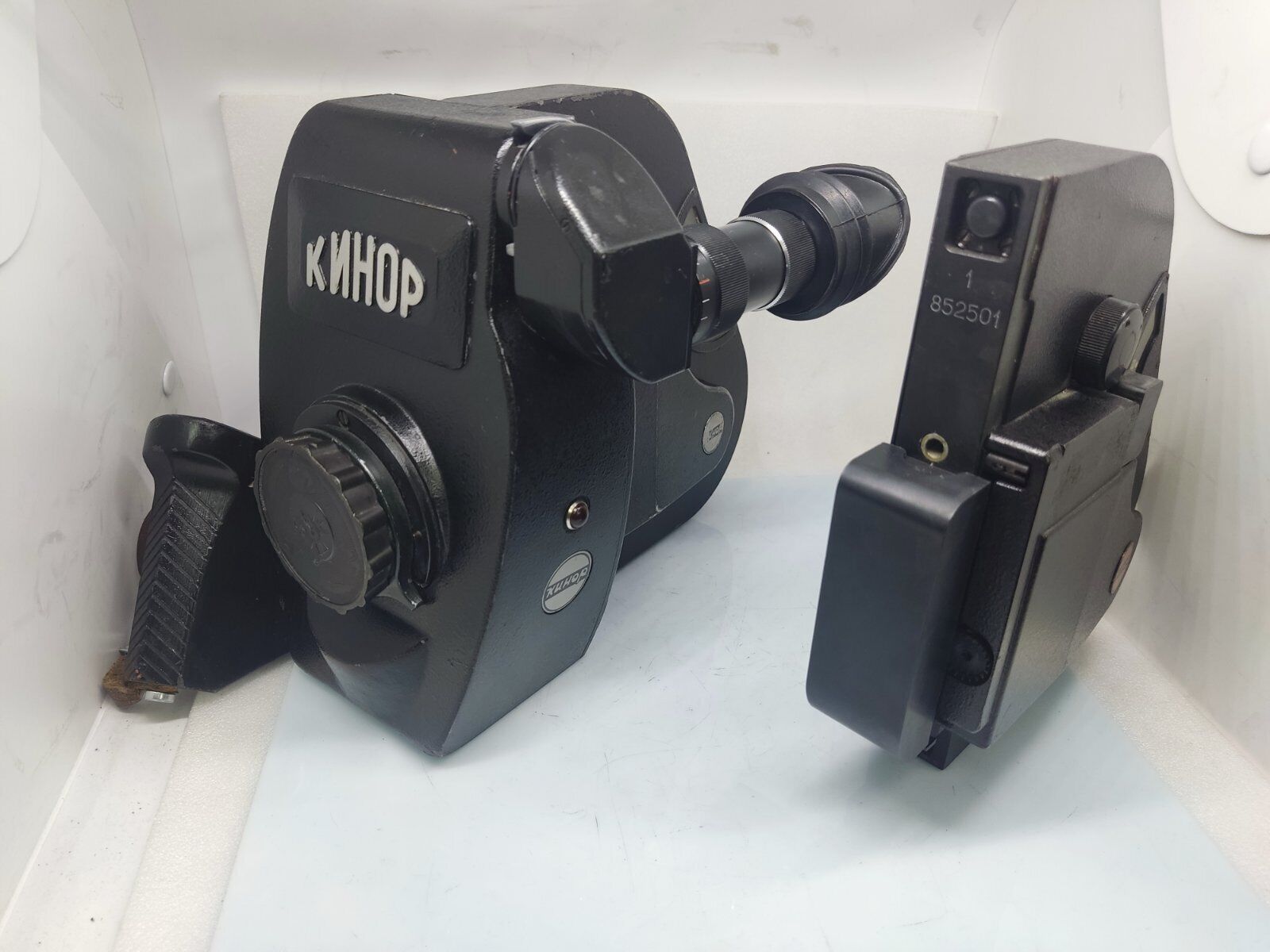

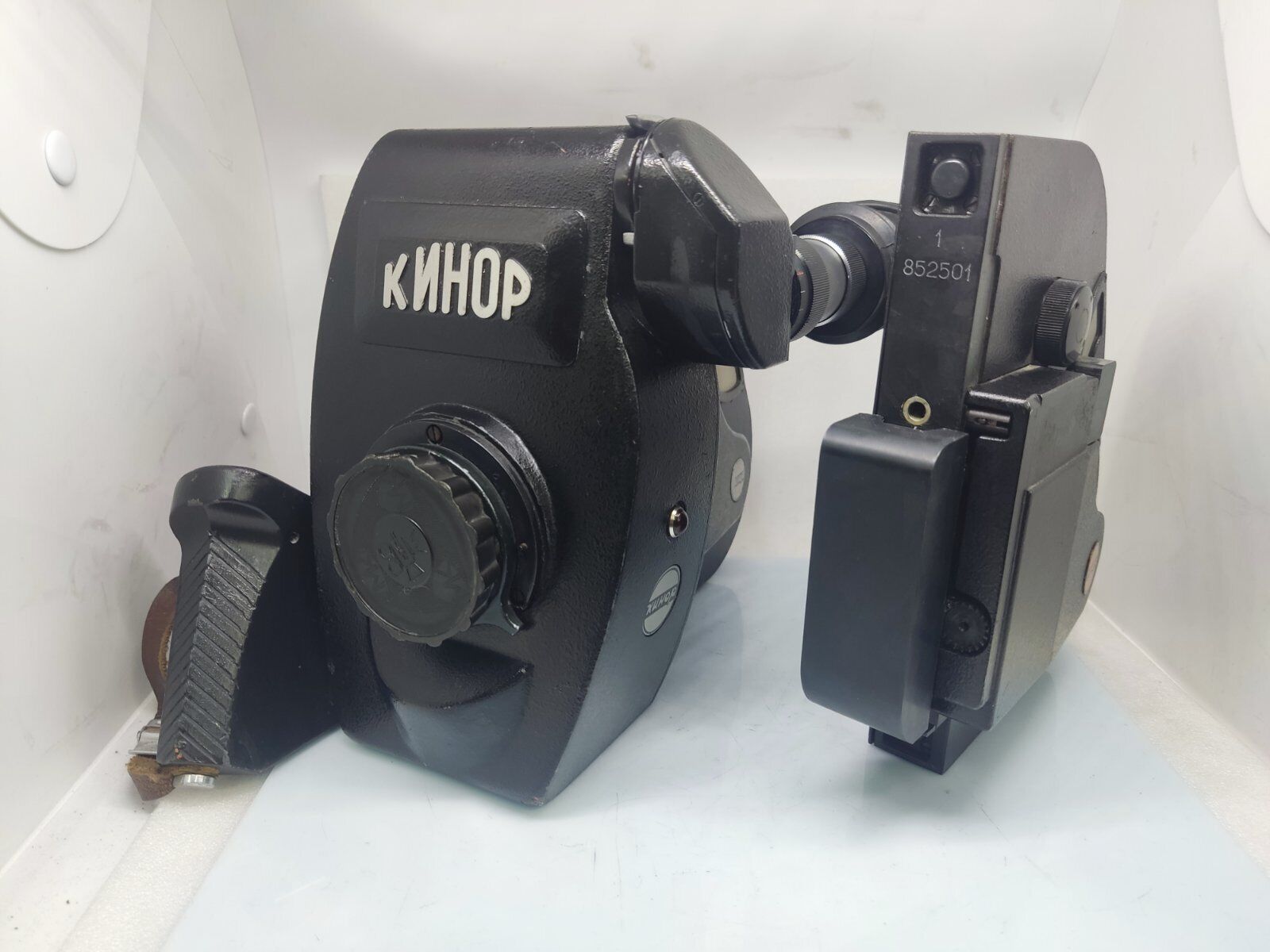

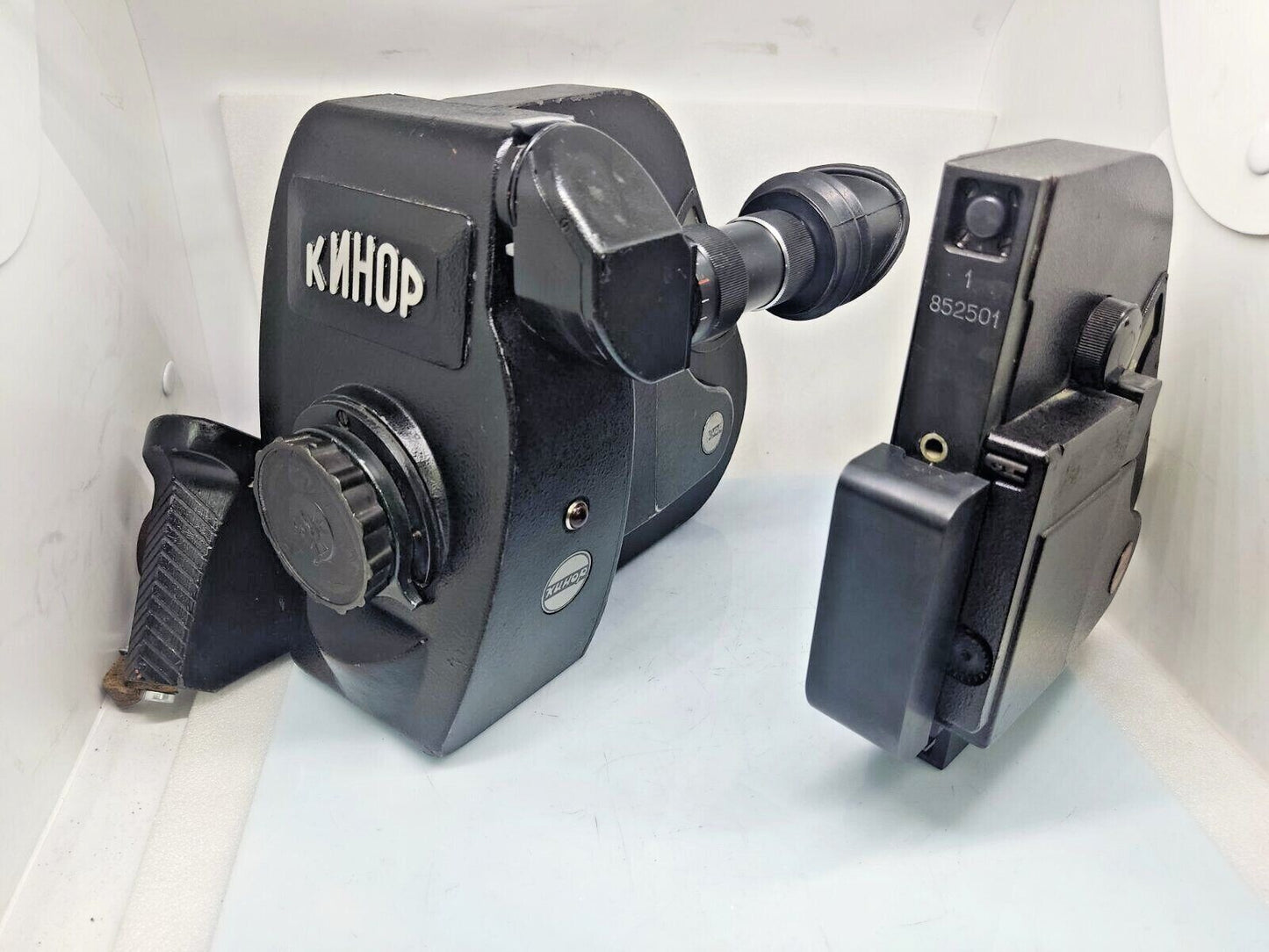

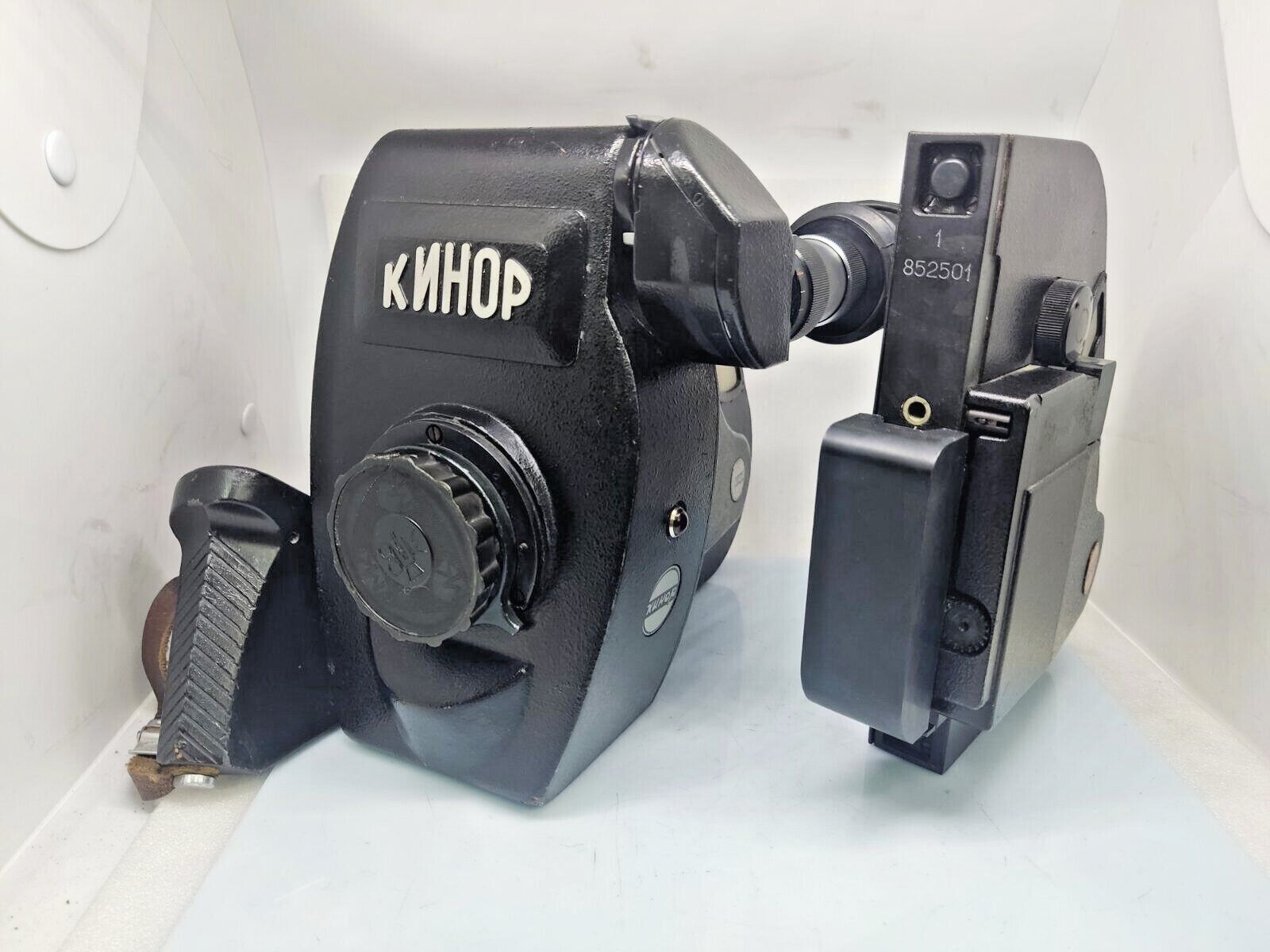

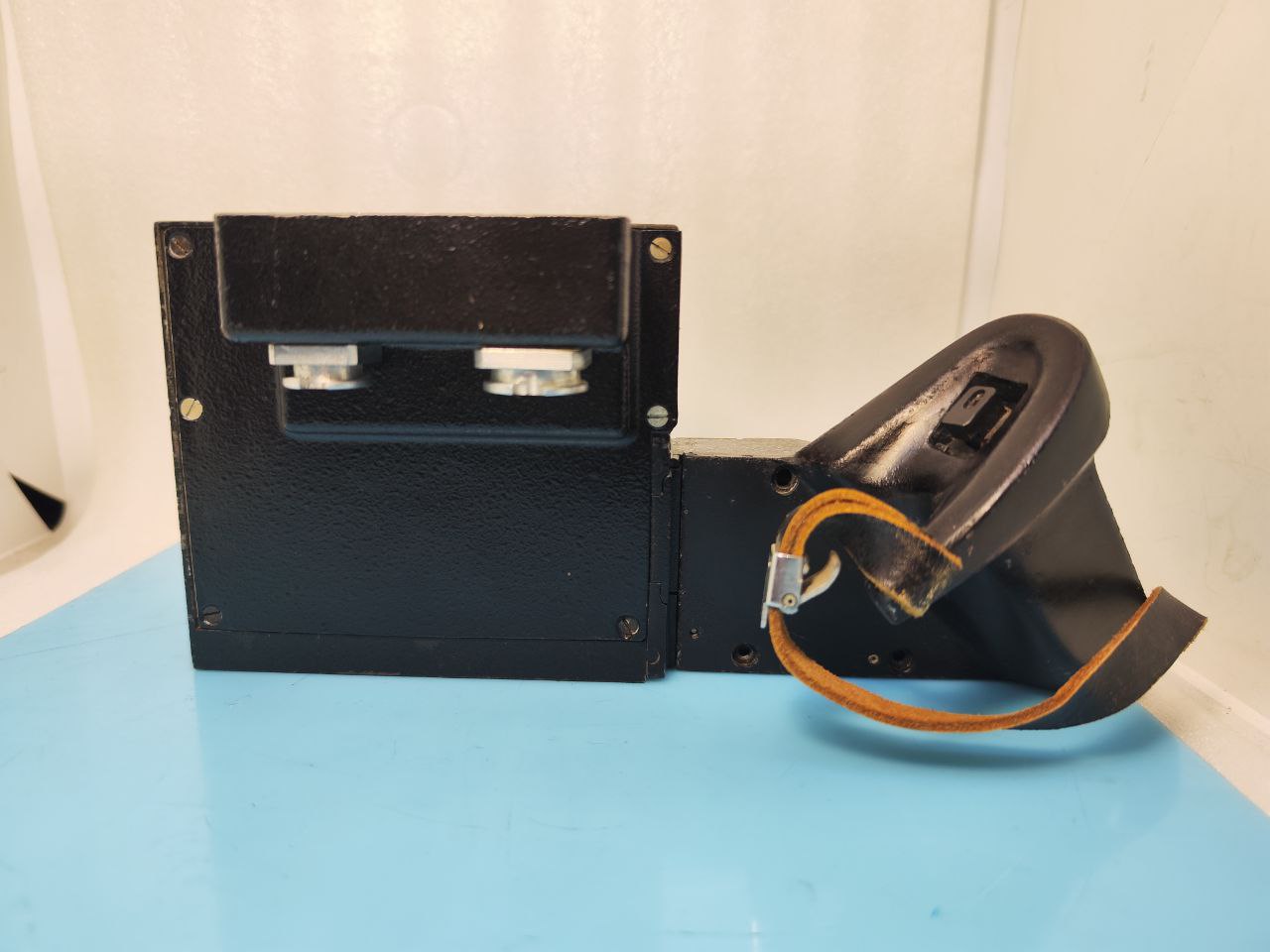

Film magazine - 30 m ( 100 ft ) and 120 m ( 400 ft)daylight attached film magazines.
Speed: 25 fps, 8-32 fps.
Motors: 10EP-16 APK crystal sync speed, 25 fps,
29EPSS analog speed stabilization, 25 fps.
Lenses - prime lenses 6 ...300 mm

Zoom lenses

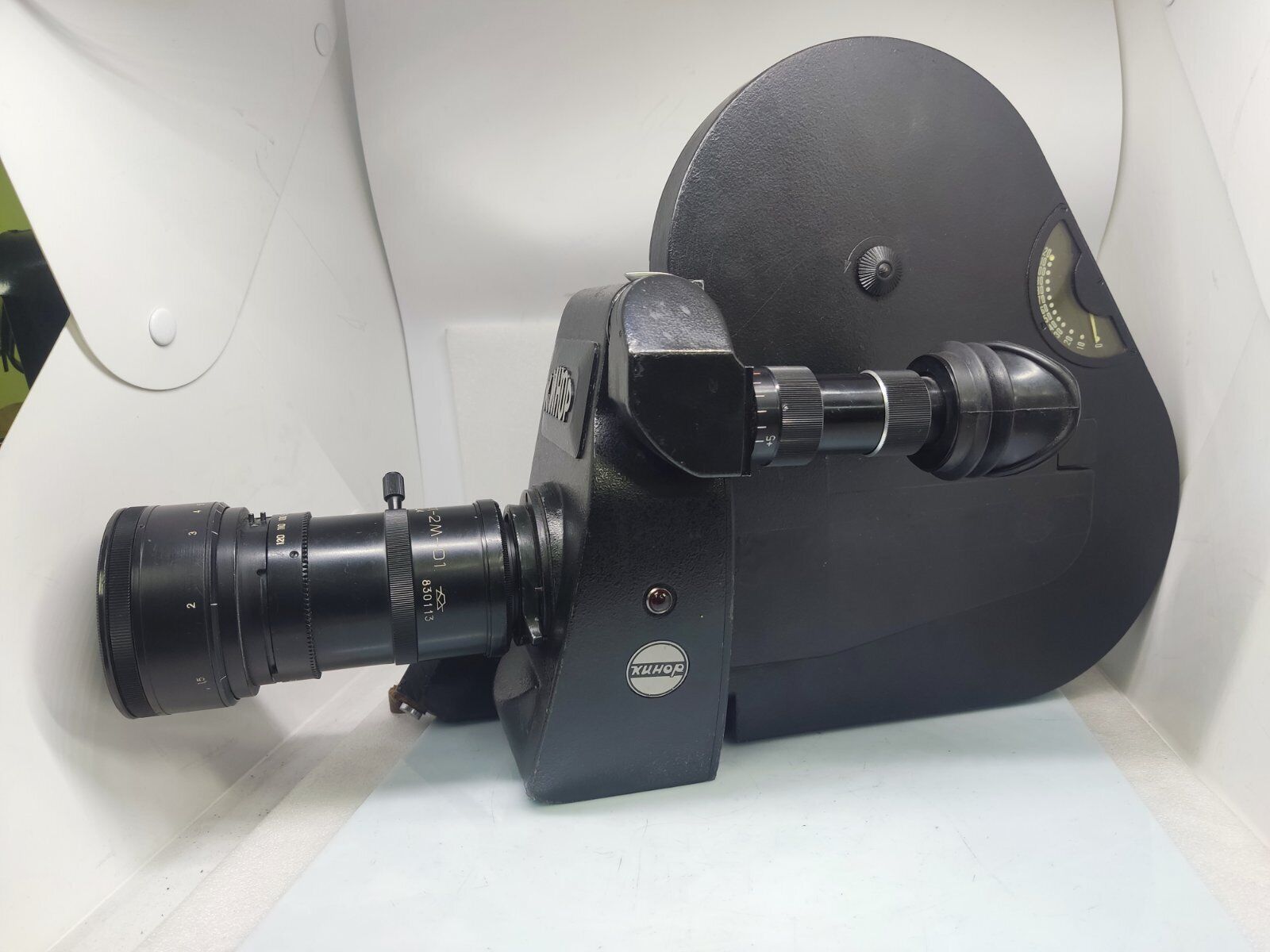

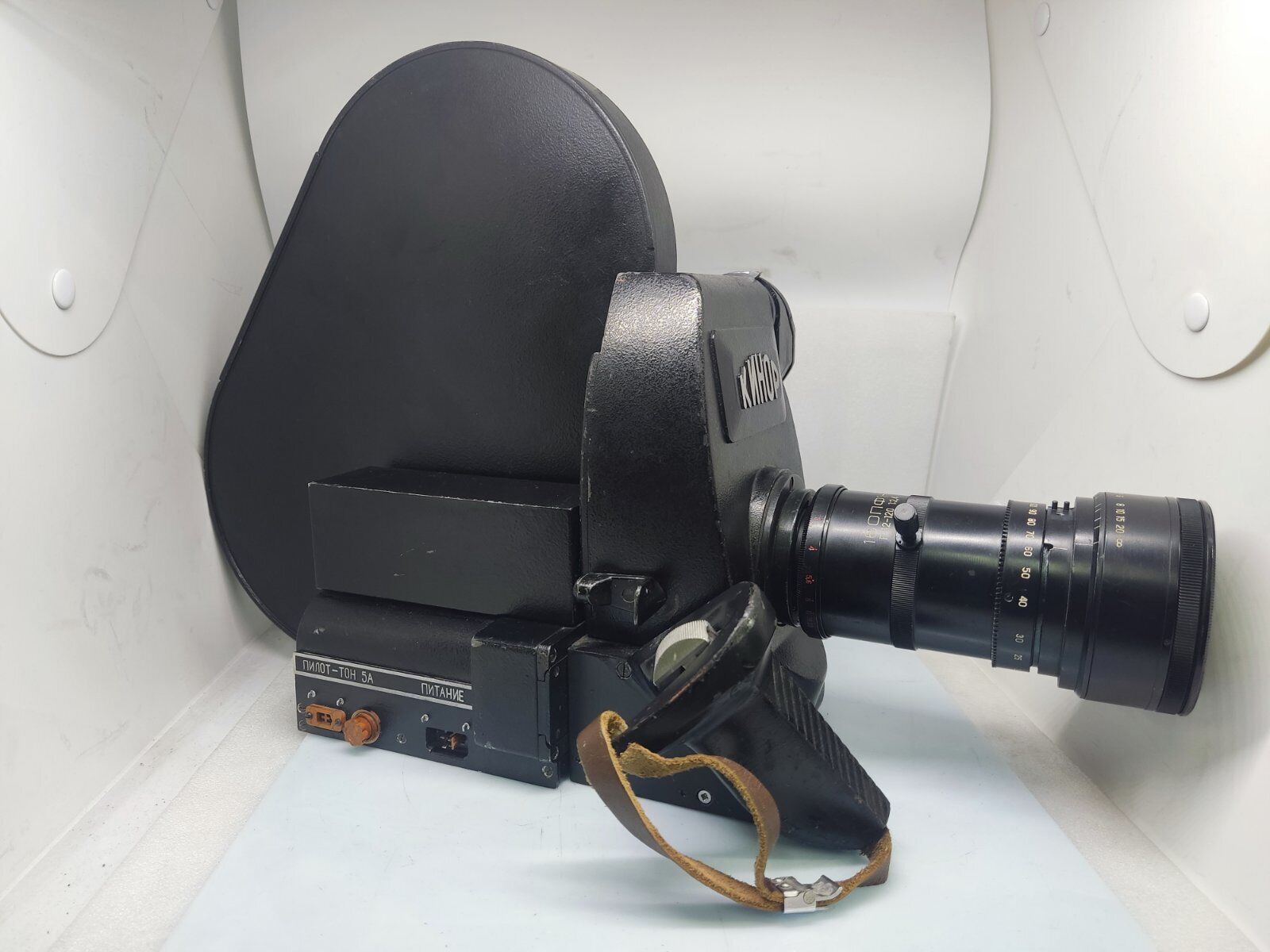

12-120 mm 16 OPF-1-2M ,
10-100 mm ( 12-120 mm with 0.75 front wide angle attachment )
10-100 mm 16 OPF-12-1
7,5-75 mm ( 10-100 mm with 0,75 front wide angle attachment ),

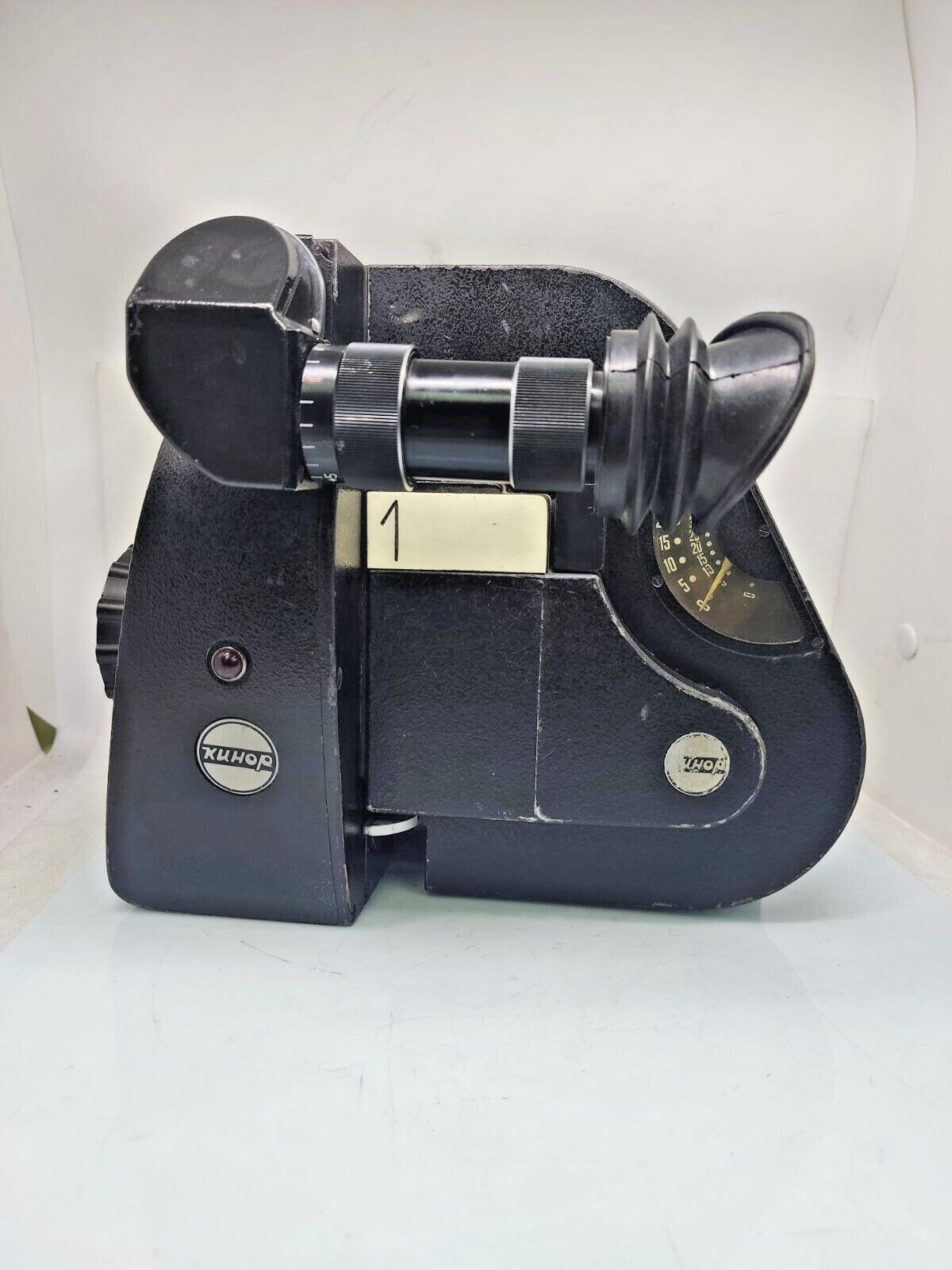

Viewfinder - reflex 9,5x
Noise - 42 Db
The maximum time of one take shooting - 10 minutes .
Size of camera with 29EPSS motor, 30 m film magazine and 10 mm lens 290x220x220mm
Weight, of camera with 29EPSS motor, 30 m film magazine and 10 mm lens - 4,7 kg
Work temperature of air - from -25C up to + 40C.

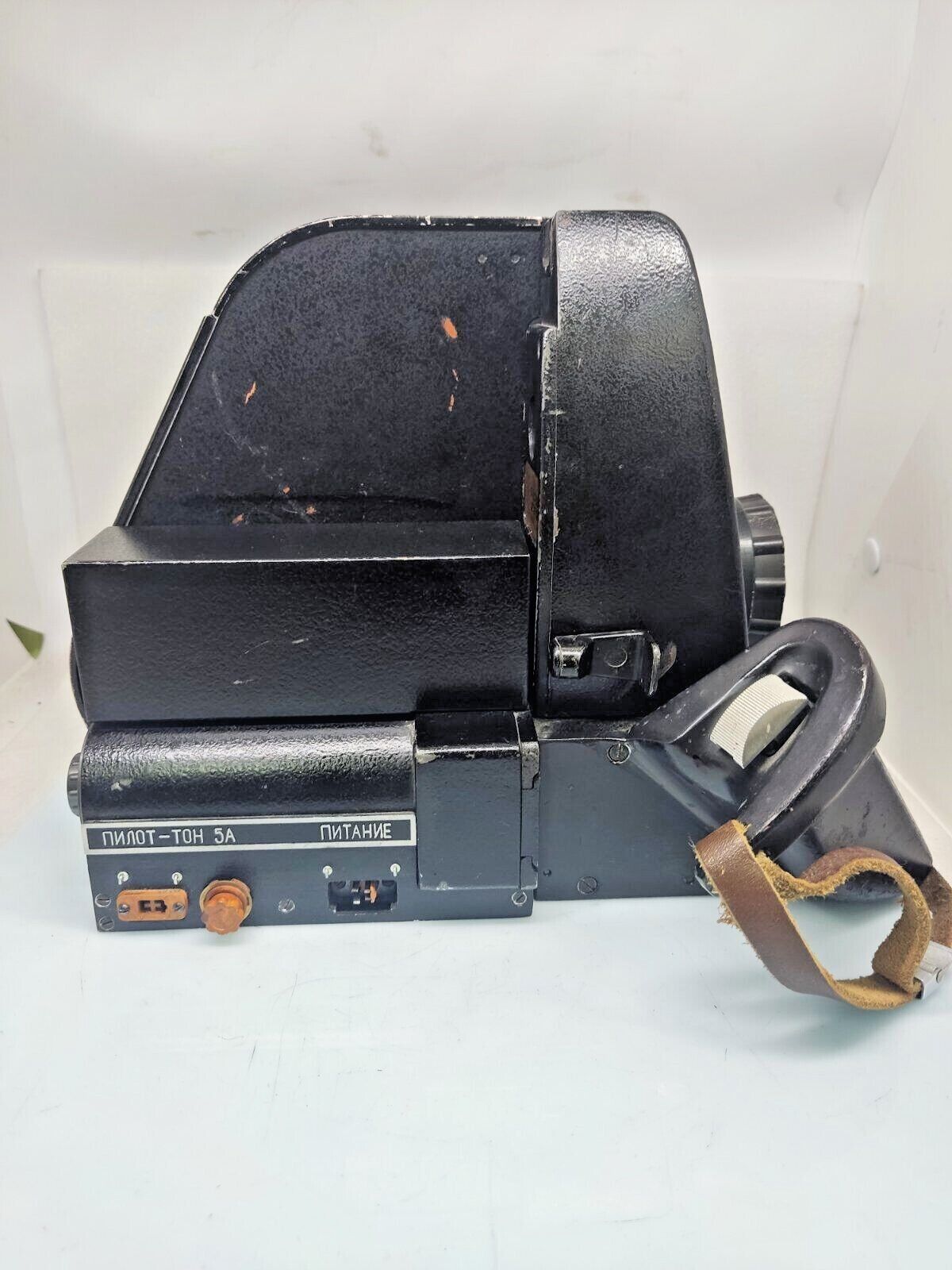

29EPSS electrical motor of Kinor-16 camera have analog system of speed control. Speed - 1500 revo, 25 fps, +/- 2,0%
Output torque - 200-1000 gramme-centimetre,
Power source - Battery 12 v (+2,4/-1,2v)
Maximum current with torque 500 g-cm --4,5A
Noise - 35 Db,
Signal of control of start-stop bulb near film gate 8-12 v,
Output Start pulse - 8-12v,
Output Pilot tone signal 1.5v on 150ohm.
Size 252 x 102x145 mm
Weight 2,5 kg
