Kiev-88 Arsenal Arax Arsat

TTL Prism Waist-level finder Kiev-88 Kiev-60 Kiev-6C Pentacon Six TL Hasselblad Mamiya C3 C330

TTL Prism Waist-level finder Kiev-88 Kiev-60 Kiev-6C Pentacon Six TL Hasselblad Mamiya C3 C330

$80.00 USD
$85.00 USD $80.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
variations
TTL Prism finder, Waist-level finder for
Kiev-88 Kiev-60 Kiev-6C Pentacon Six TL
ARAX Hartblei Hasselblad

Variants 1, 2, 3 and 4 also fit for the following cameras (certain models):
HASSELBLAD, ARAX, KIEV-88, KIEV-88CM, KIEV-80, KIEV-688, KIEV-SIX, Zenith-80, Salyut, Salut-C, Hartblei, B.I.G-SIX, Kiev-USA, Revue 6x6.

Variants 1, 2, 3 and 4 also also fit Mamiya C3 and Mamiya C330  cameras with adapter(variant 12 and 13).

Variants 5, 6 and 7 also fit Pentacon Six TL cameras with adapter(variant 8).

Variants:

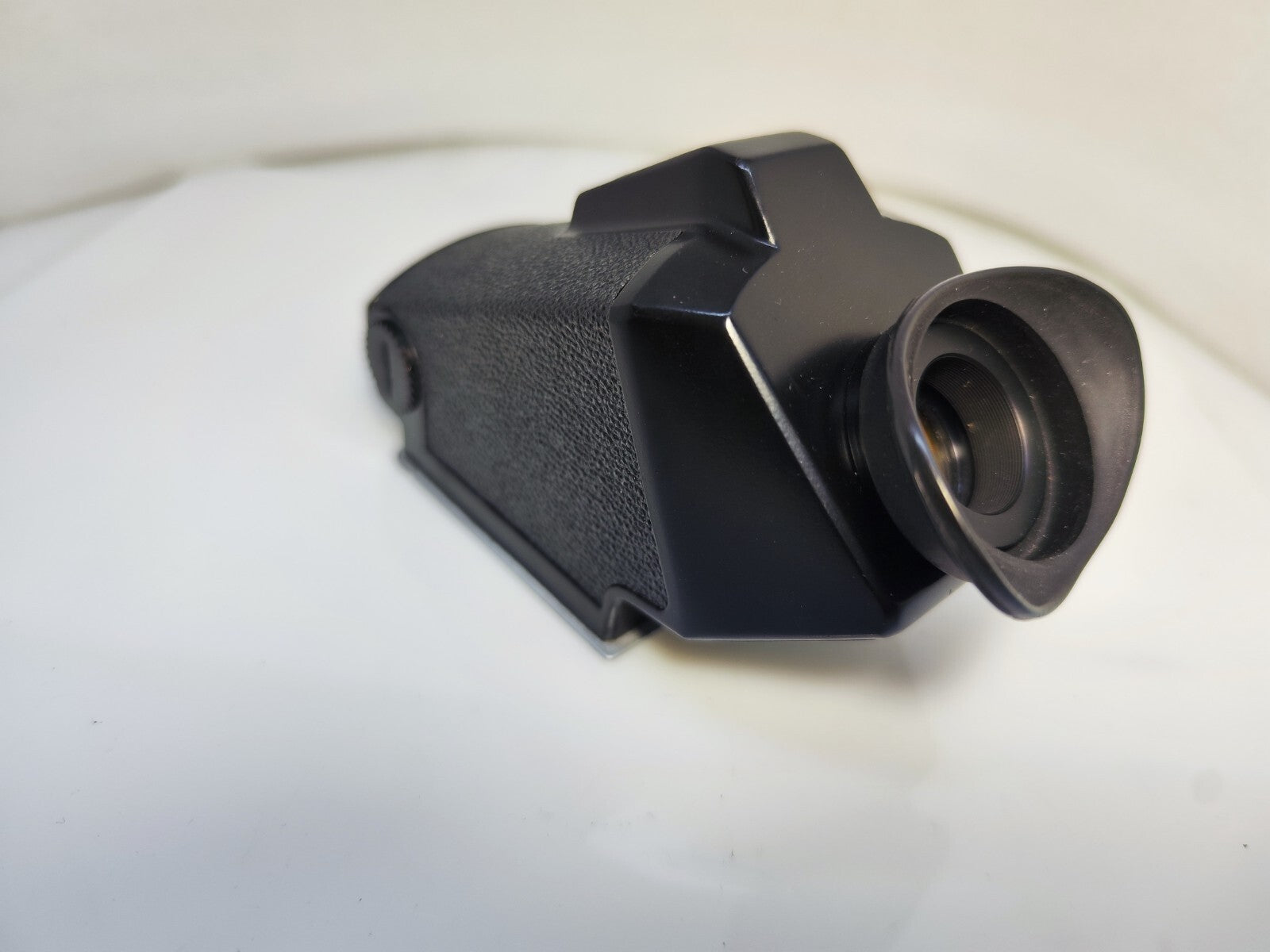

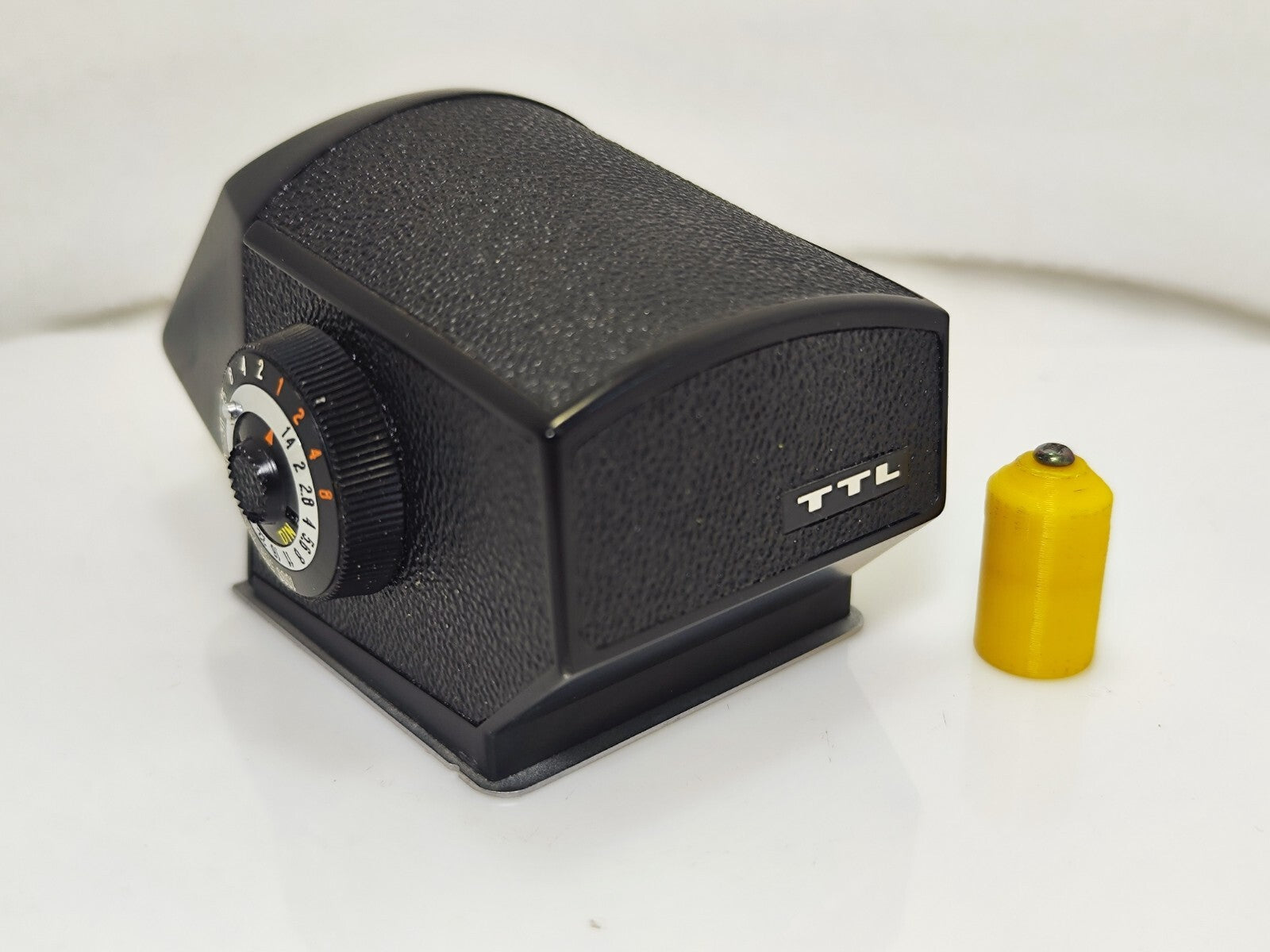

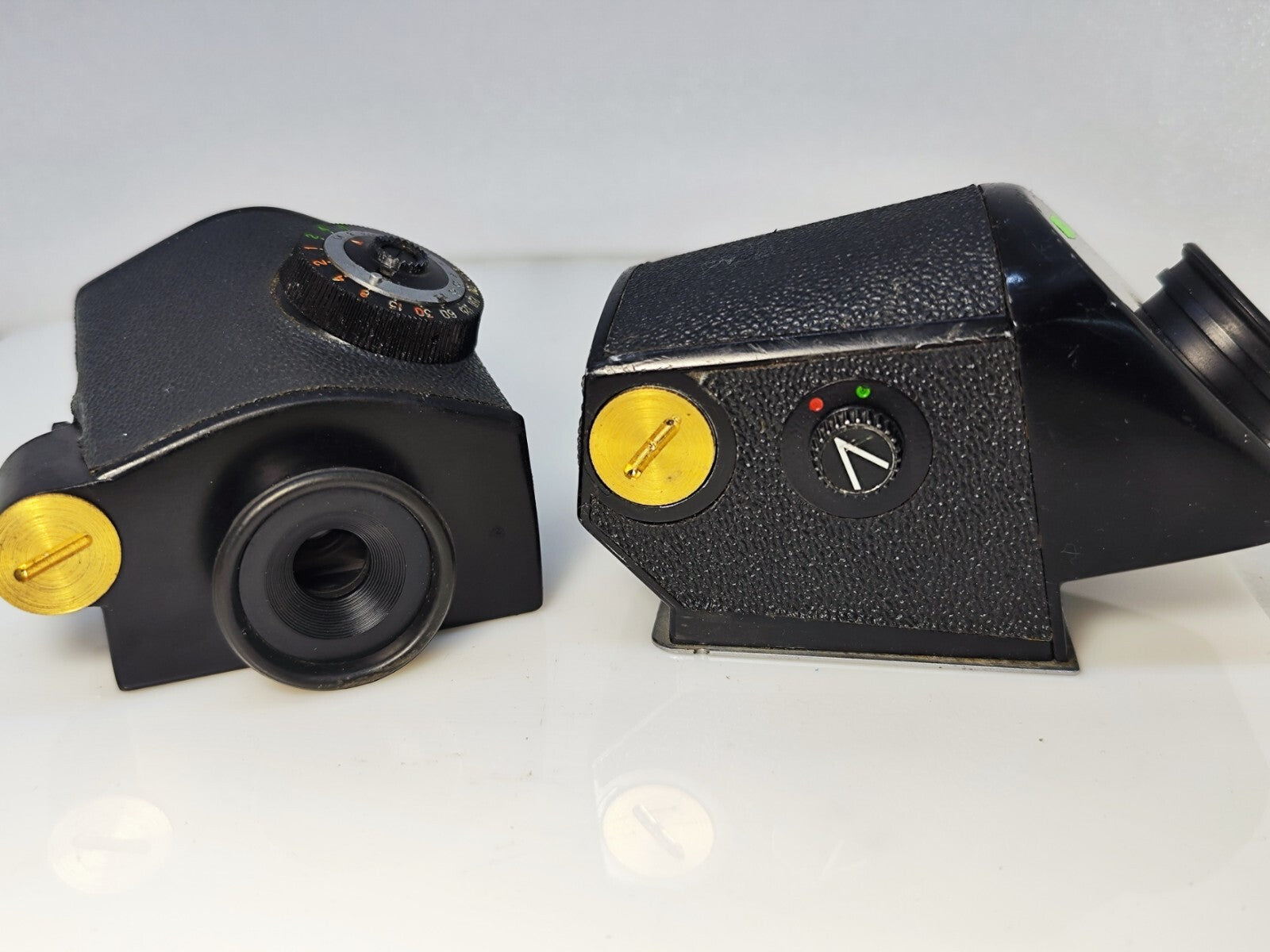

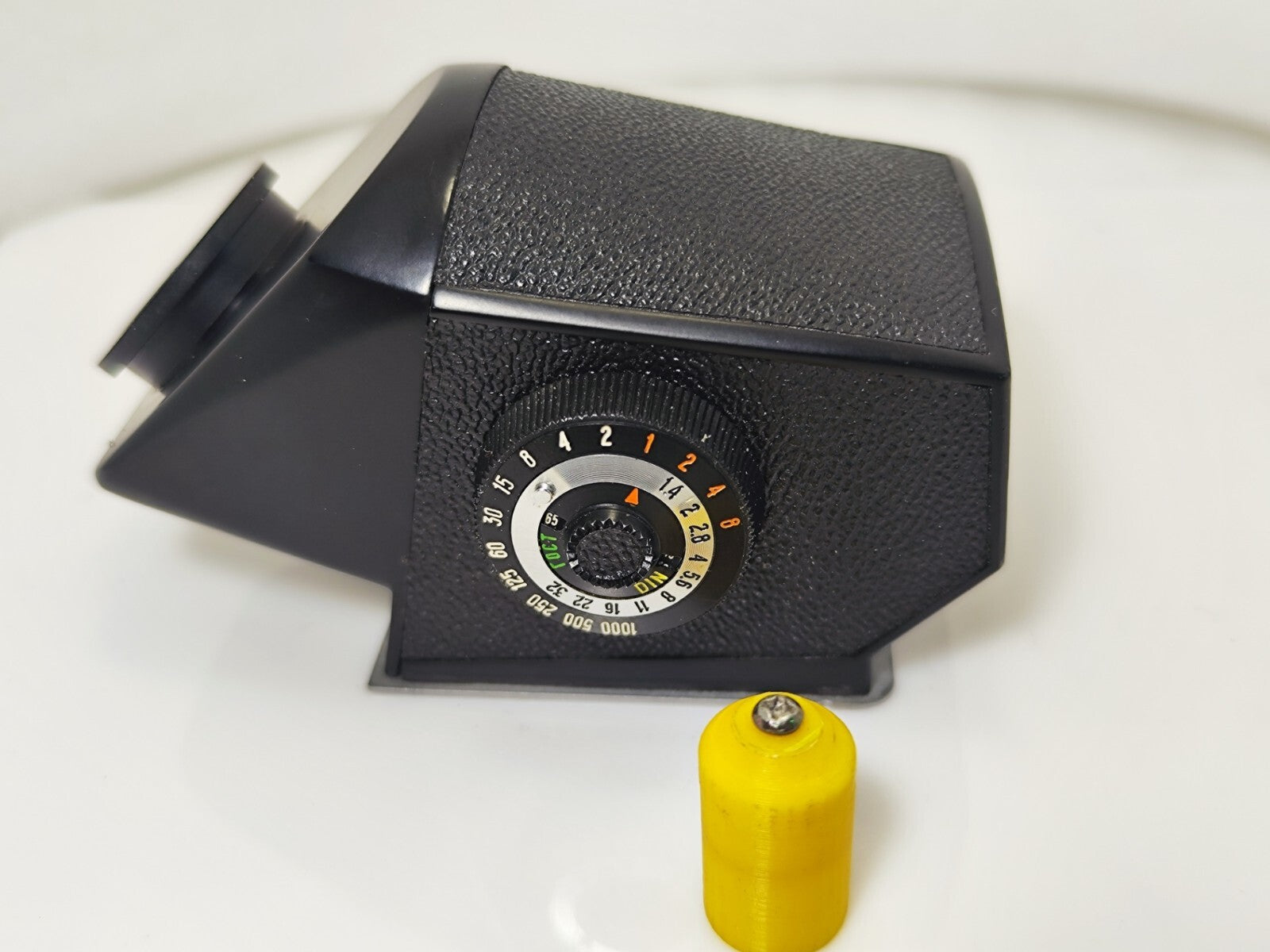

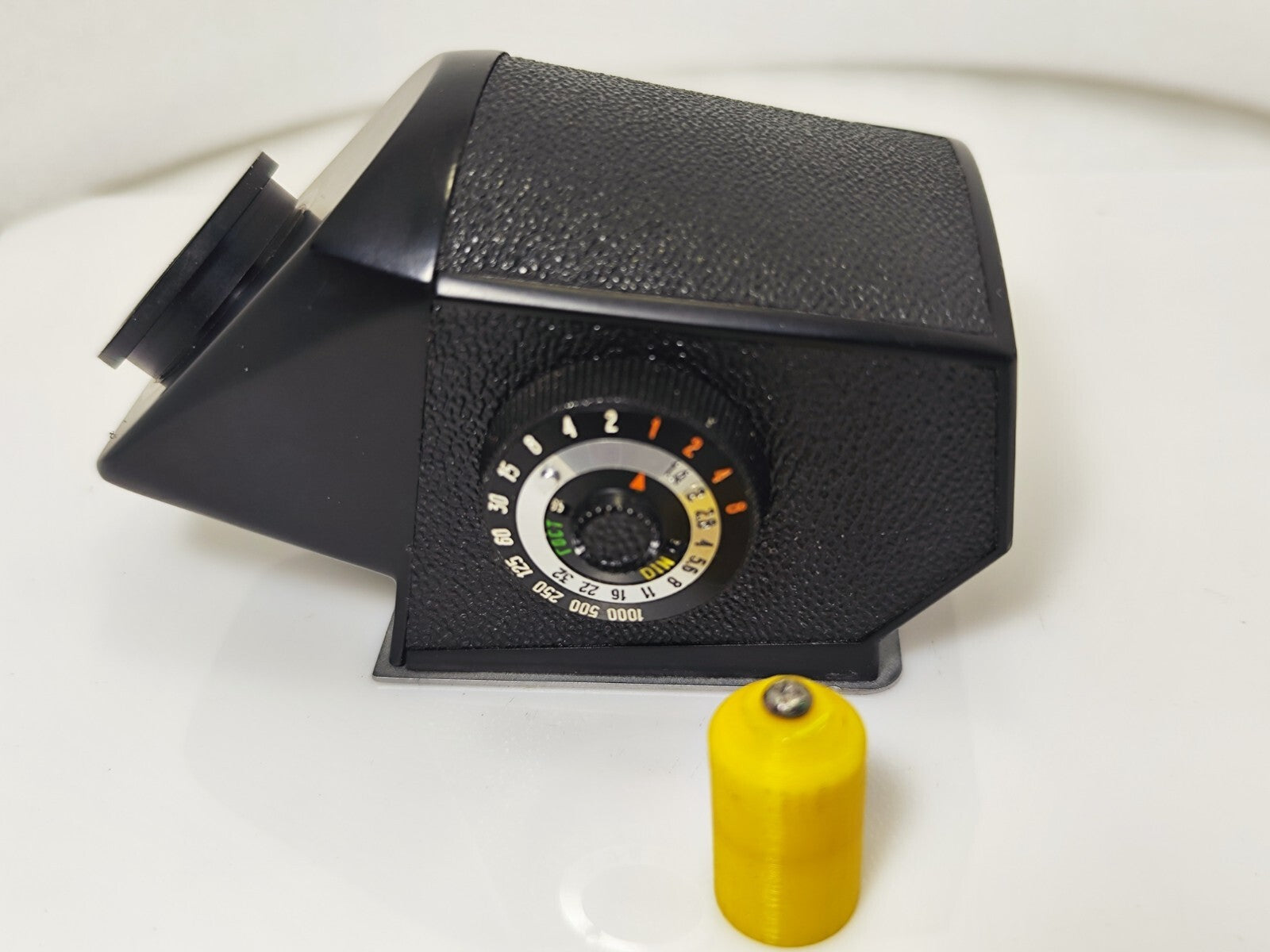

  1. Kiev-88 TTL prism finder + battery adapter as gift.

  2. Kiev-88 Spot TTL prism finder. NT New Type. 3x optical magnification.

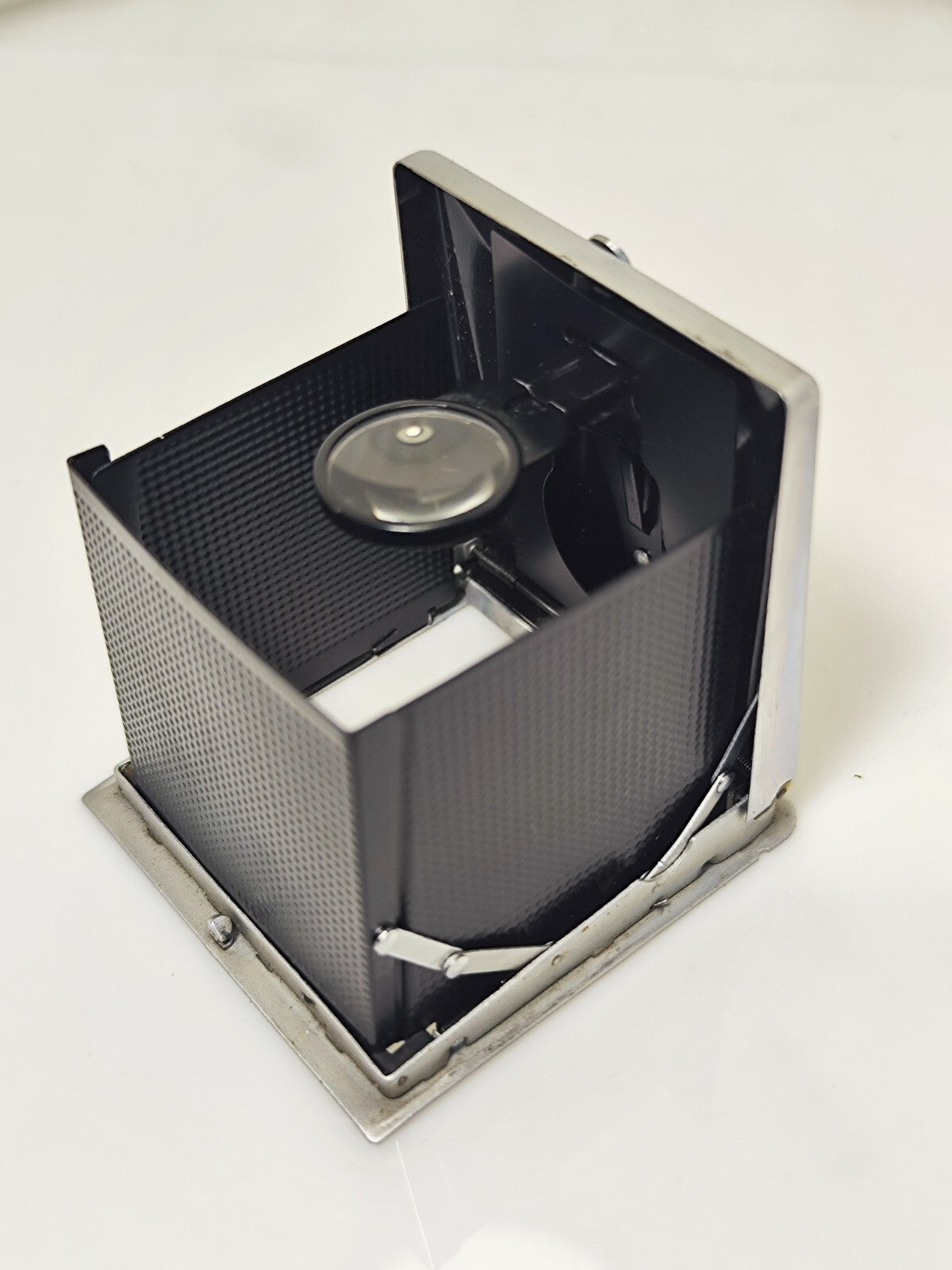

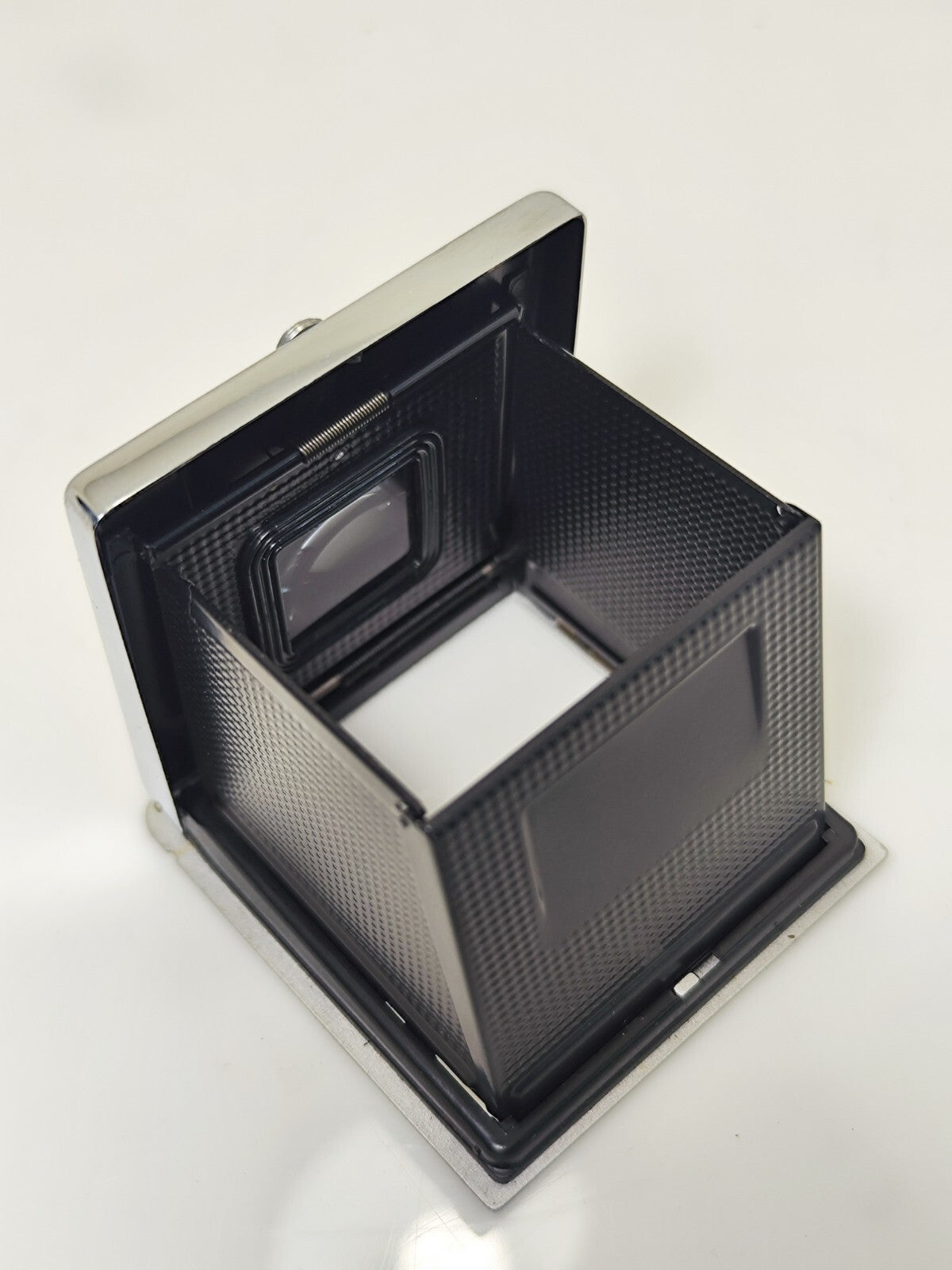

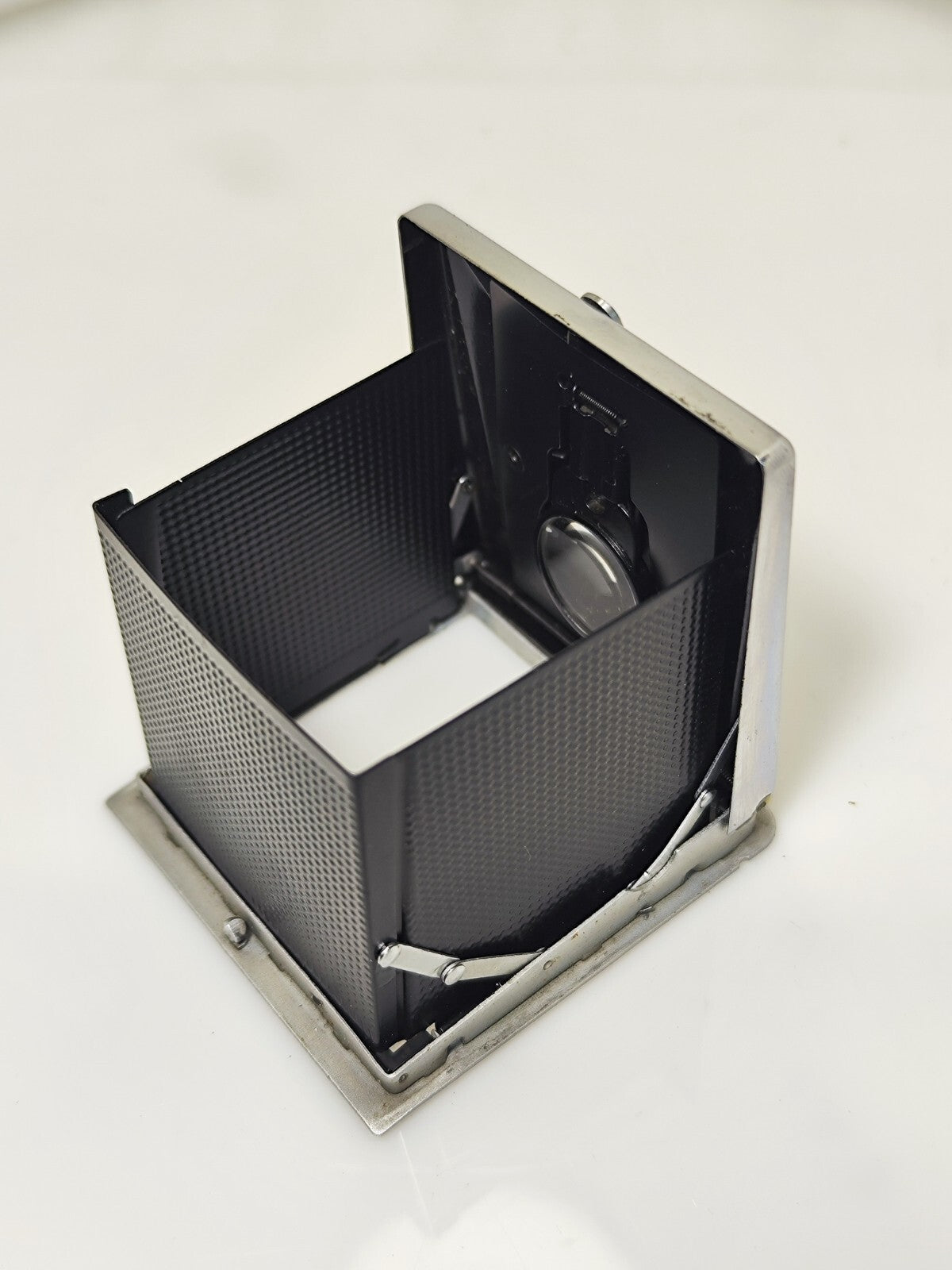

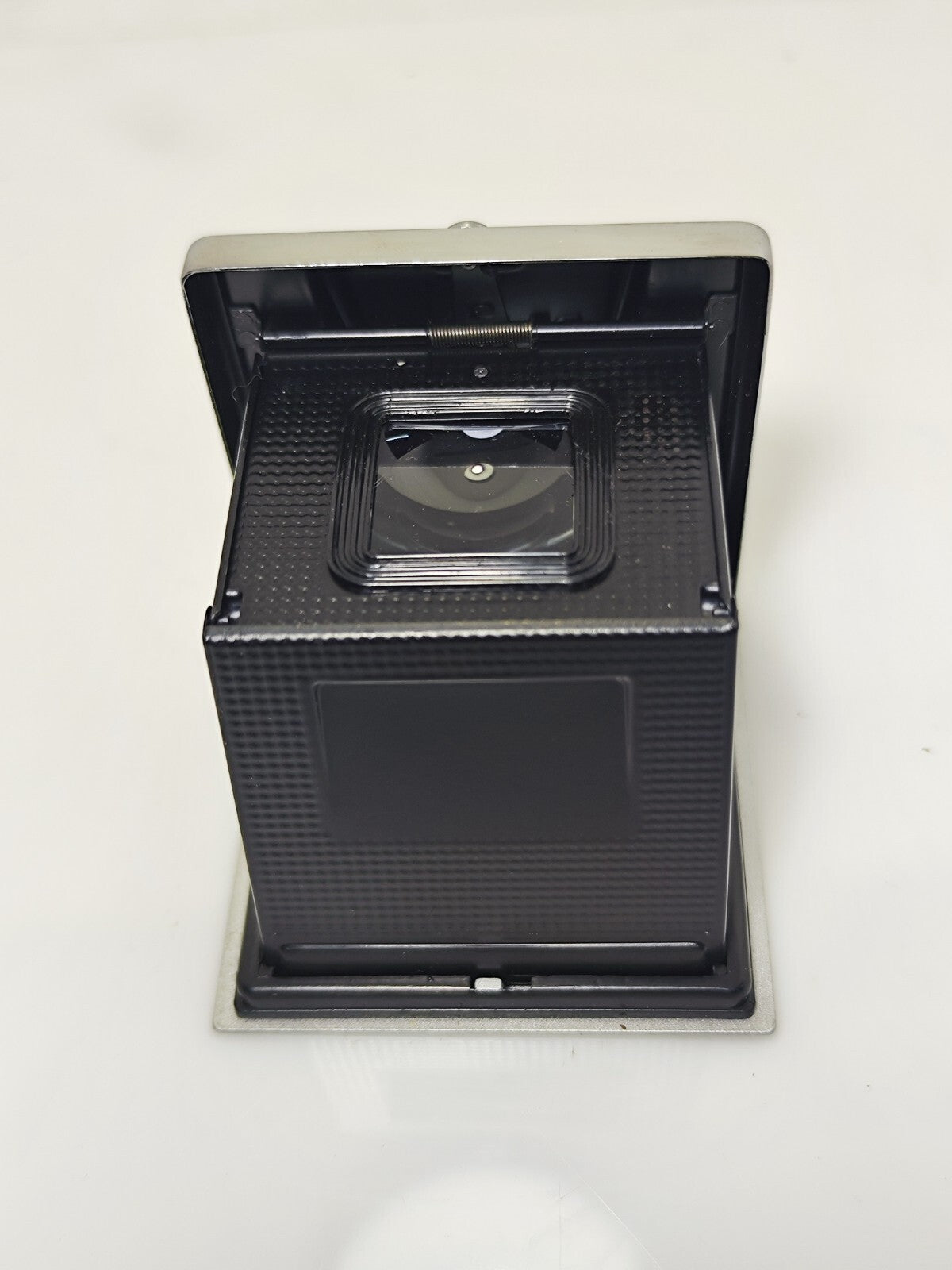

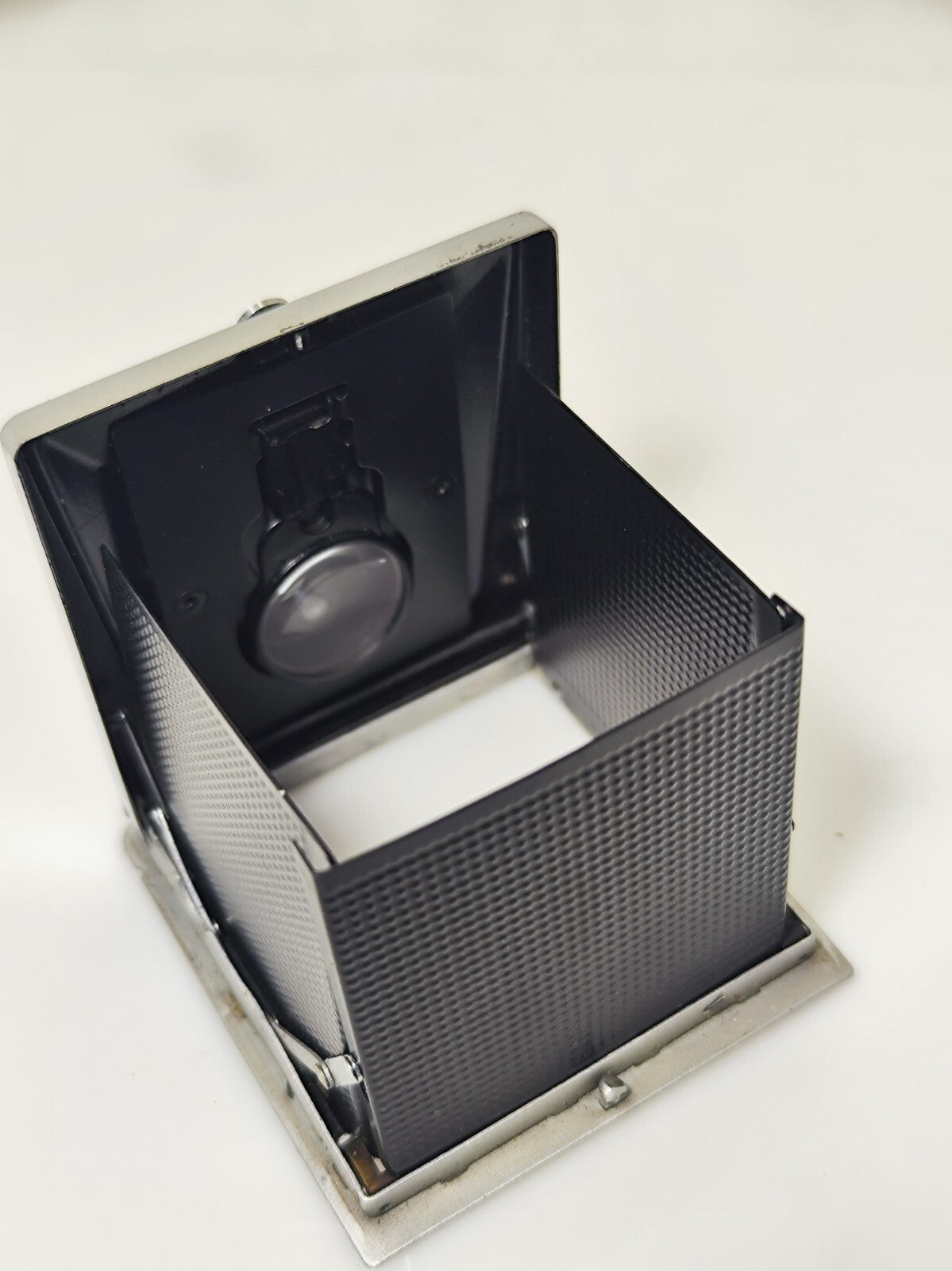

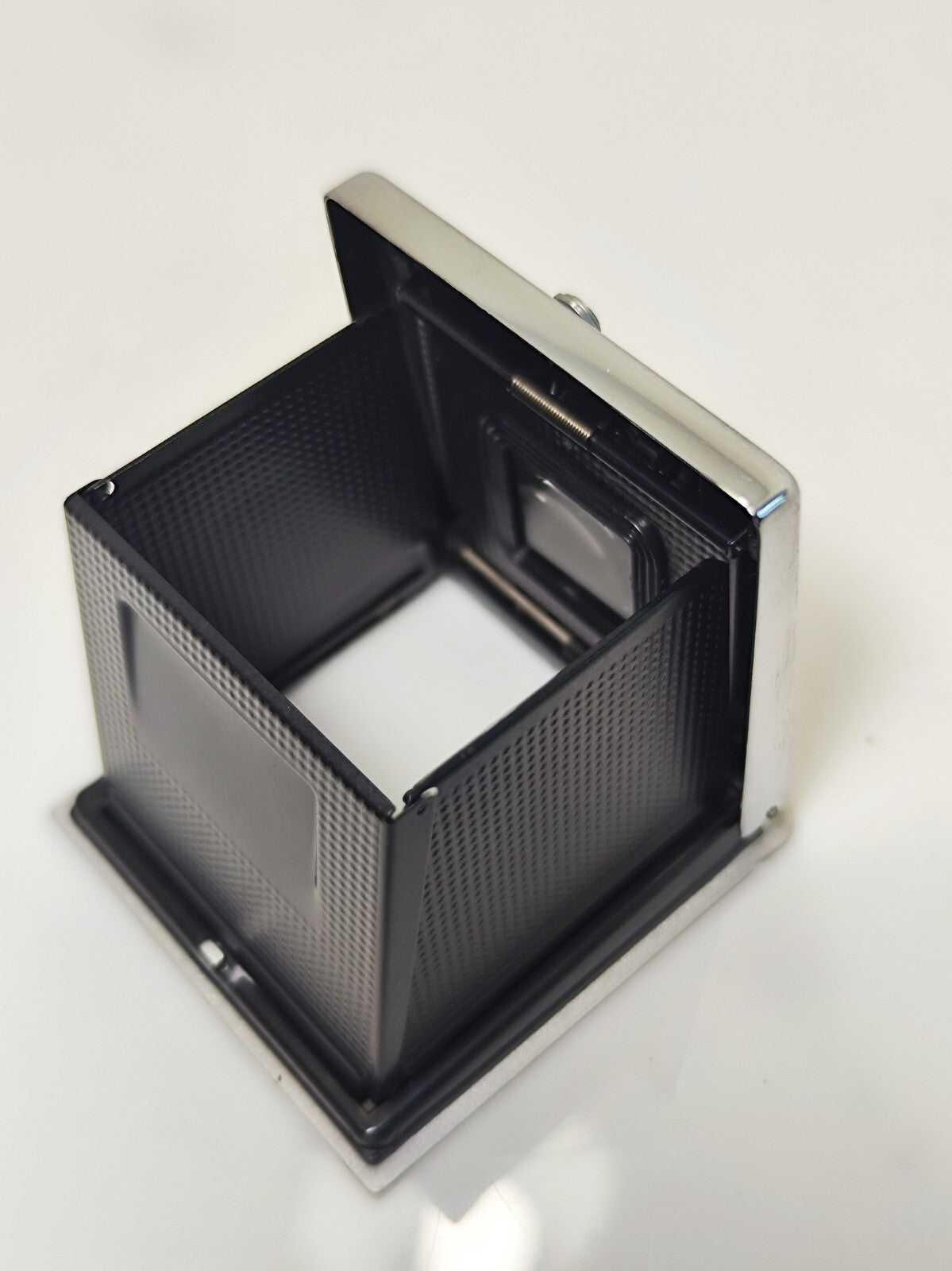

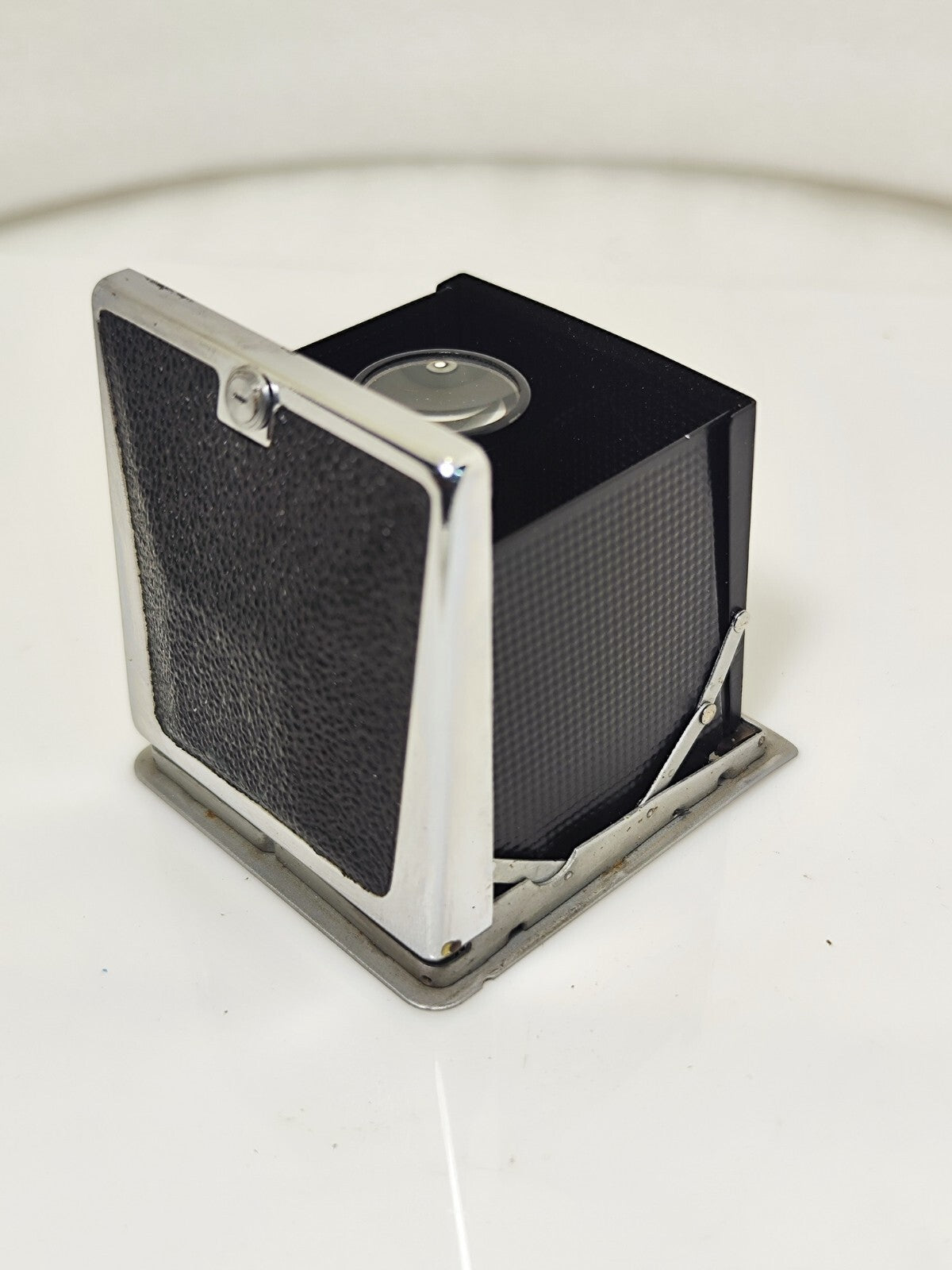

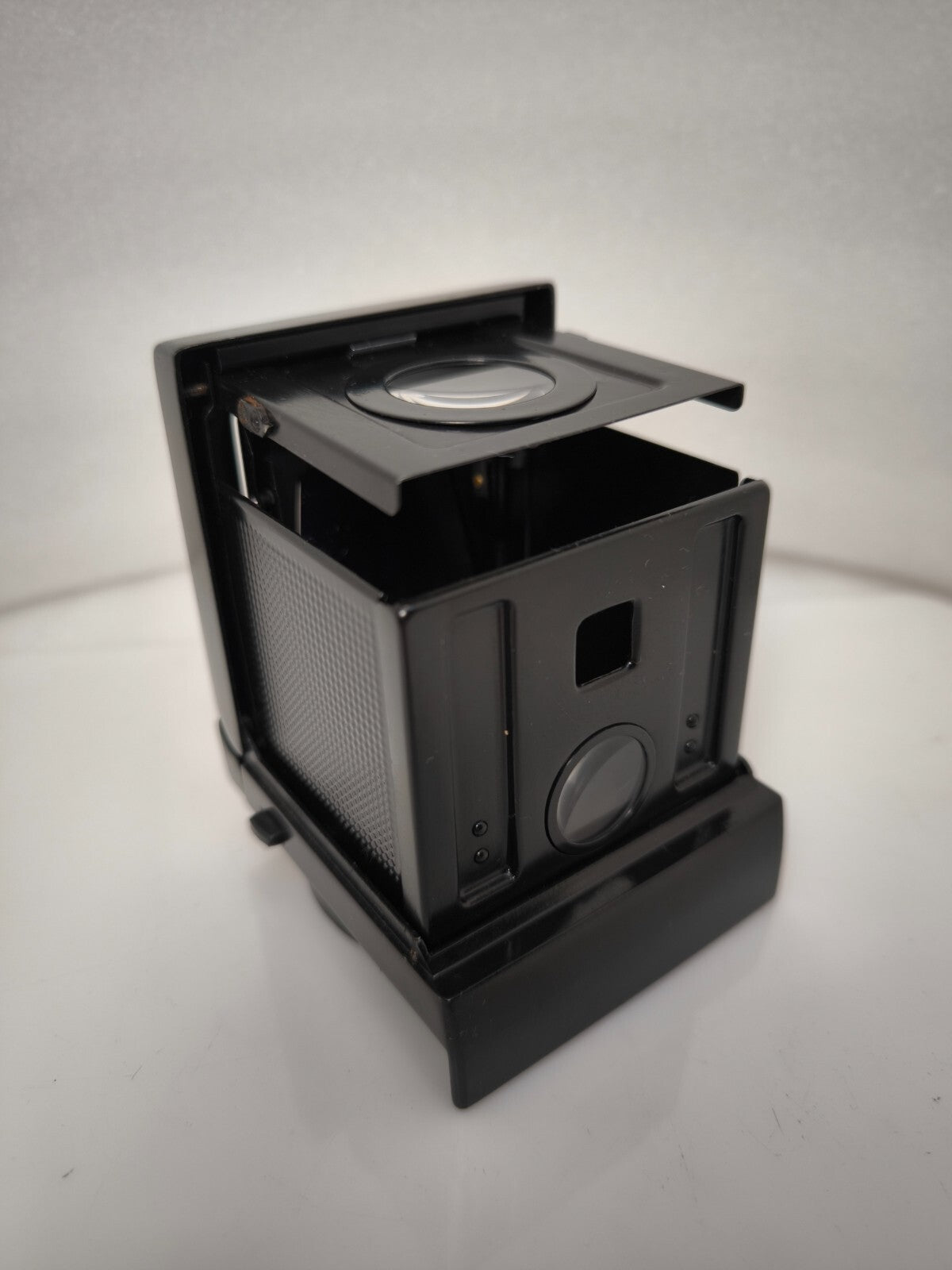

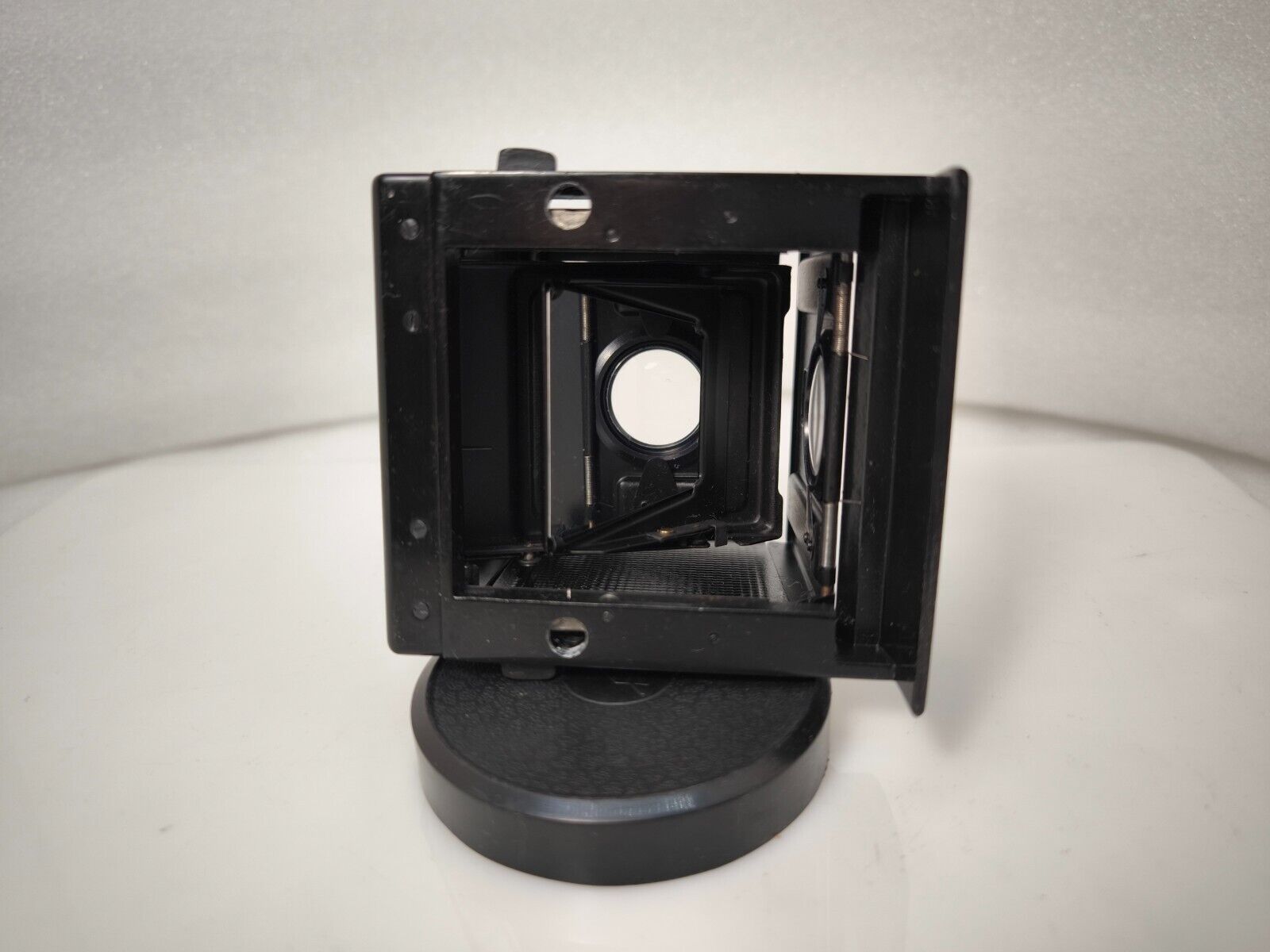

  3. Kiev-88 waist level finder old style. 3x optical magnification. WLF.

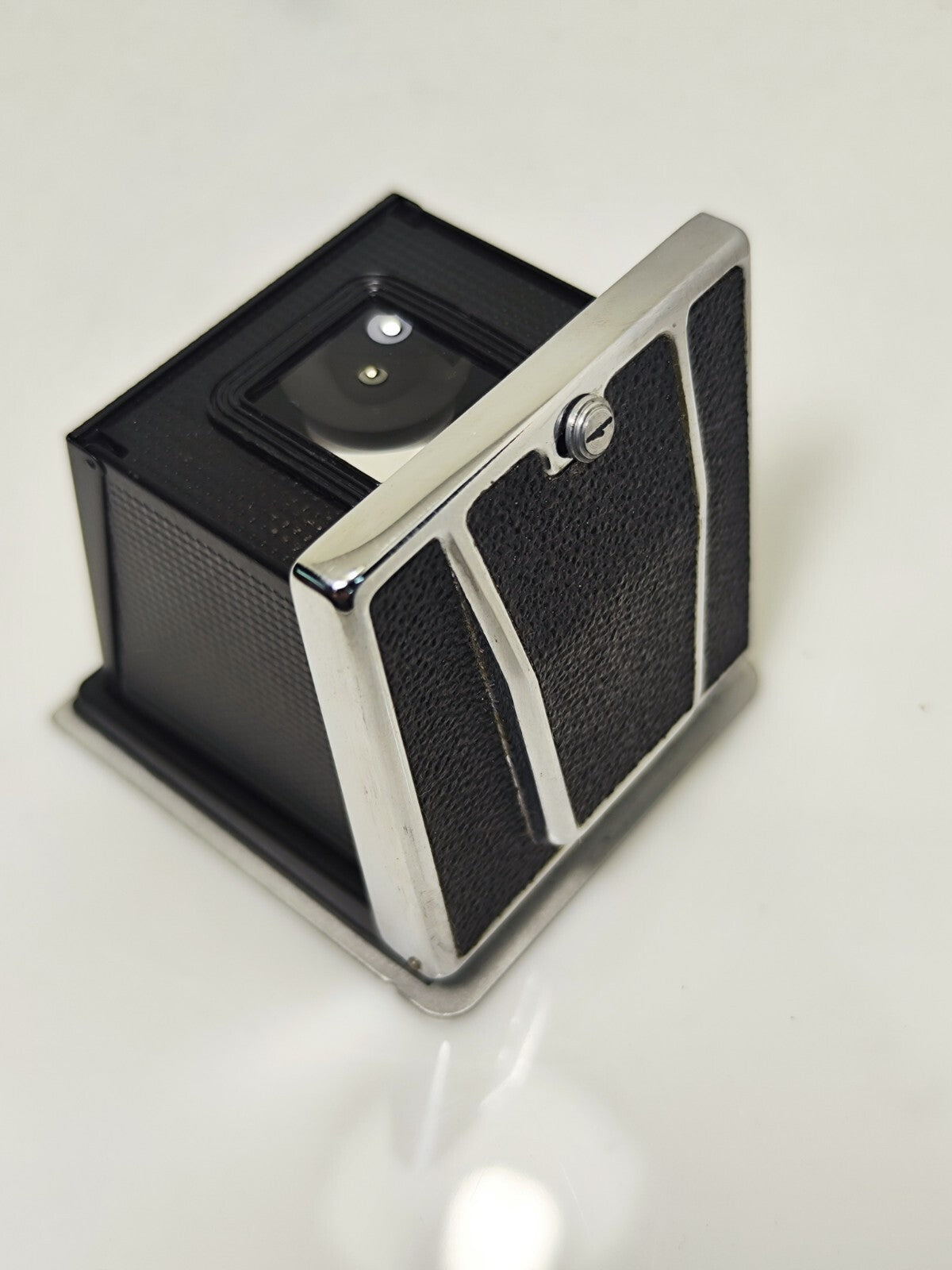

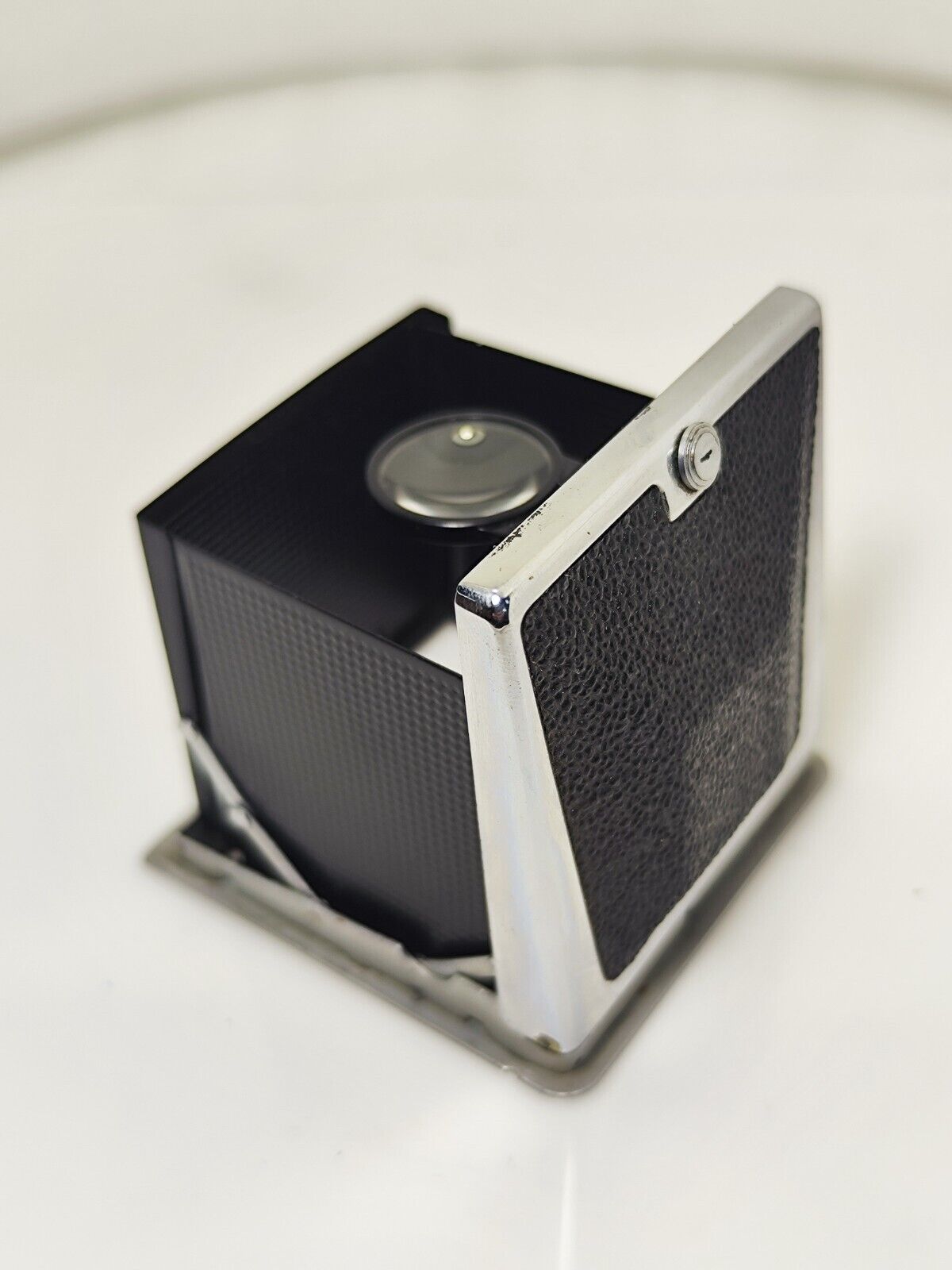

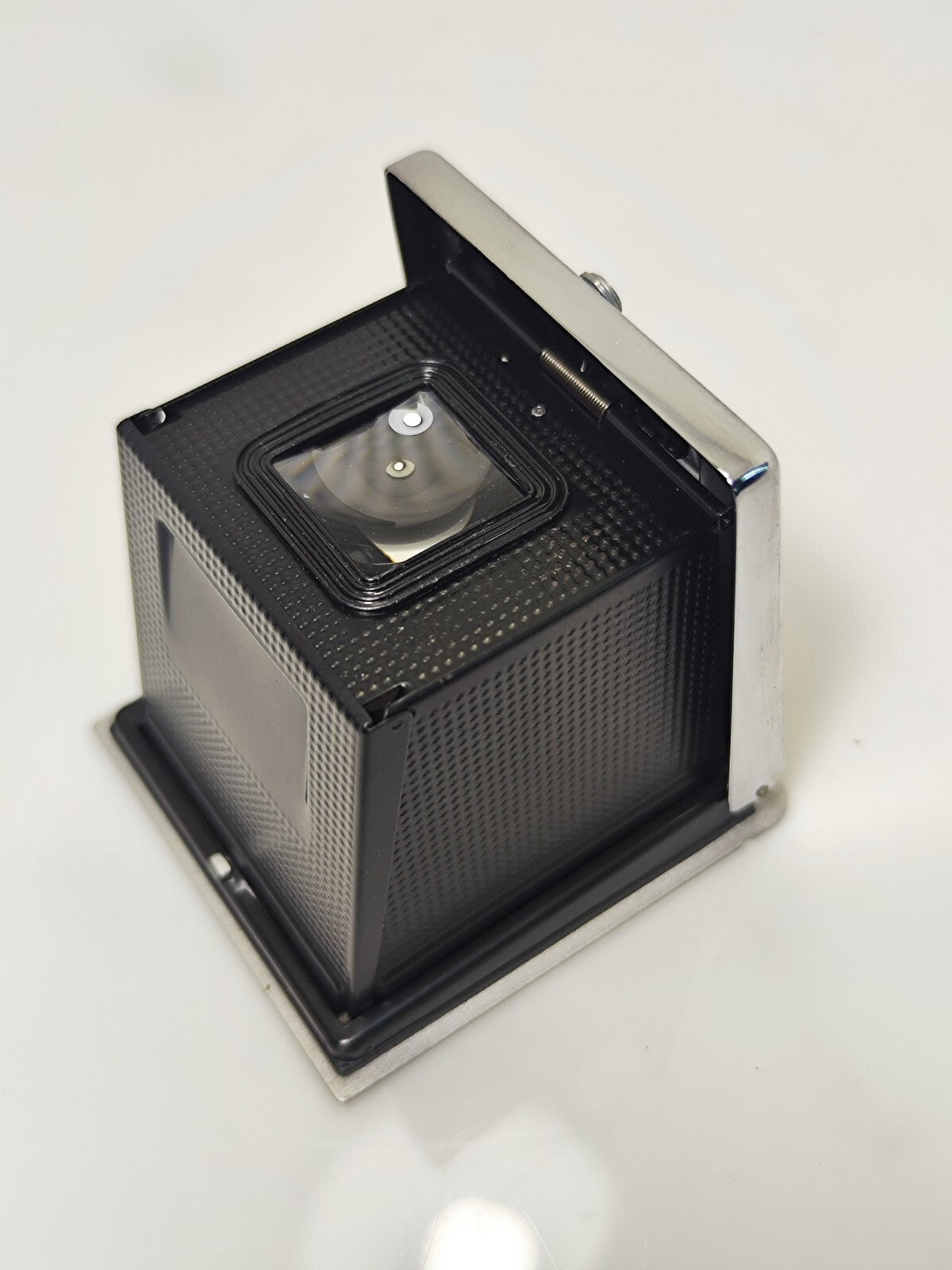

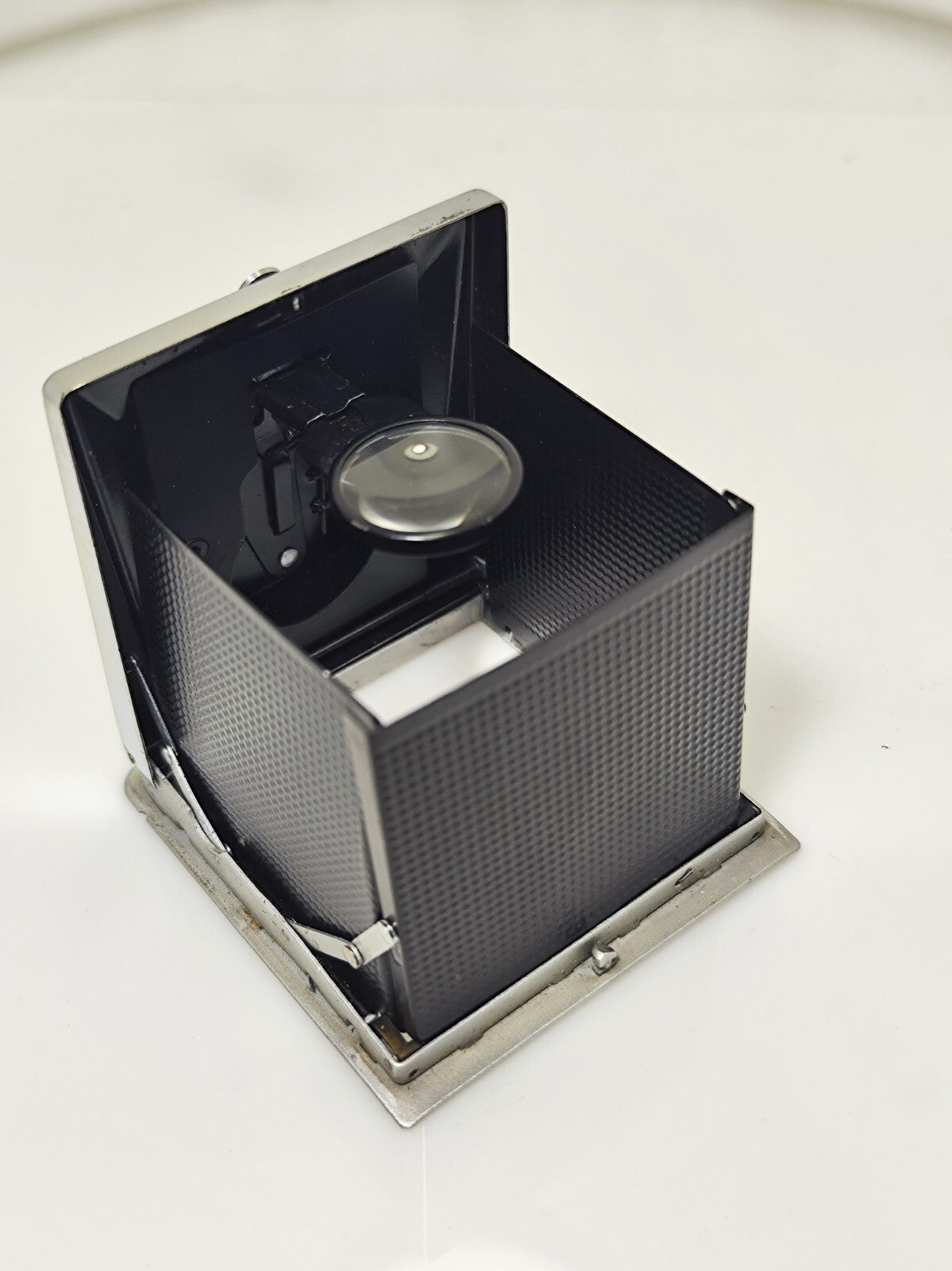

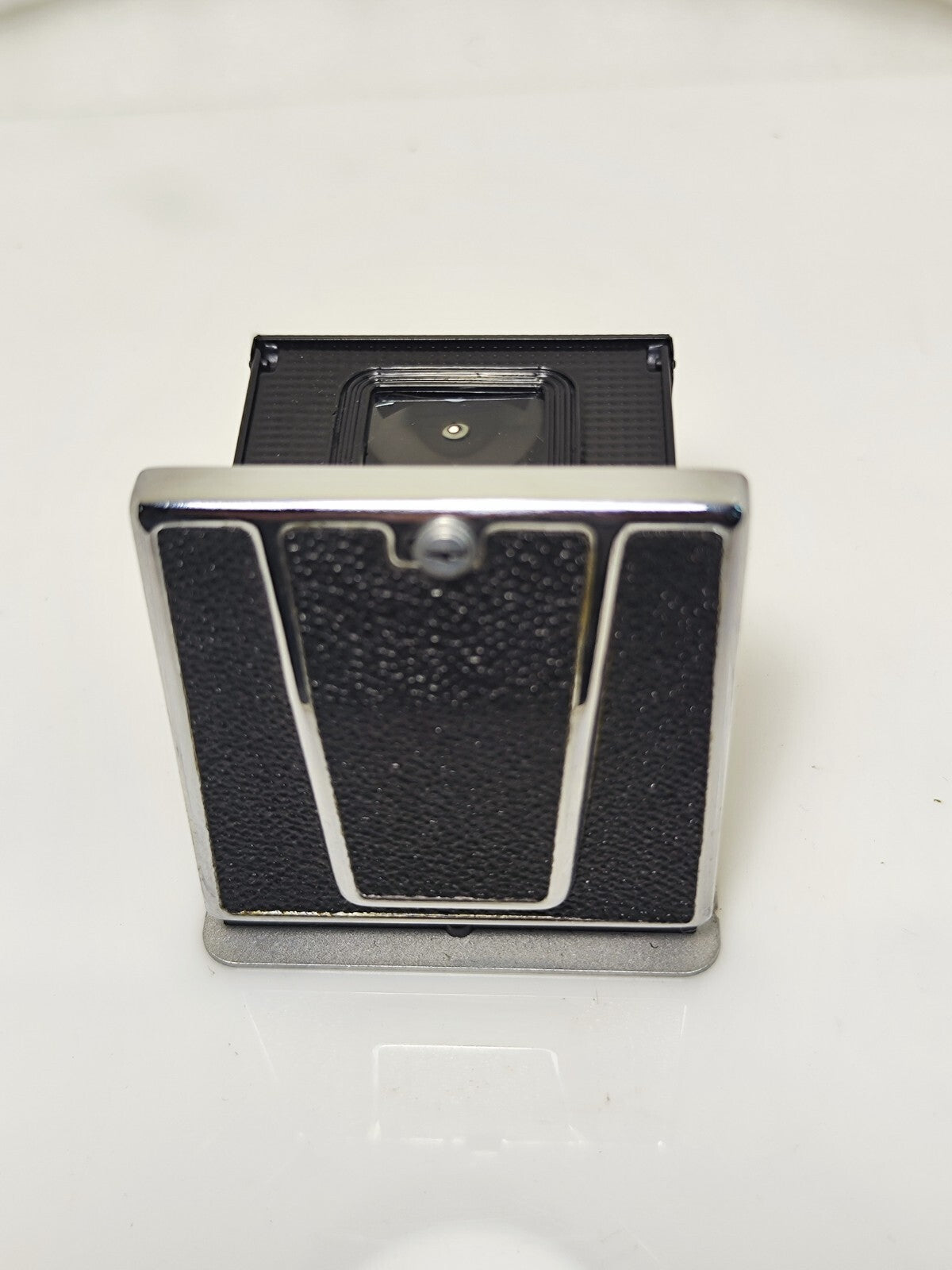

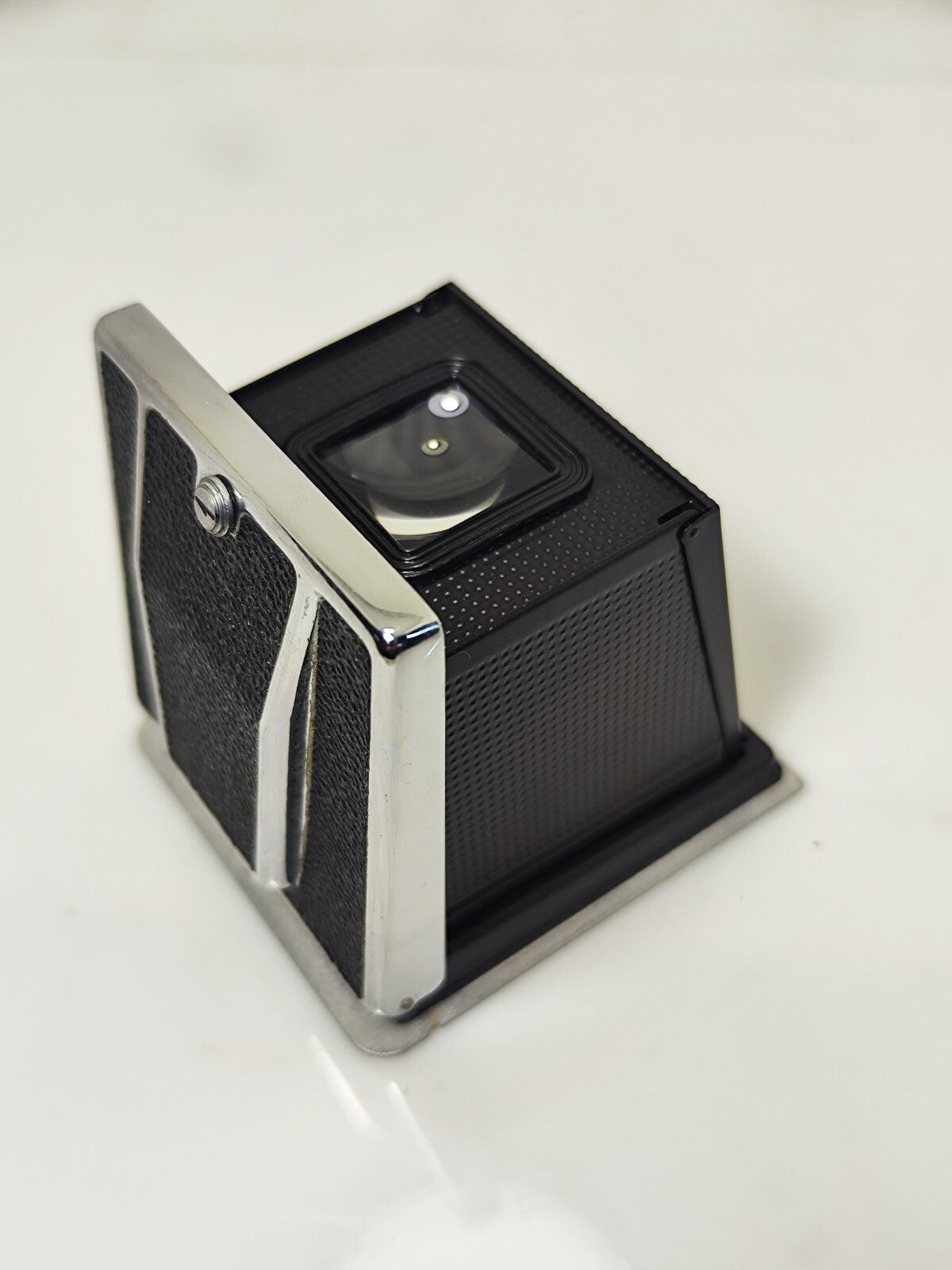

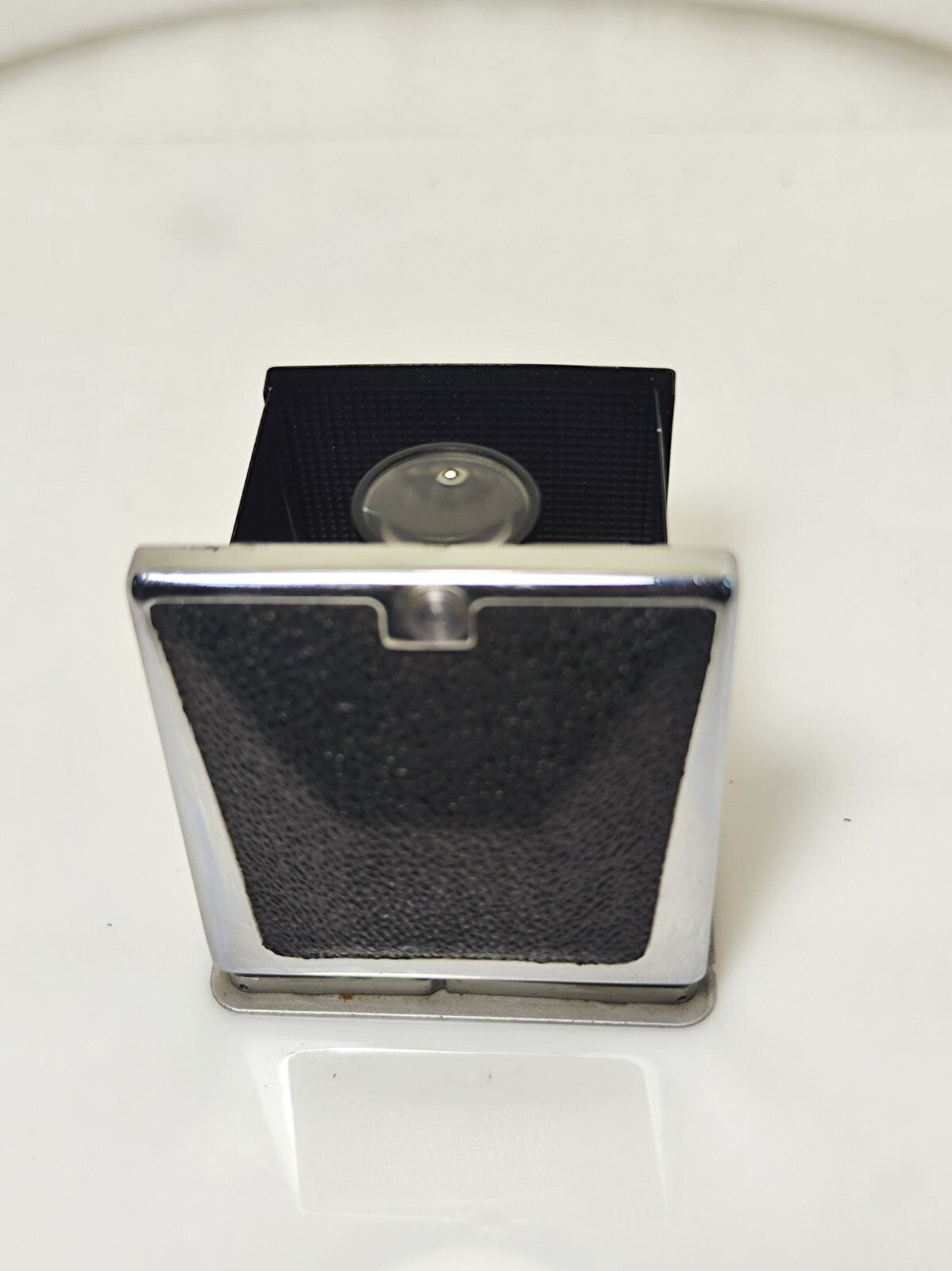

  4. Kiev-88 waist level finder NT new type. Hasselblad-style. 3x optical magnification.

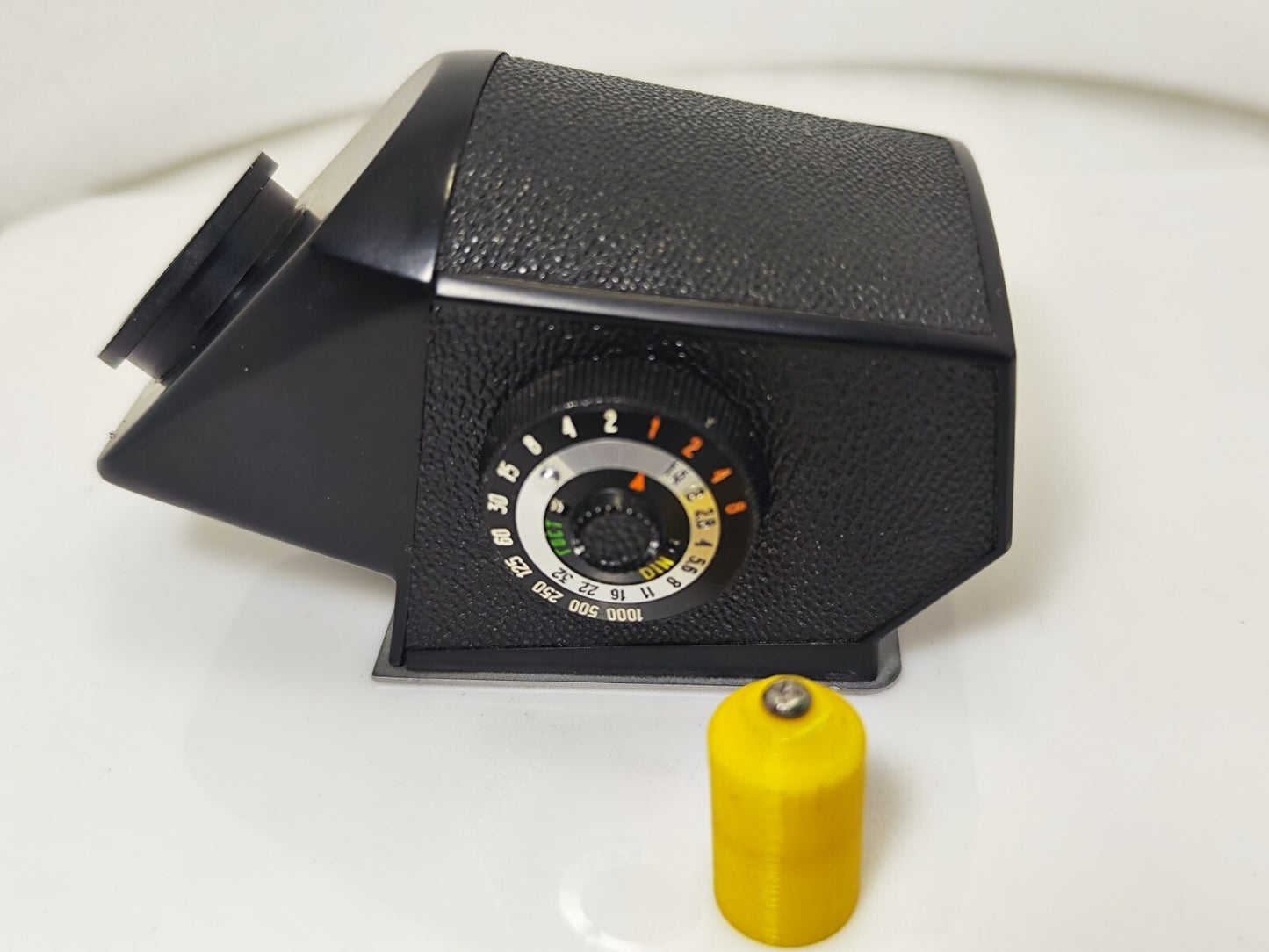

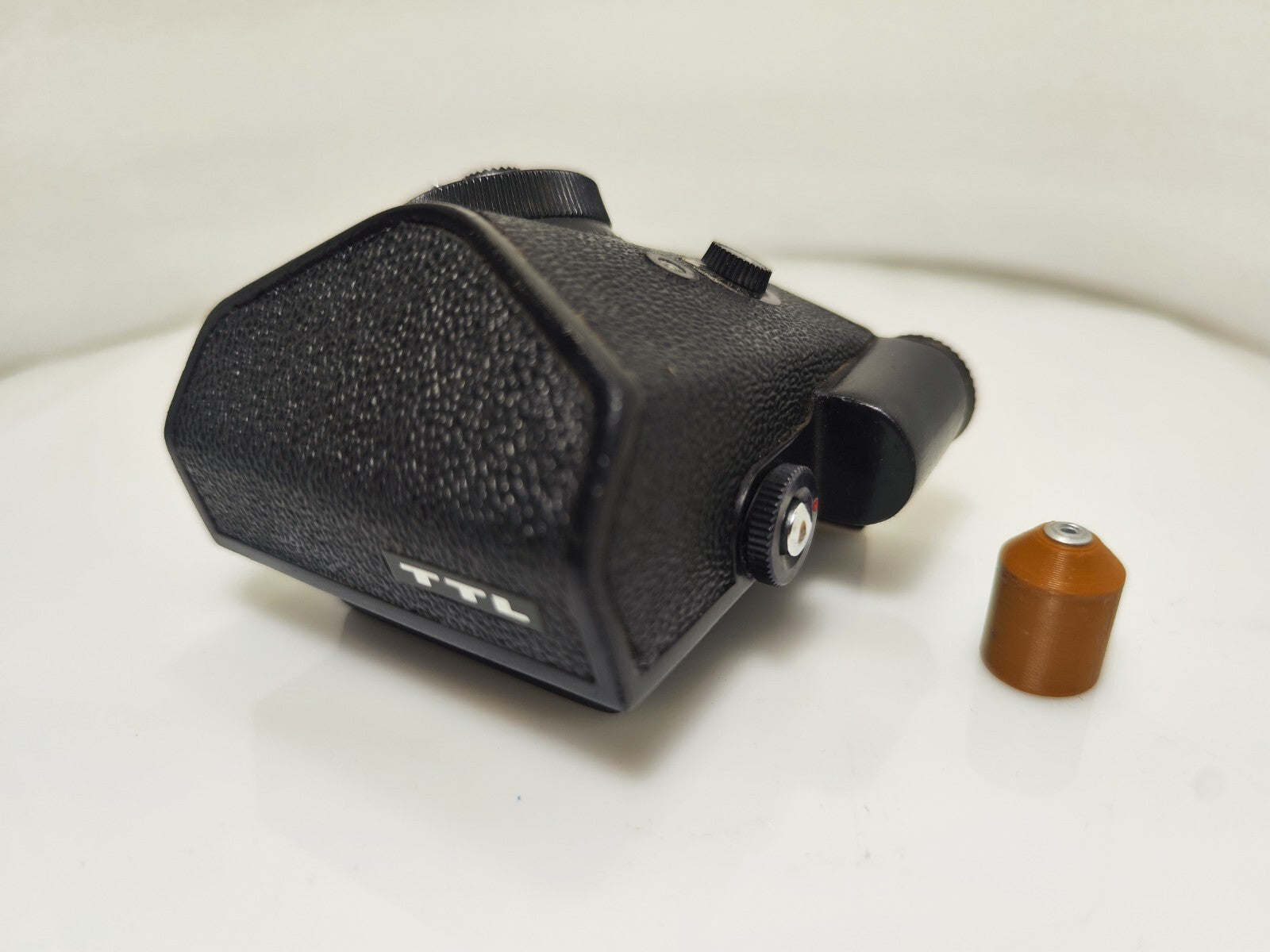

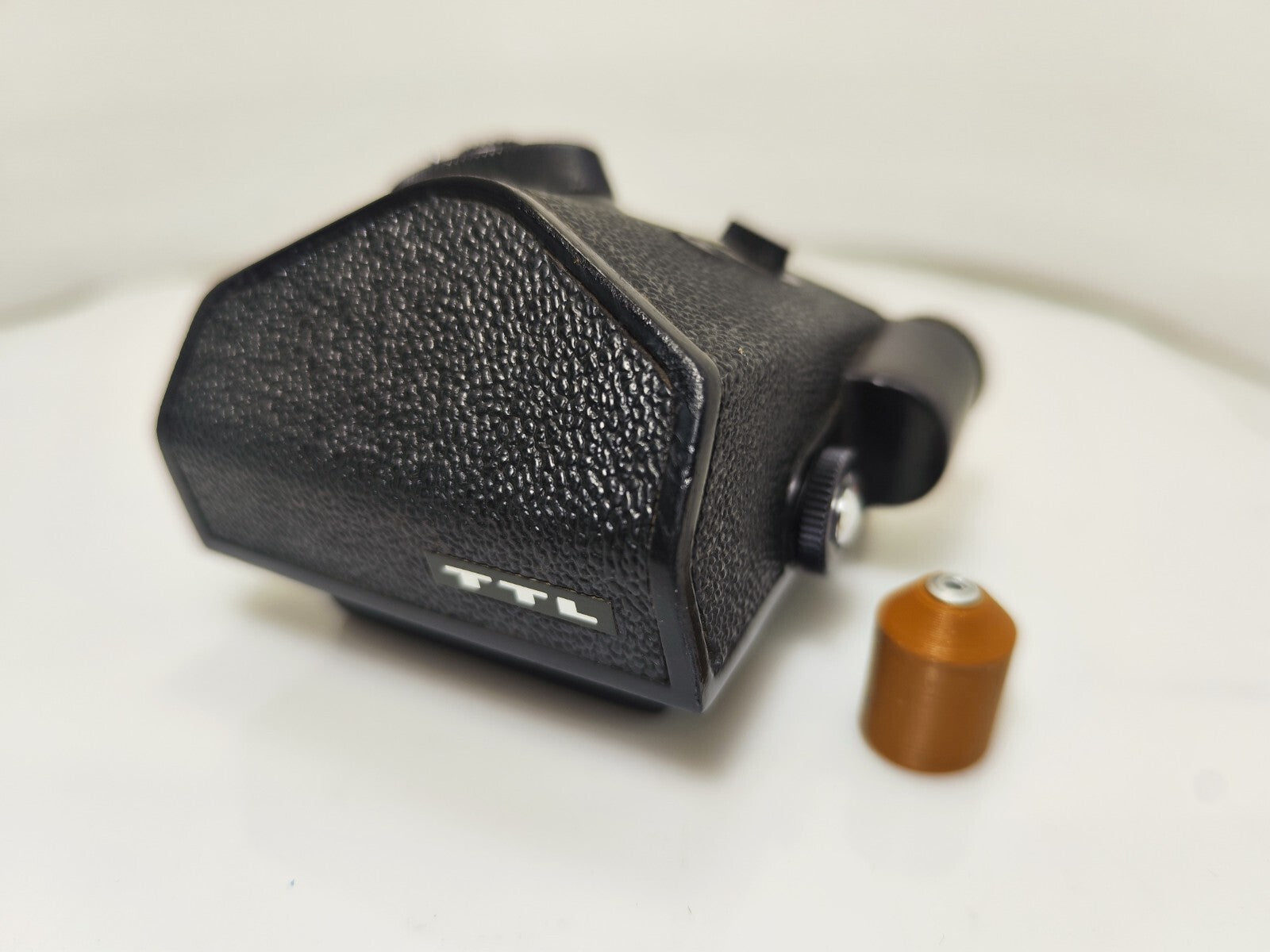

  5. Kiev-60 and Kiev-6C TTL prism finder + battery adapter as gift.

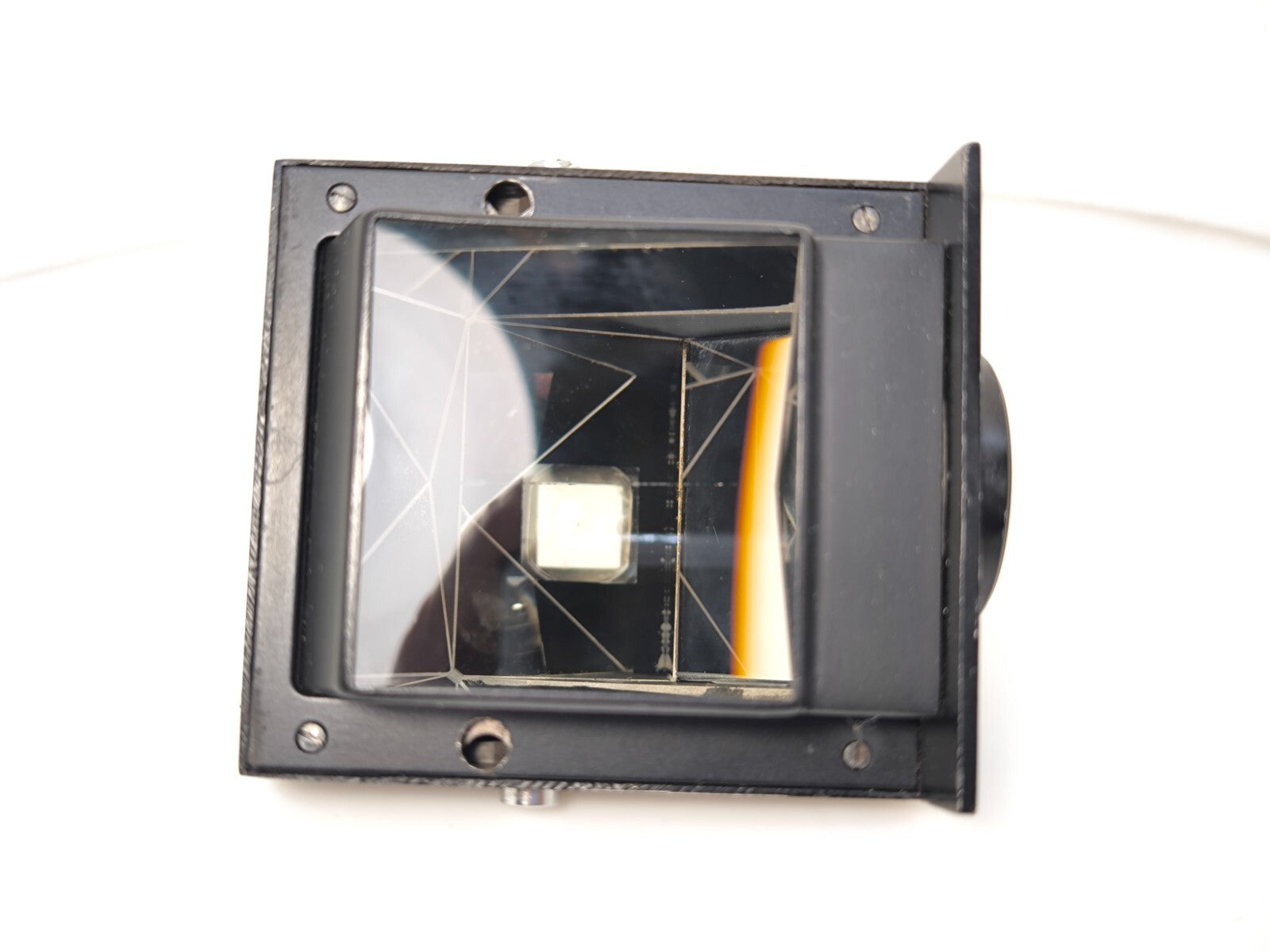

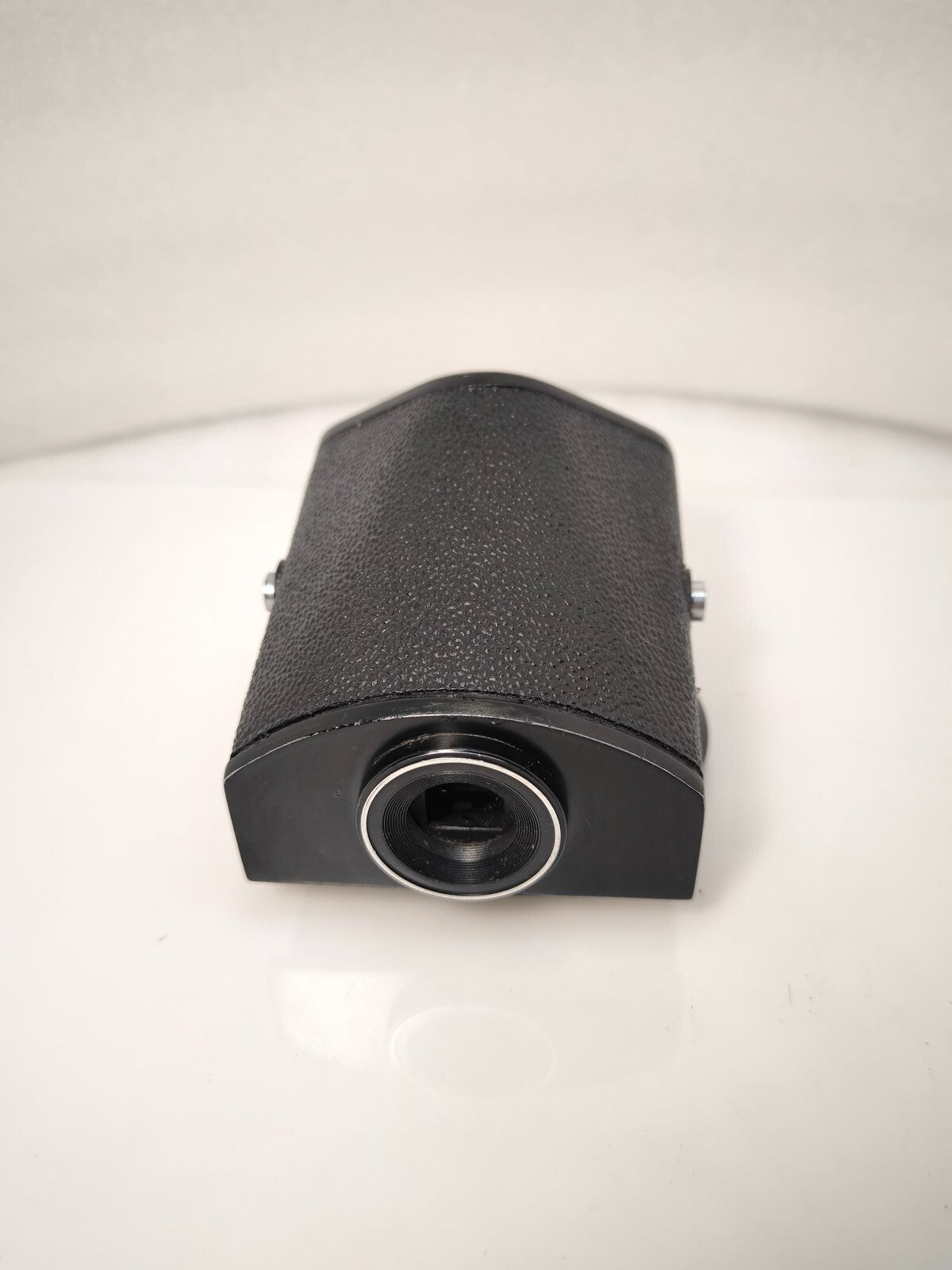

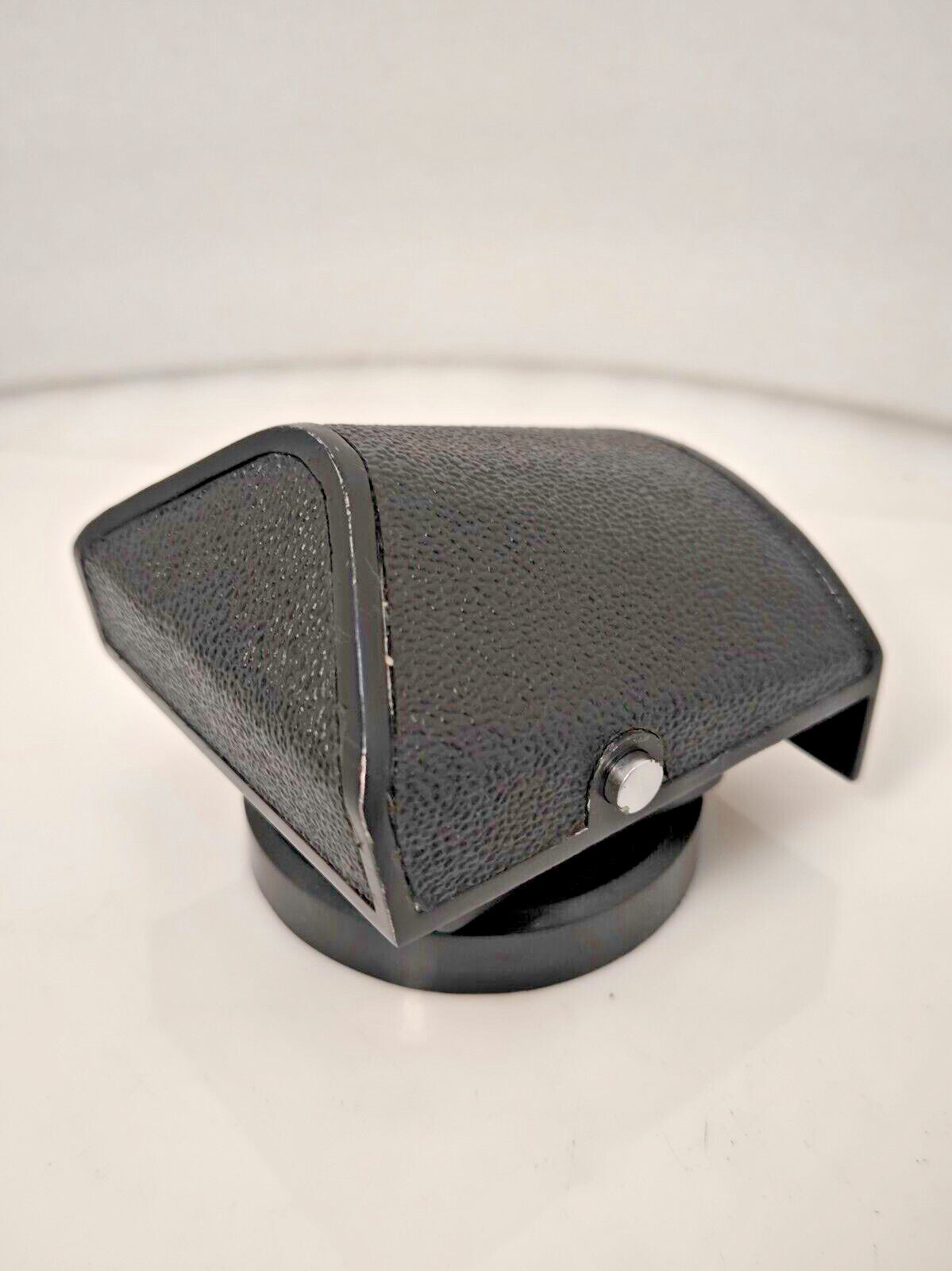

  6. Kiev-60 and Kiev-6C prism finder(no TTL).

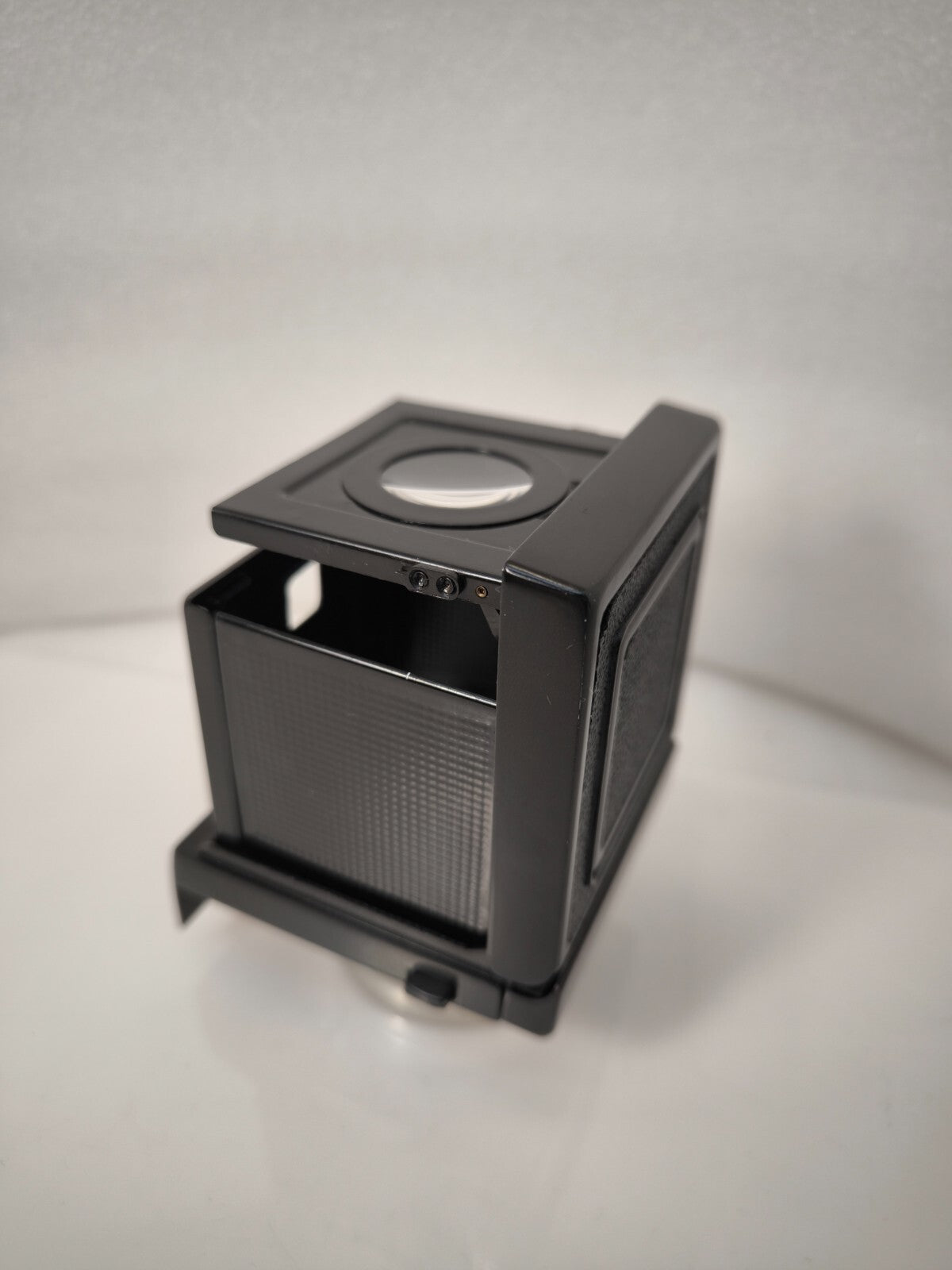

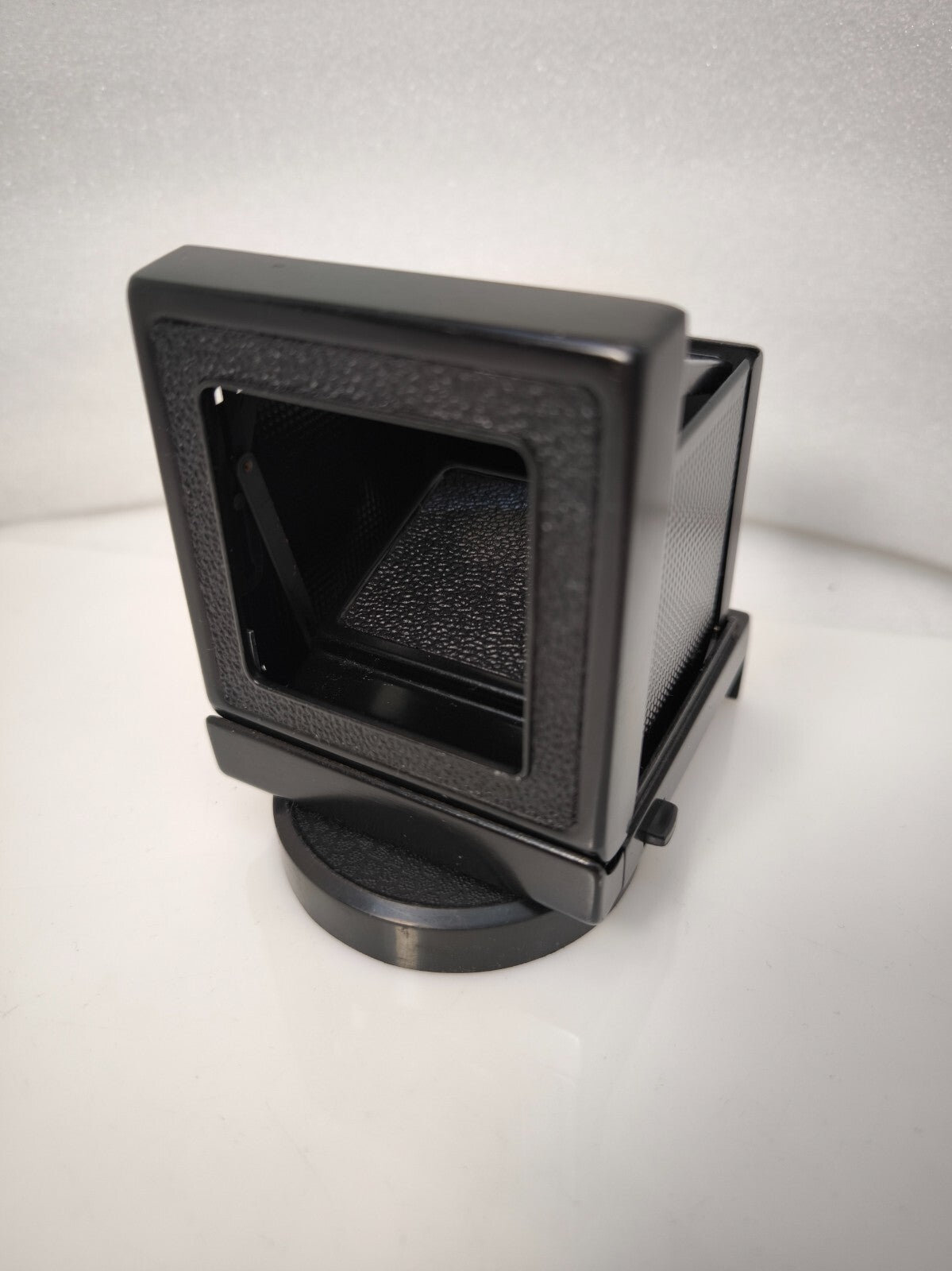

  7. Kiev-60 and Kiev-6C  waist level finder. WLF.

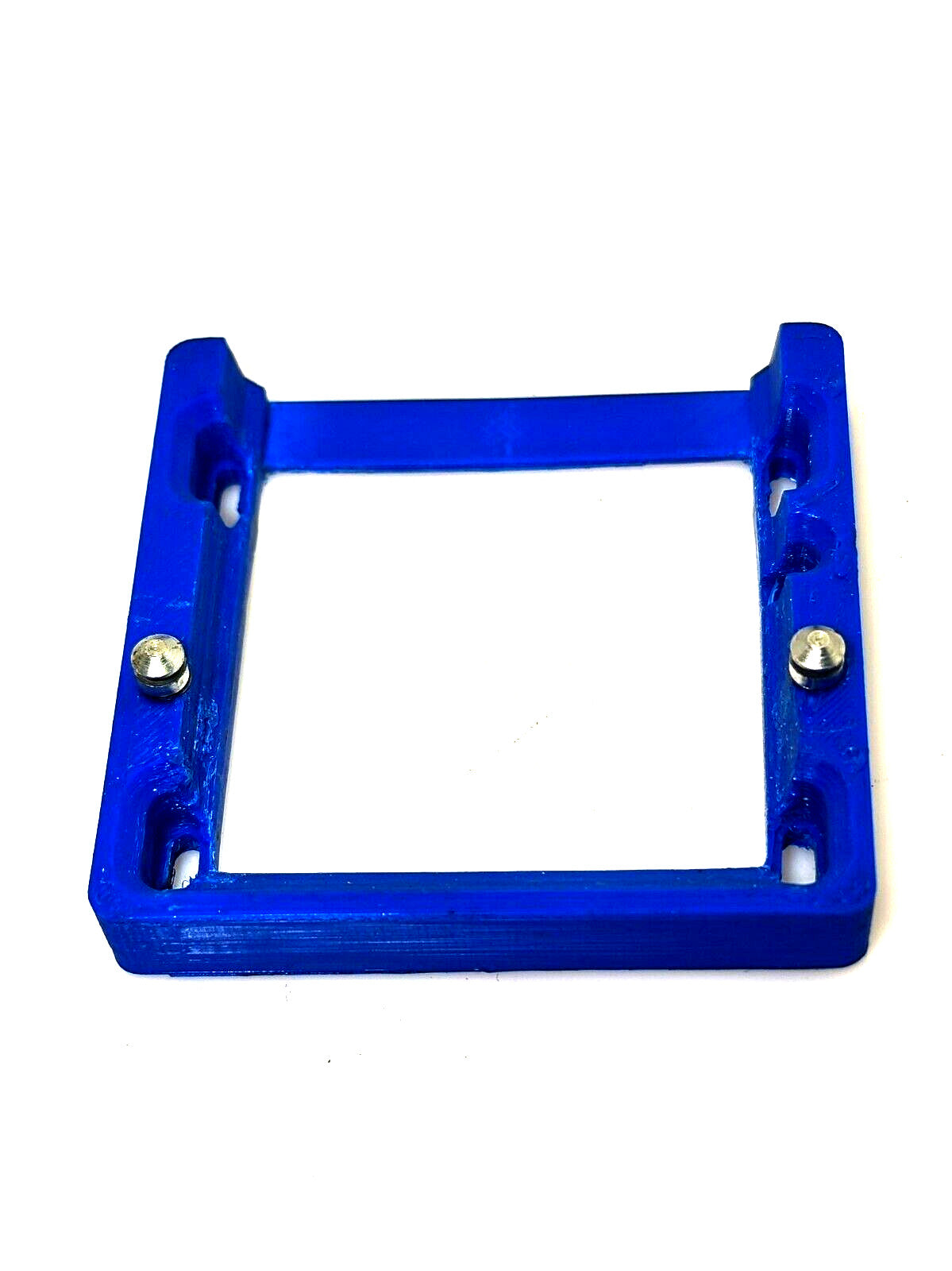

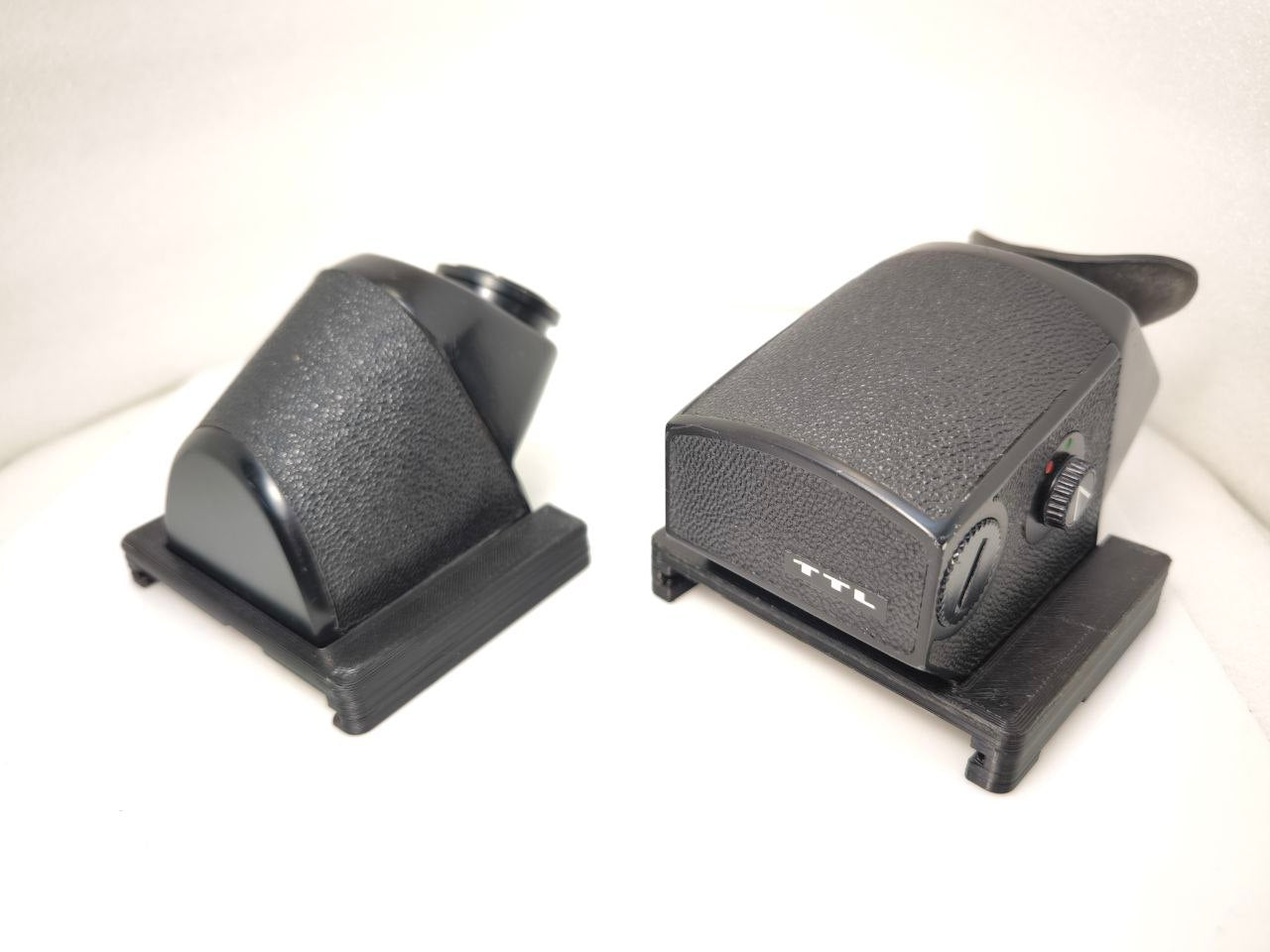

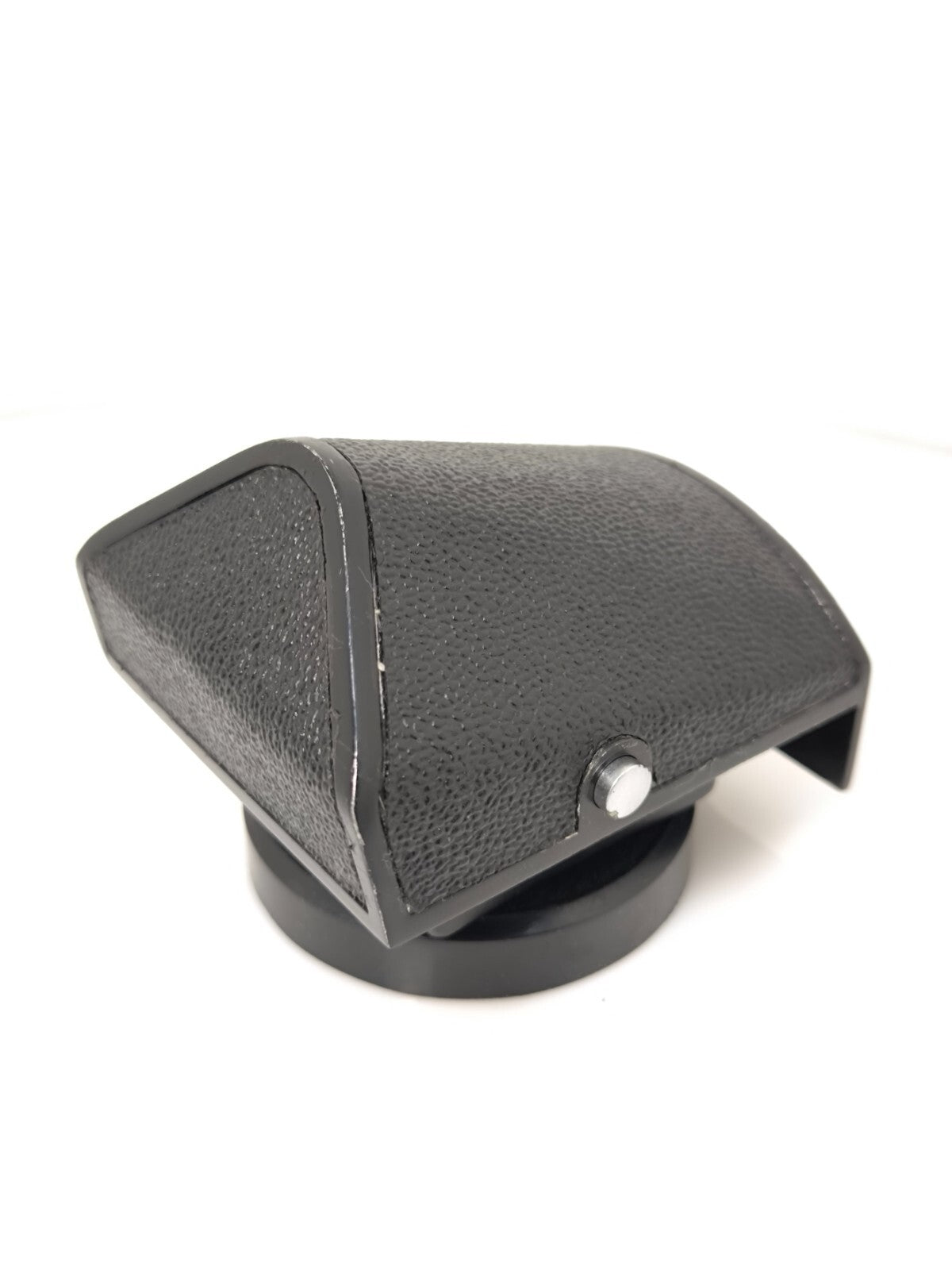

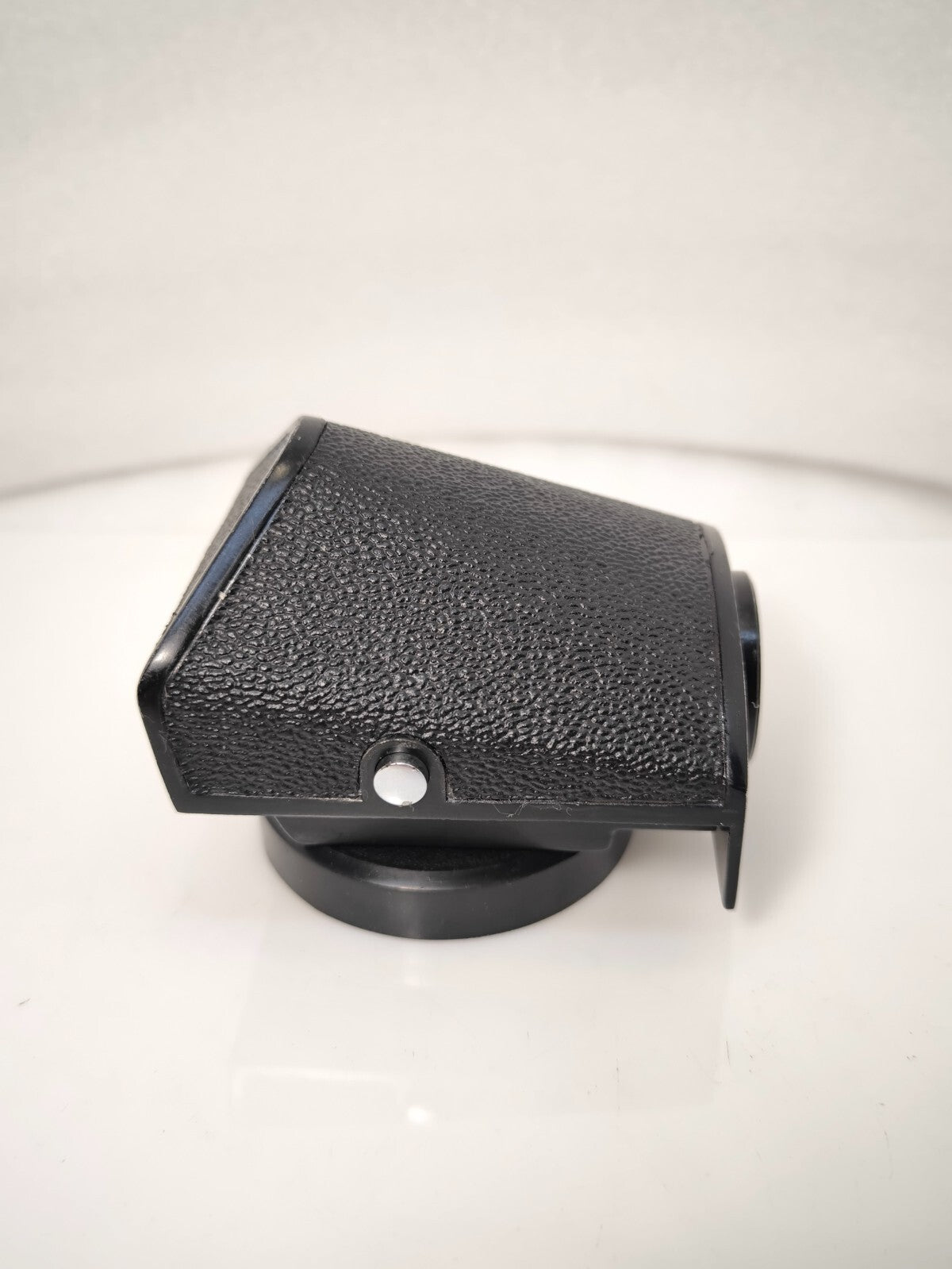

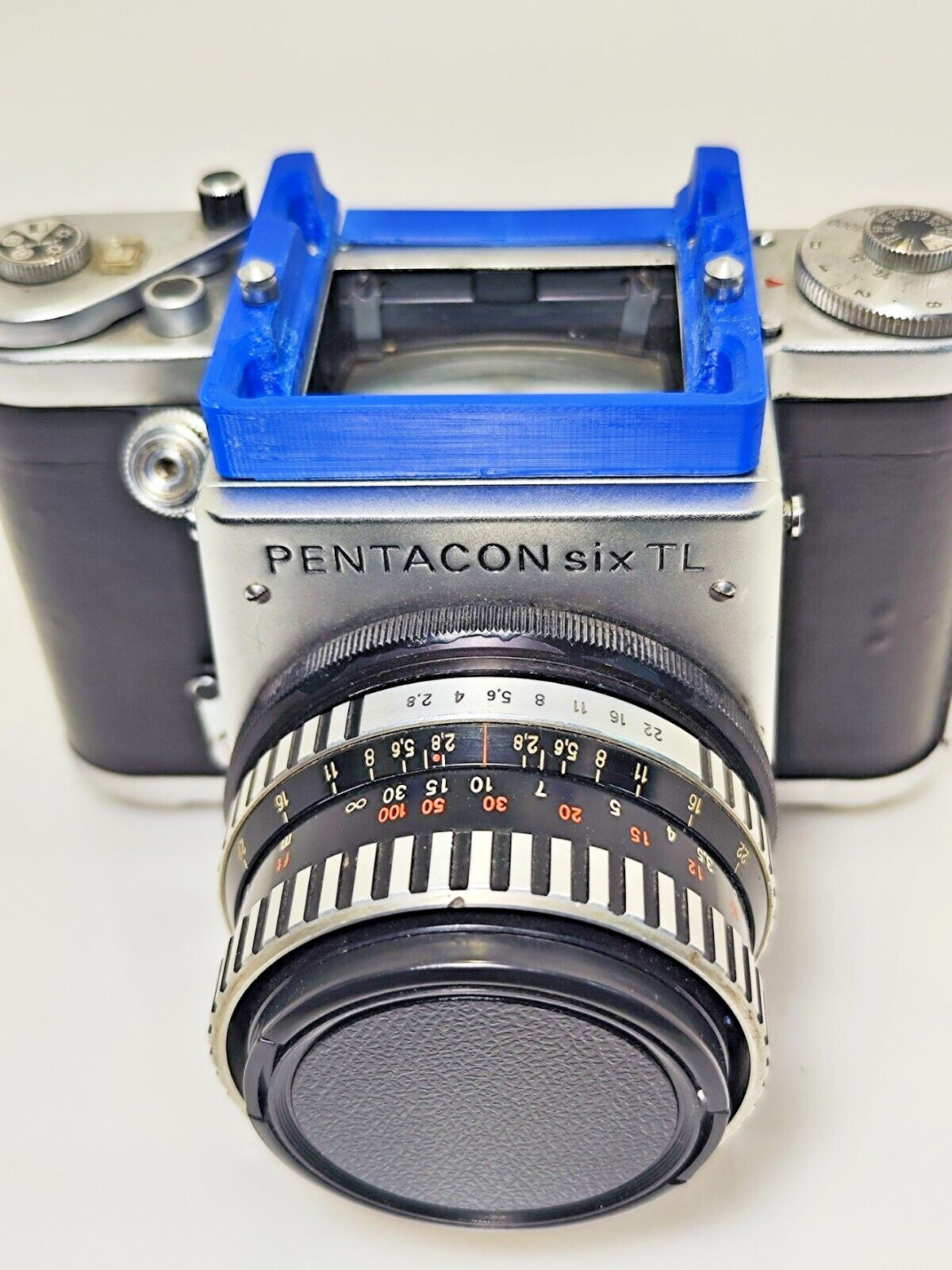

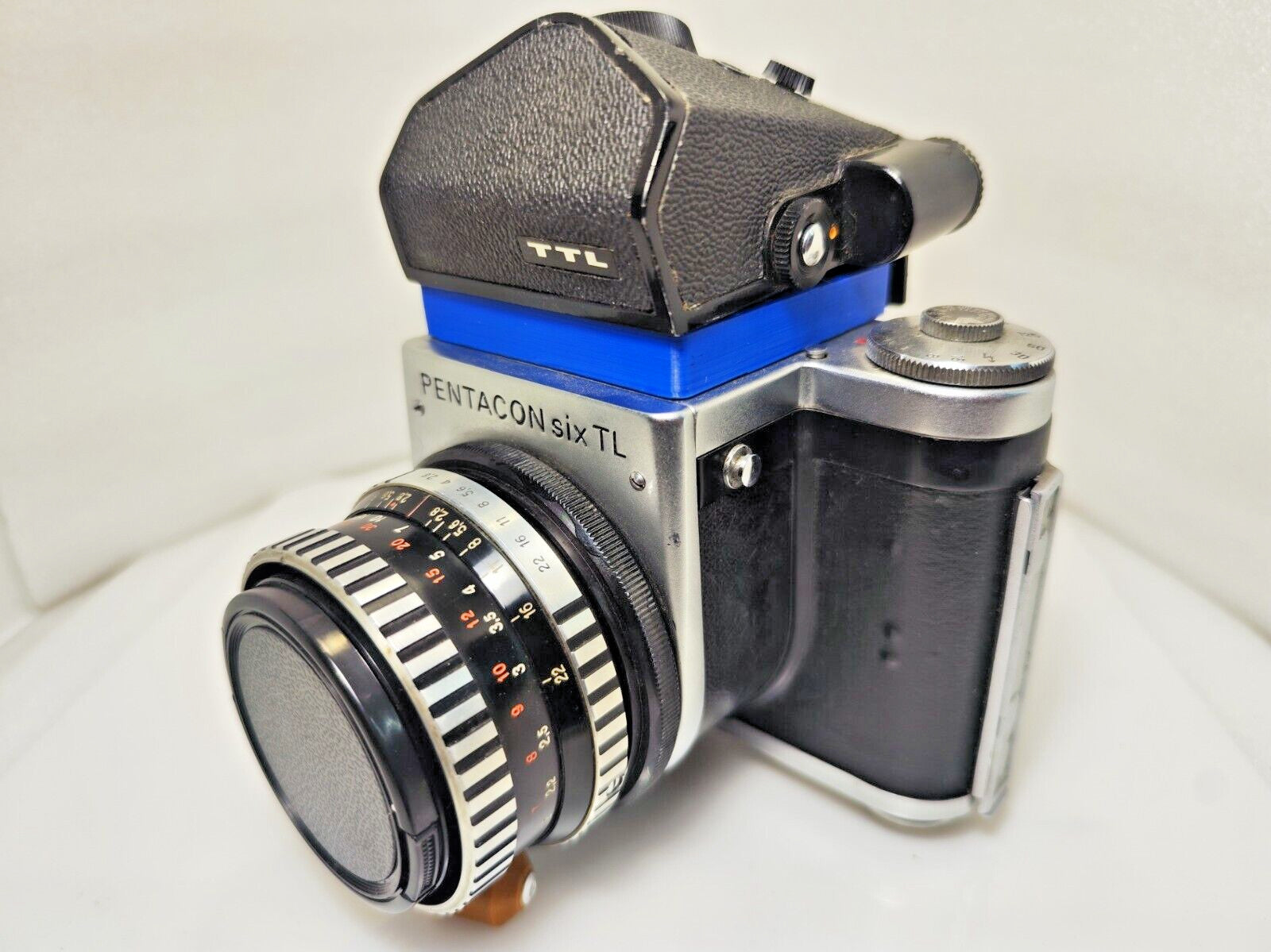

  8. Adapter for use Kiev-60/6C prism finder or waist level finder on Pentacon Six TL camera.

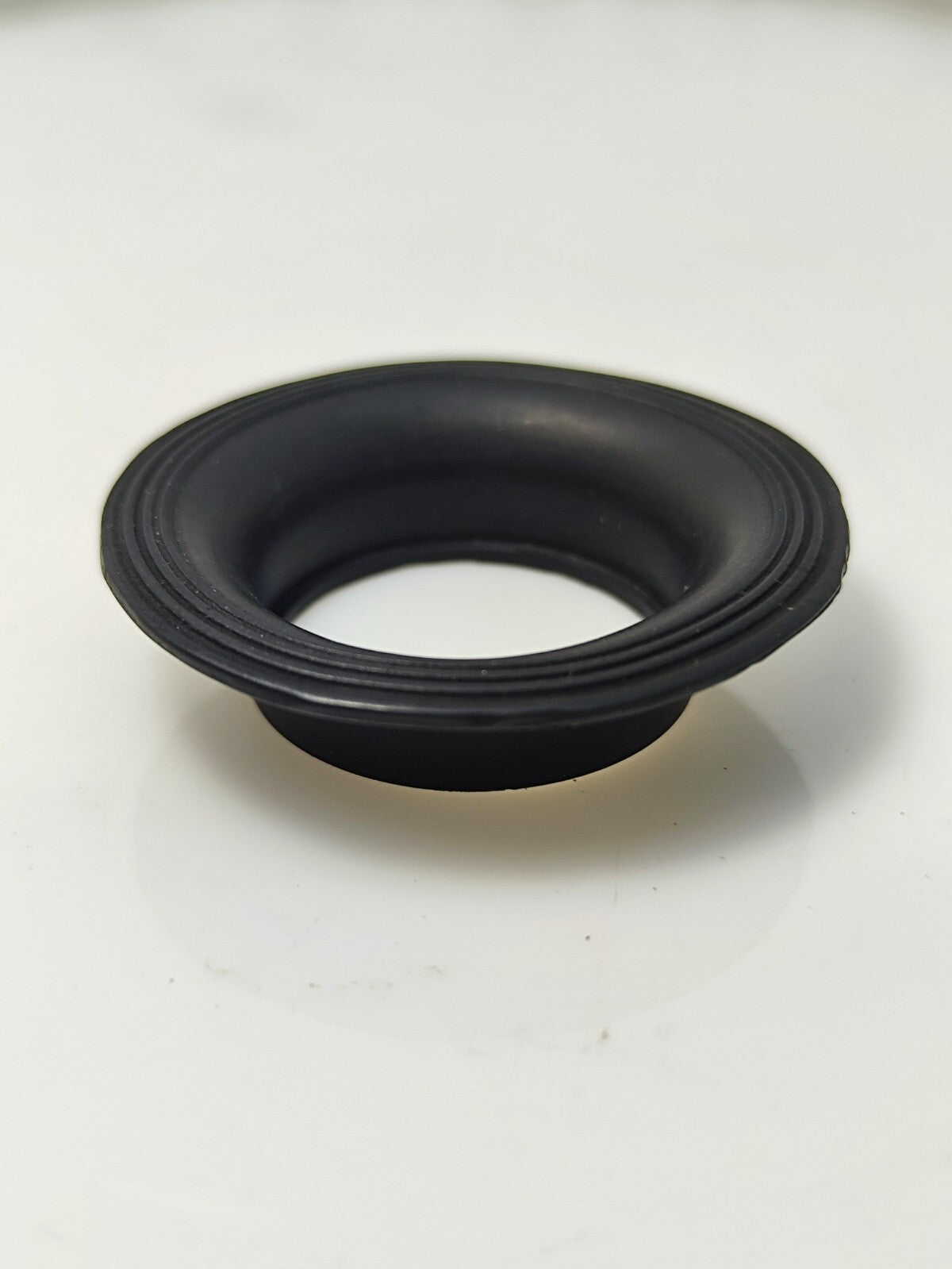

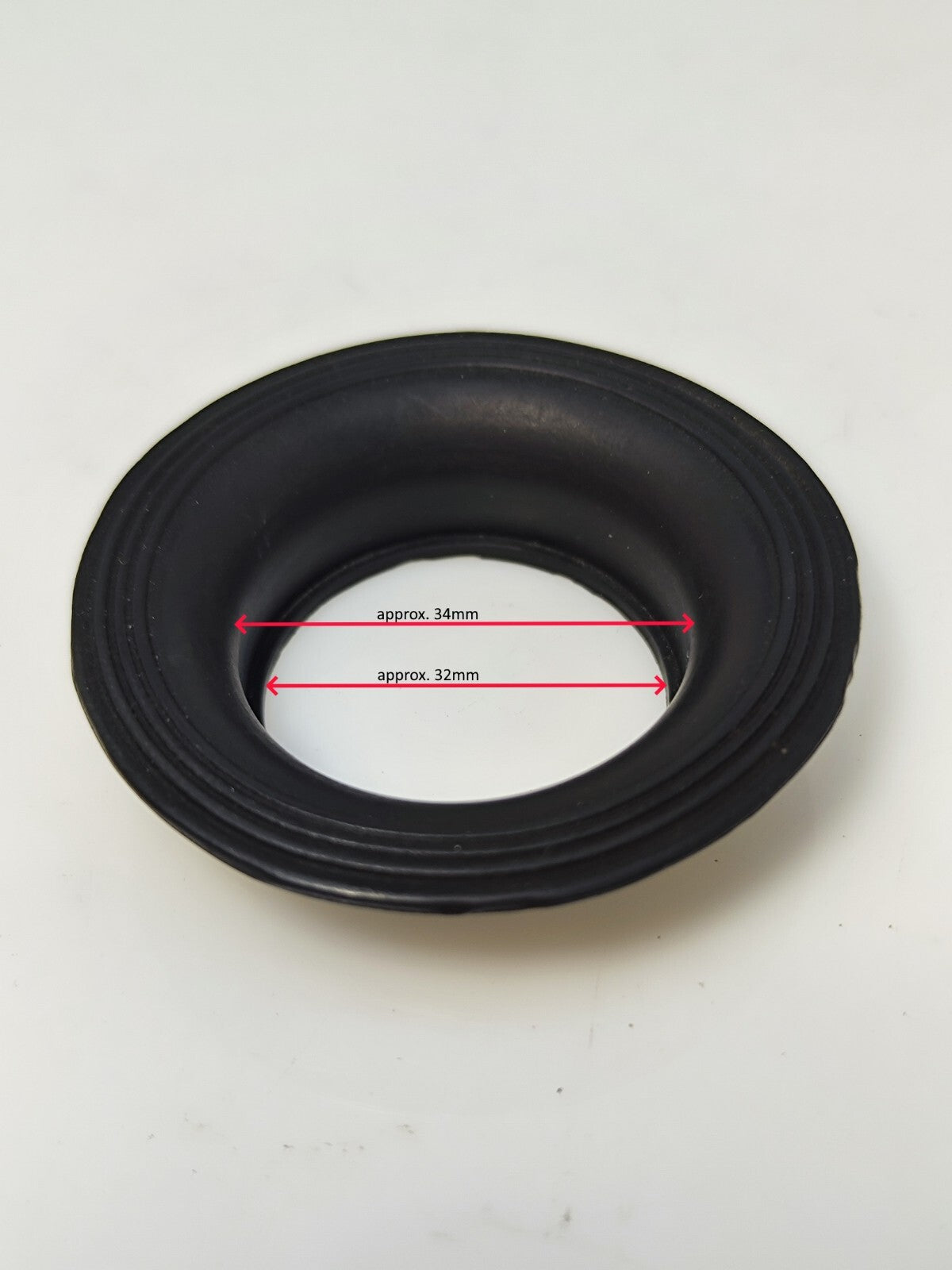

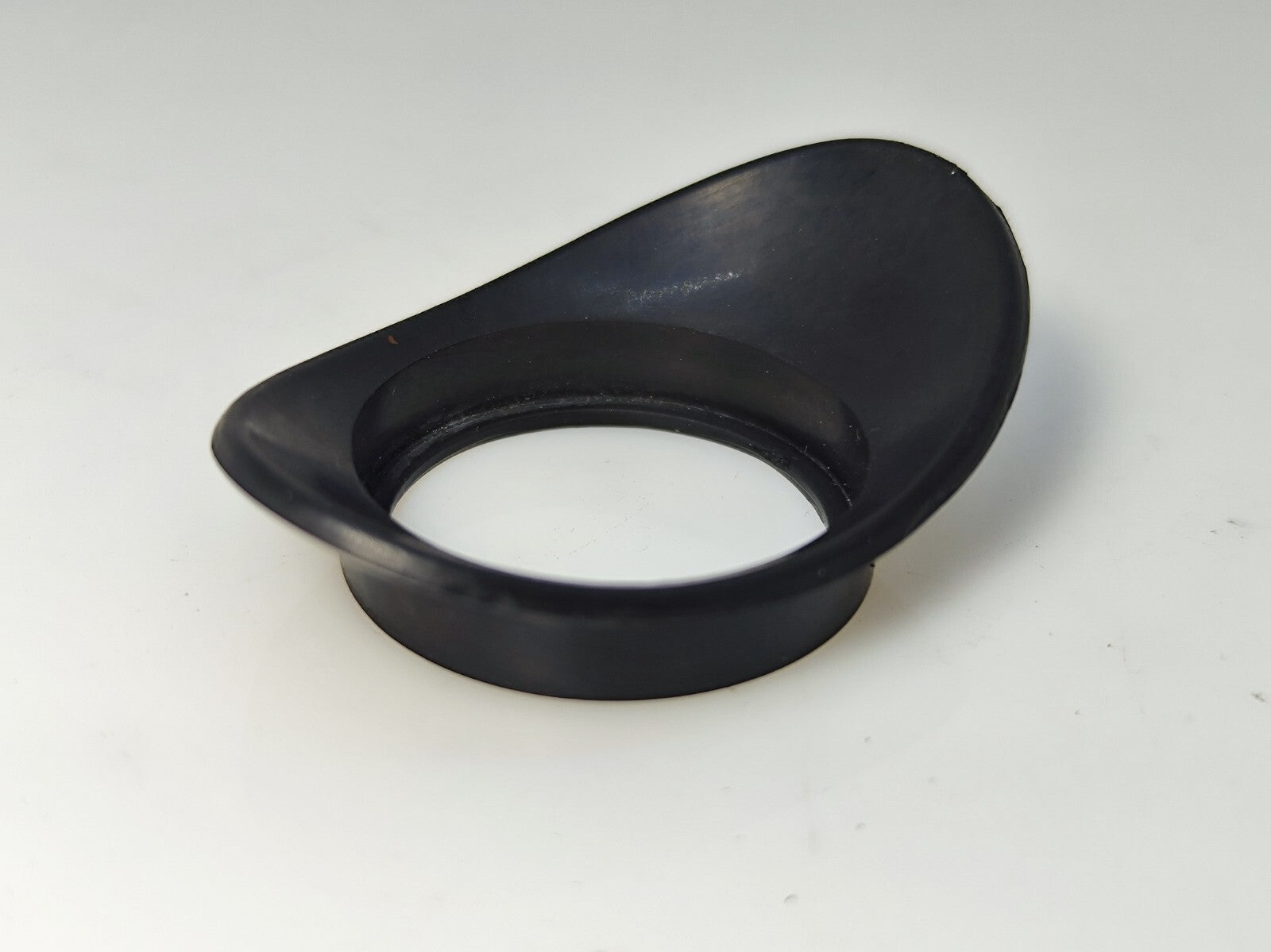

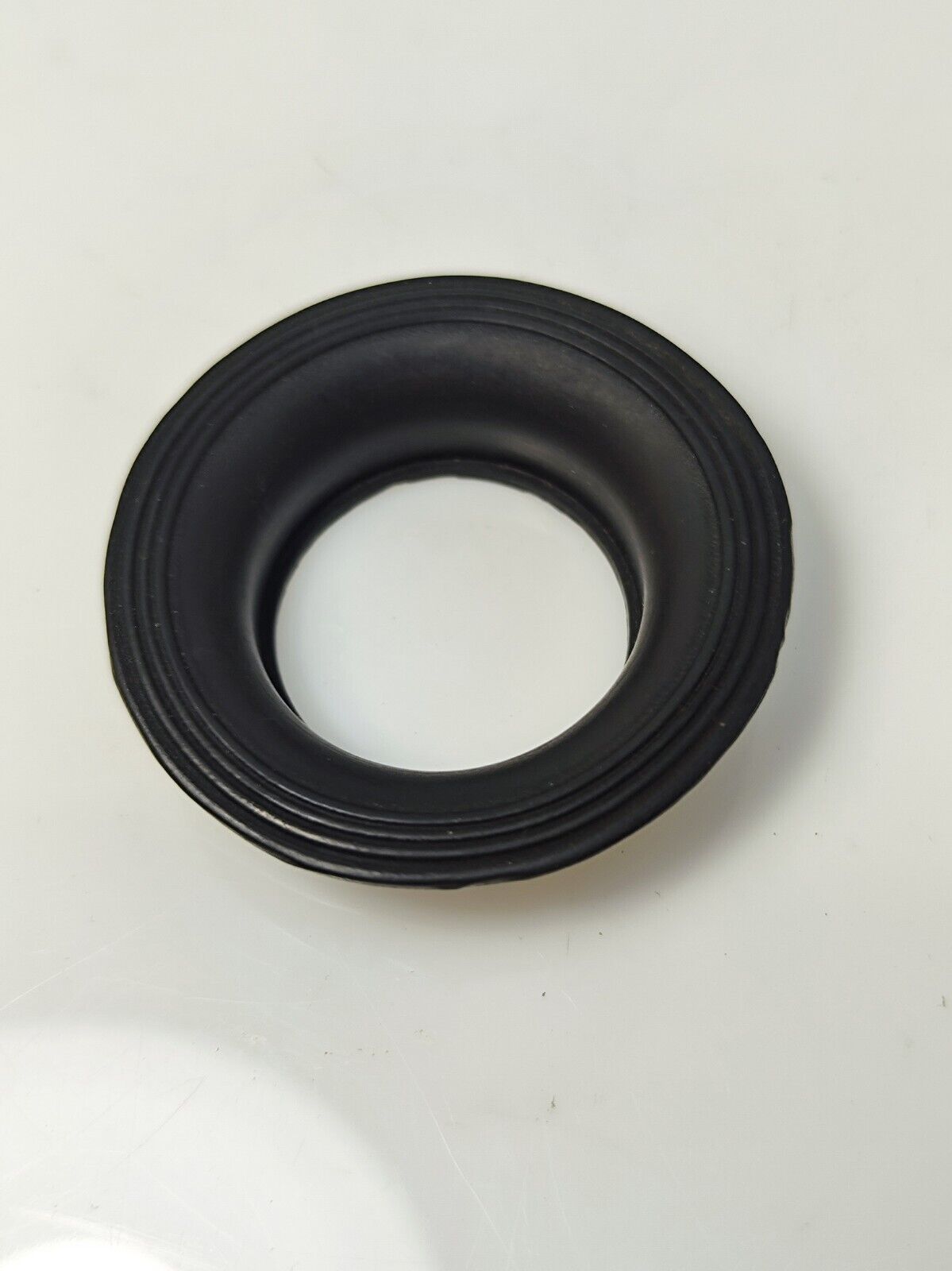

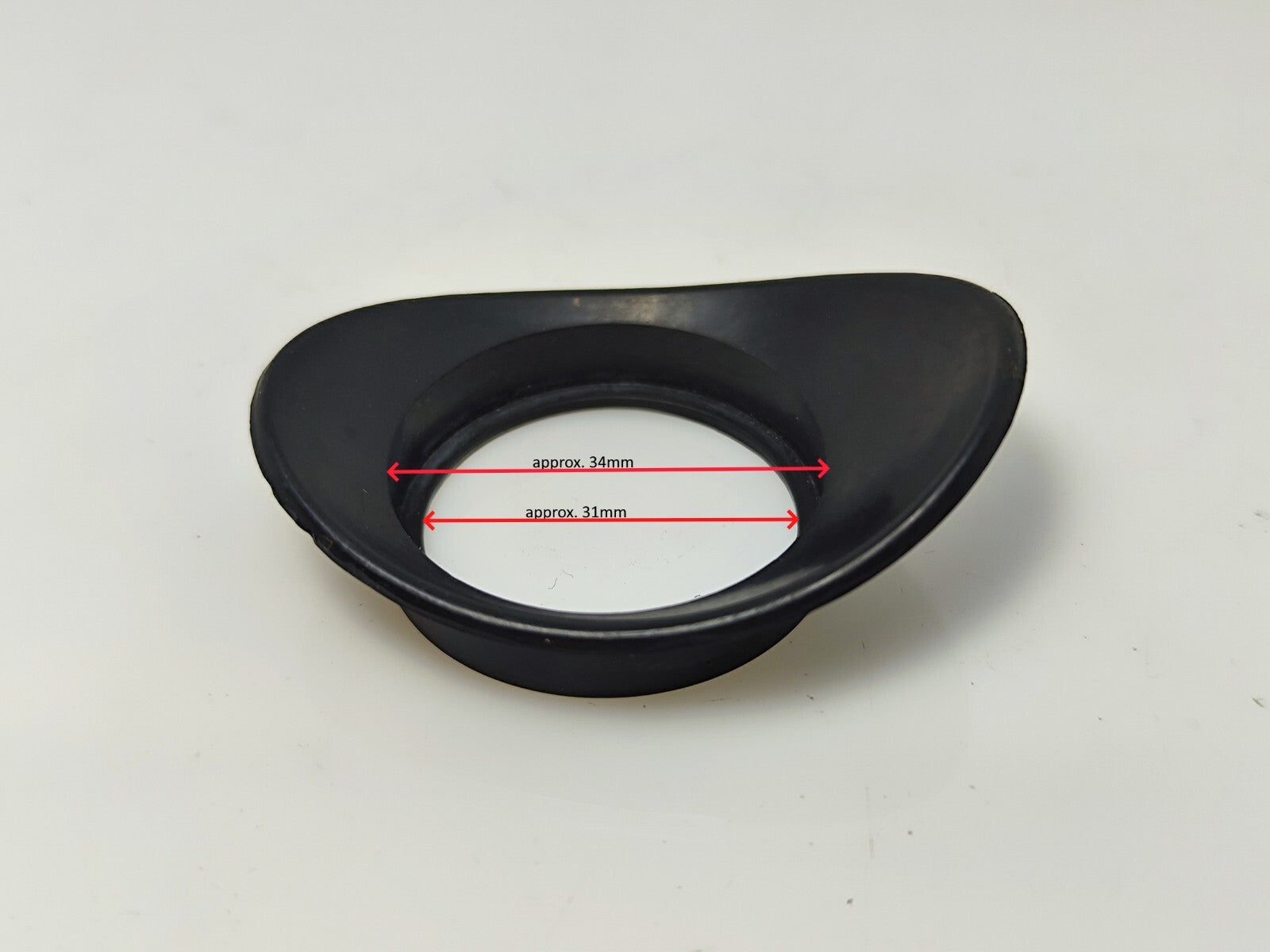

  9. Kiev-60 and Kiev-6C original rubber eyepiece. Eyecup

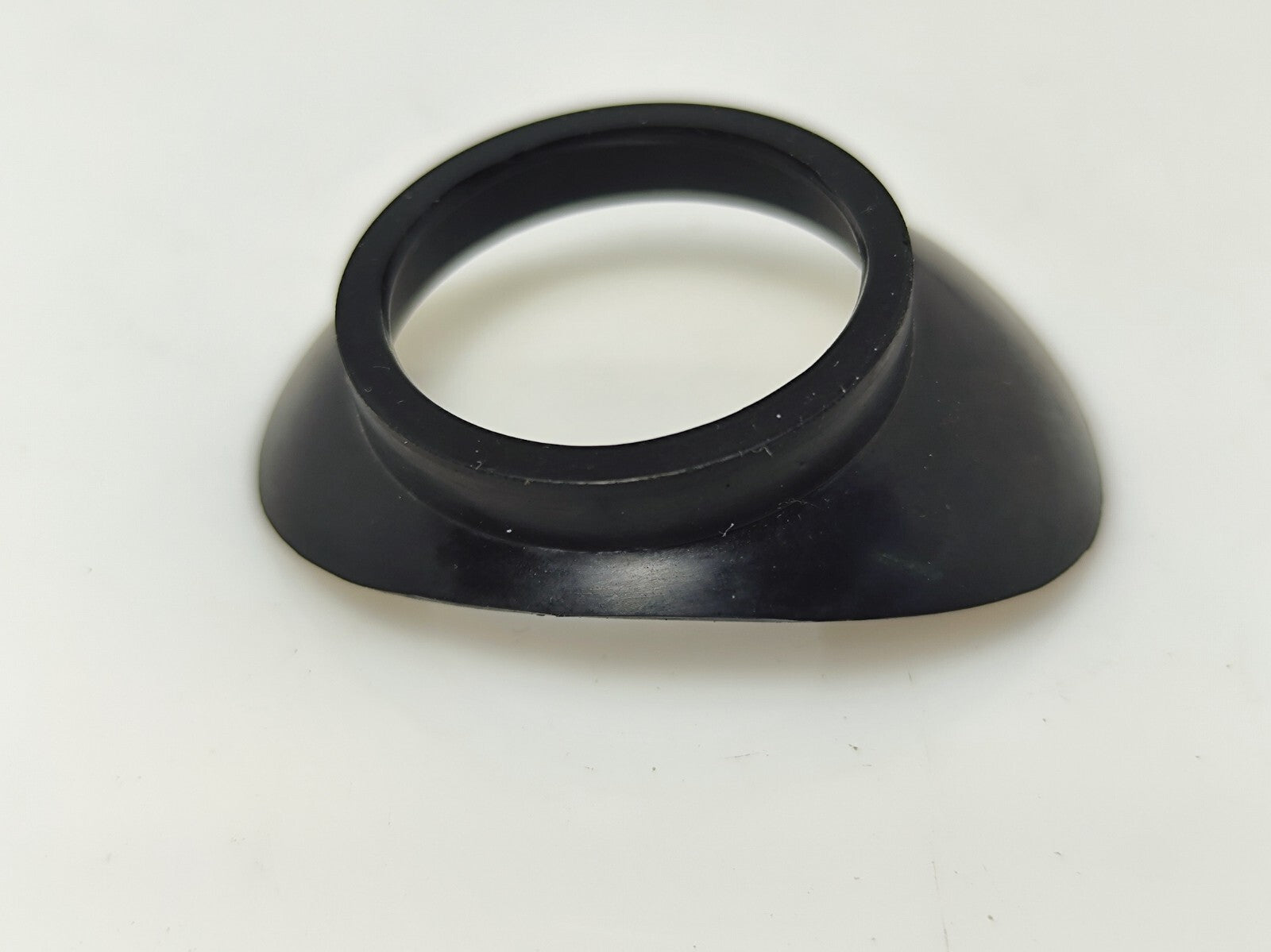

  10. Kiev-88 original rubber eyepiece. Eyecup.

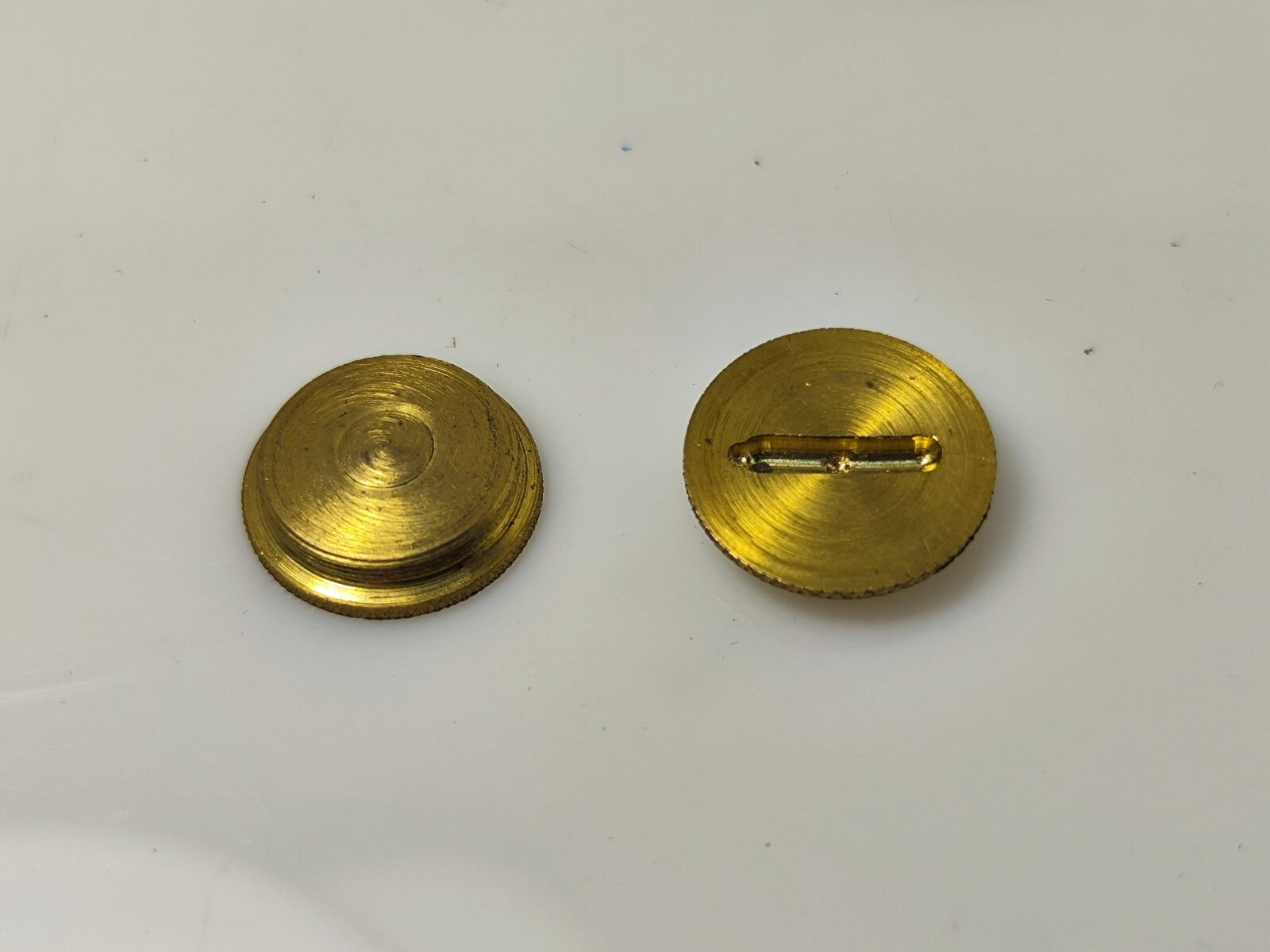

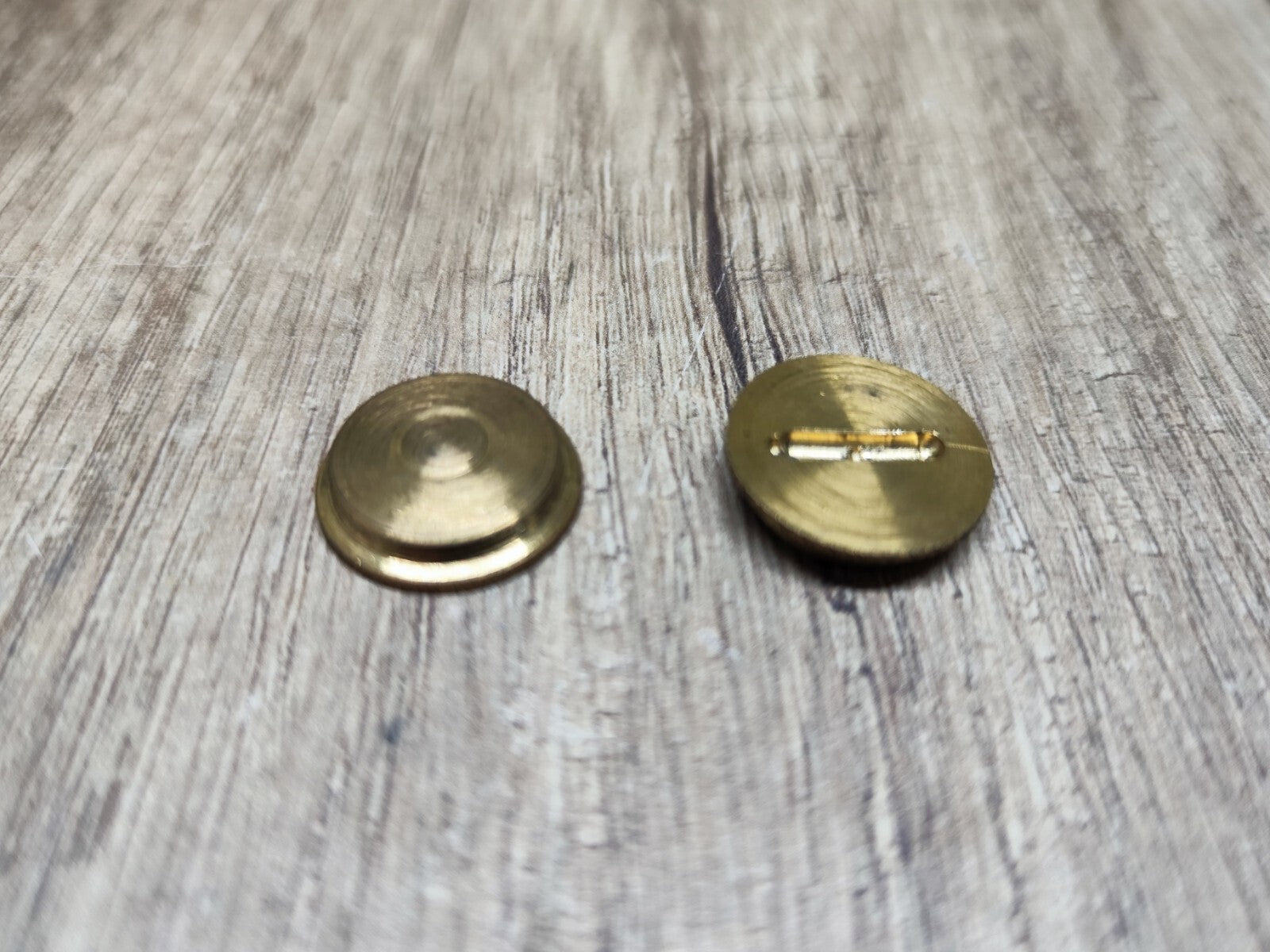

  11. Kiev-88, Kiev-60 and Kiev-6C replace battery cover.

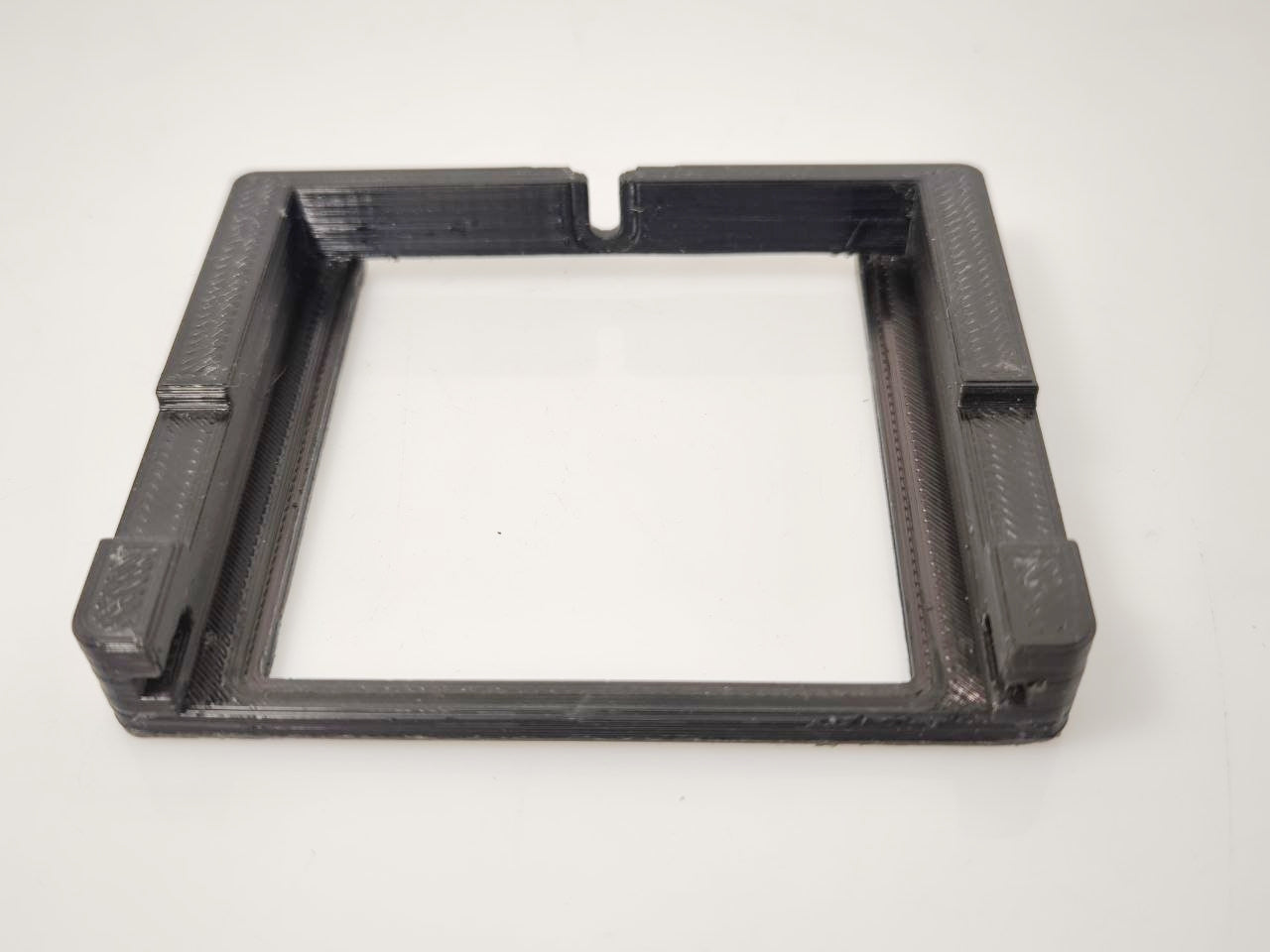

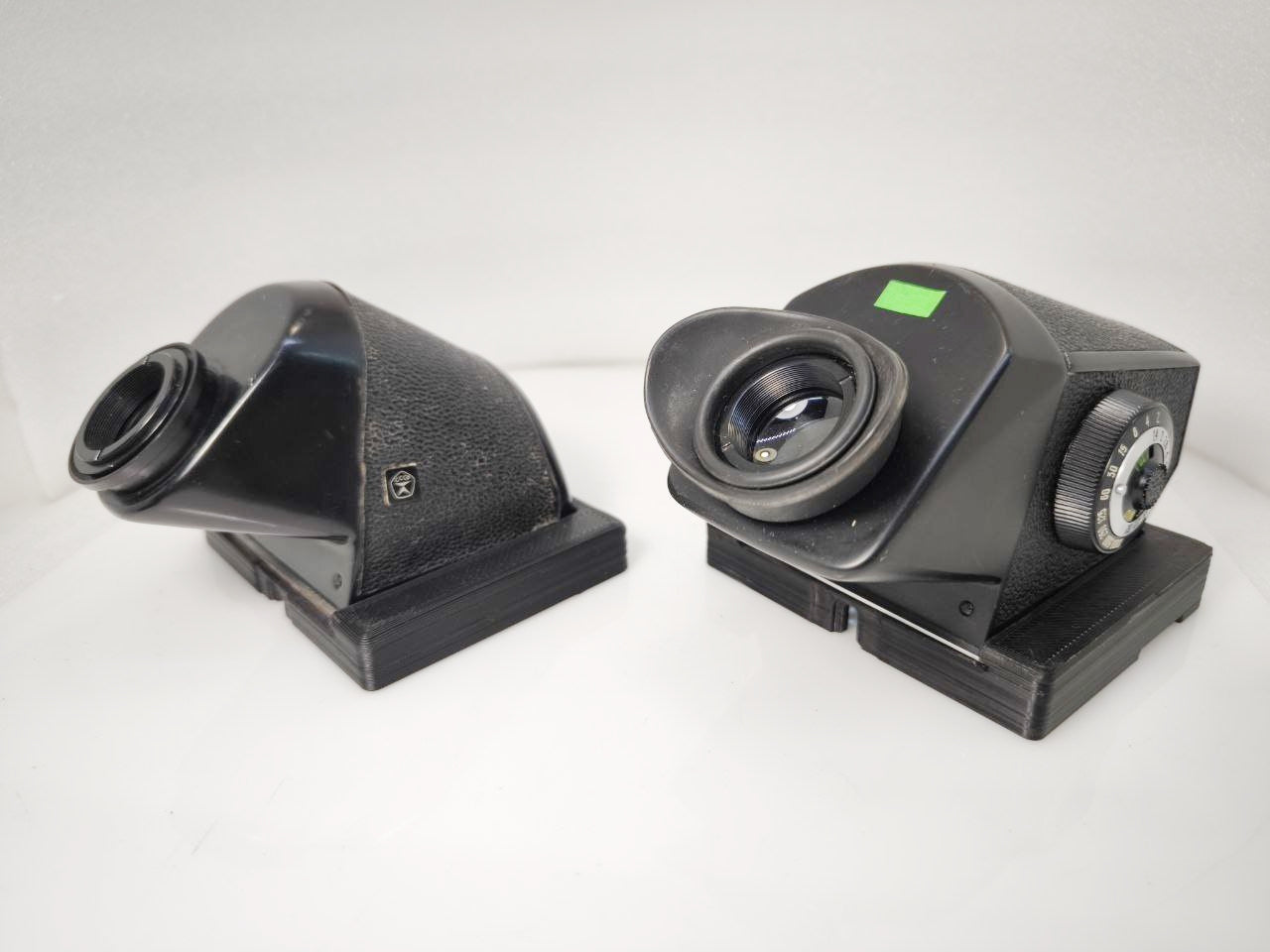

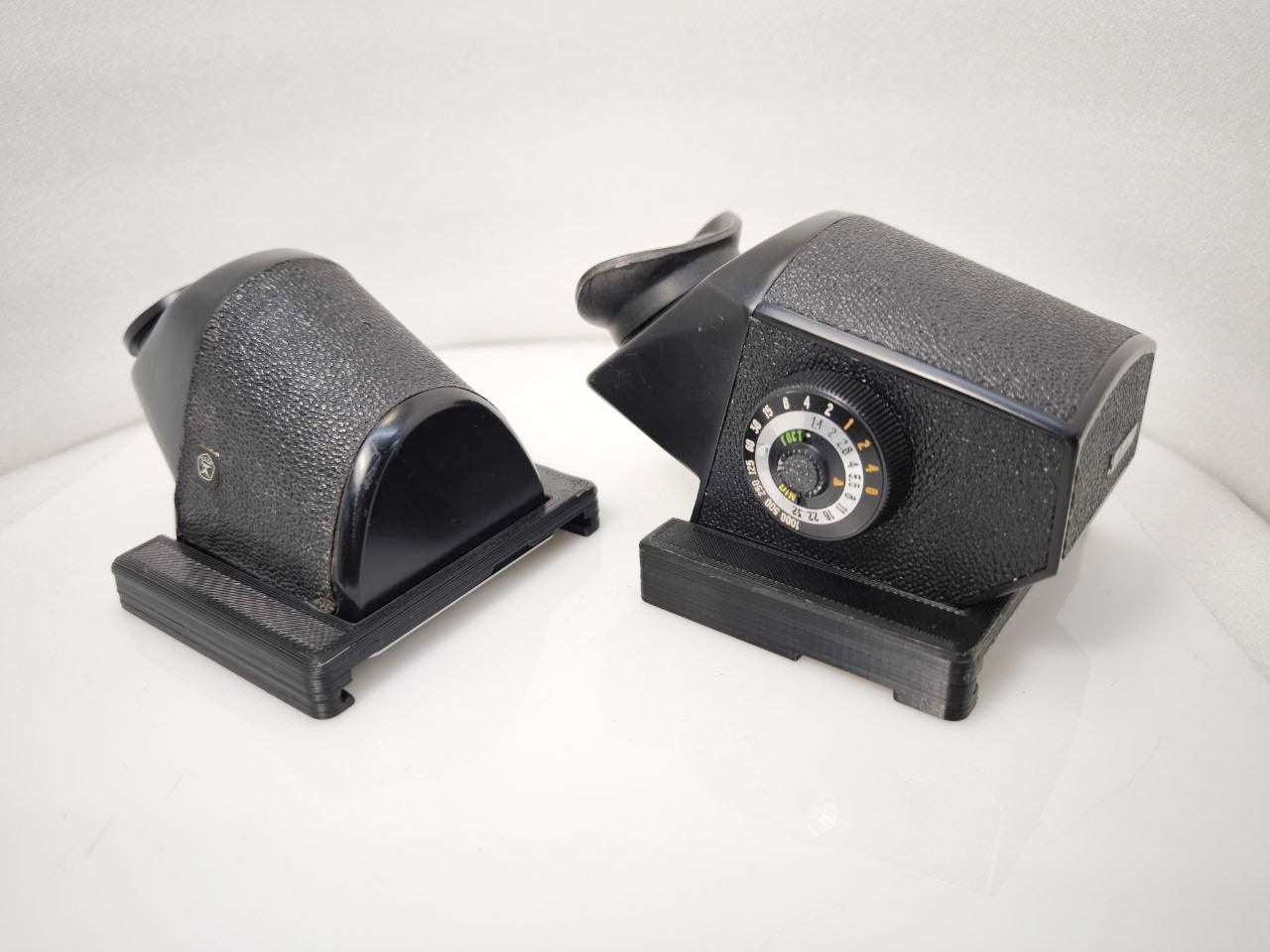

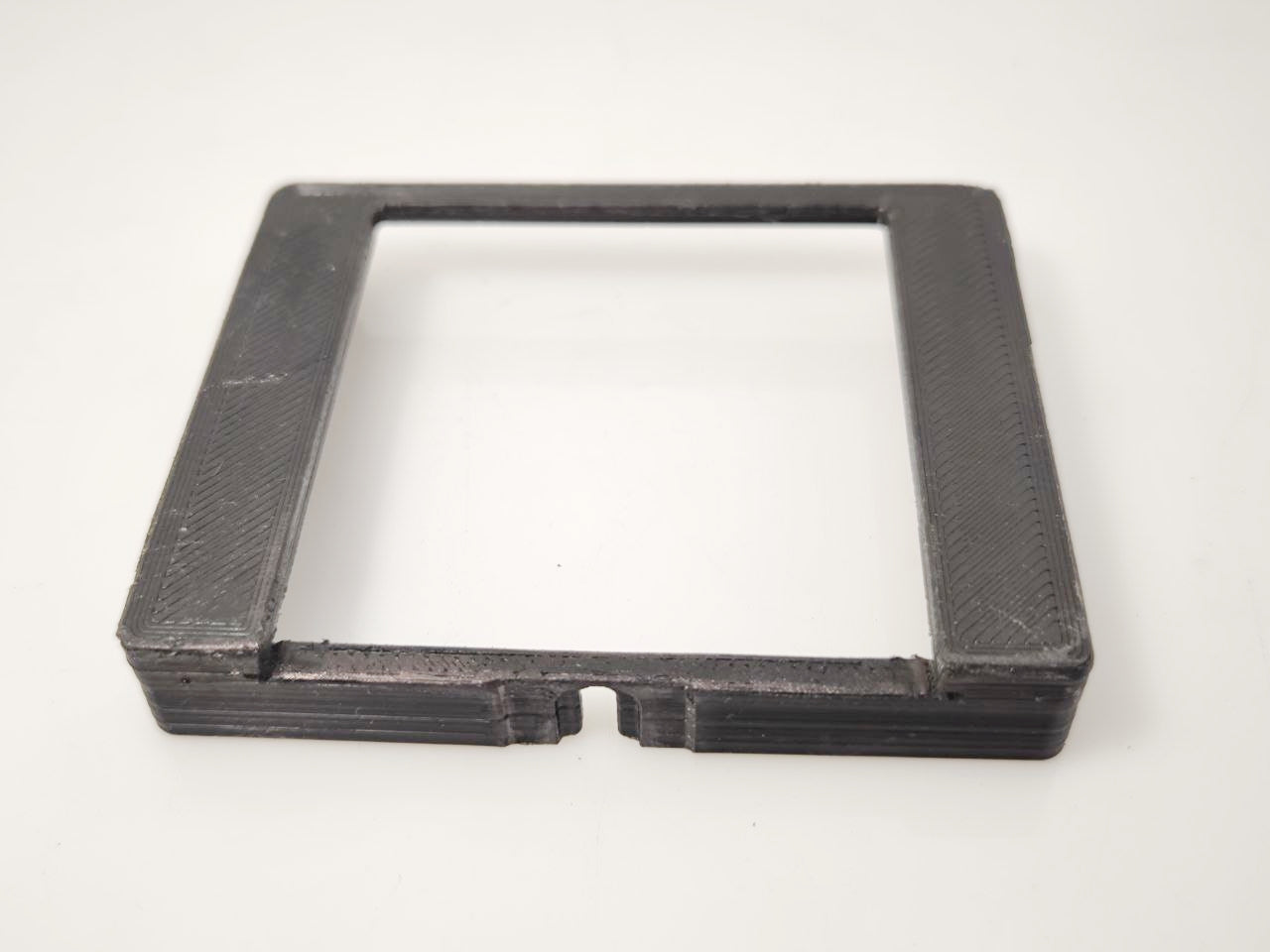

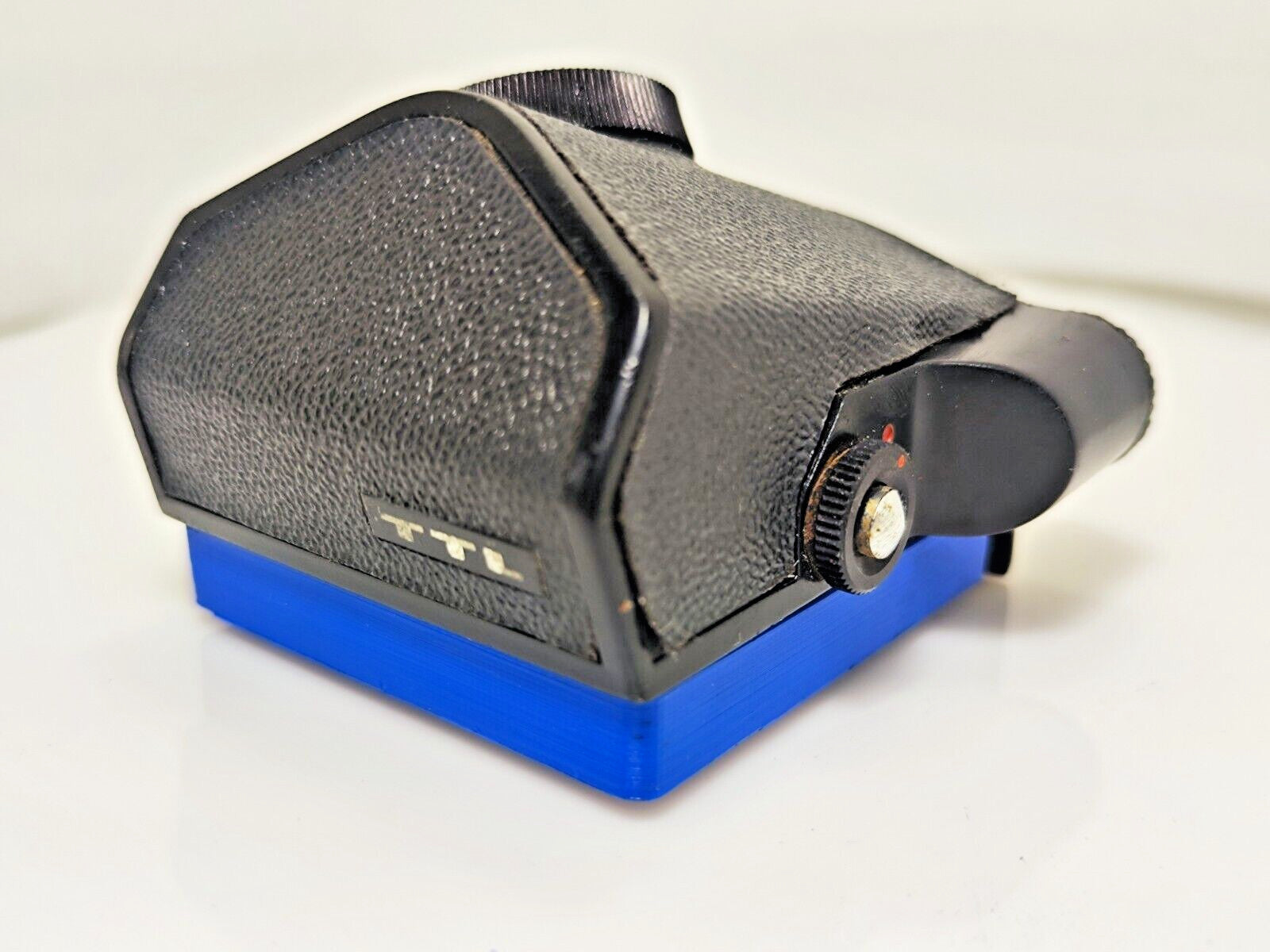

  12. Adapter for use Kiev-88 prism finder or waist level finder on Mamiya C3

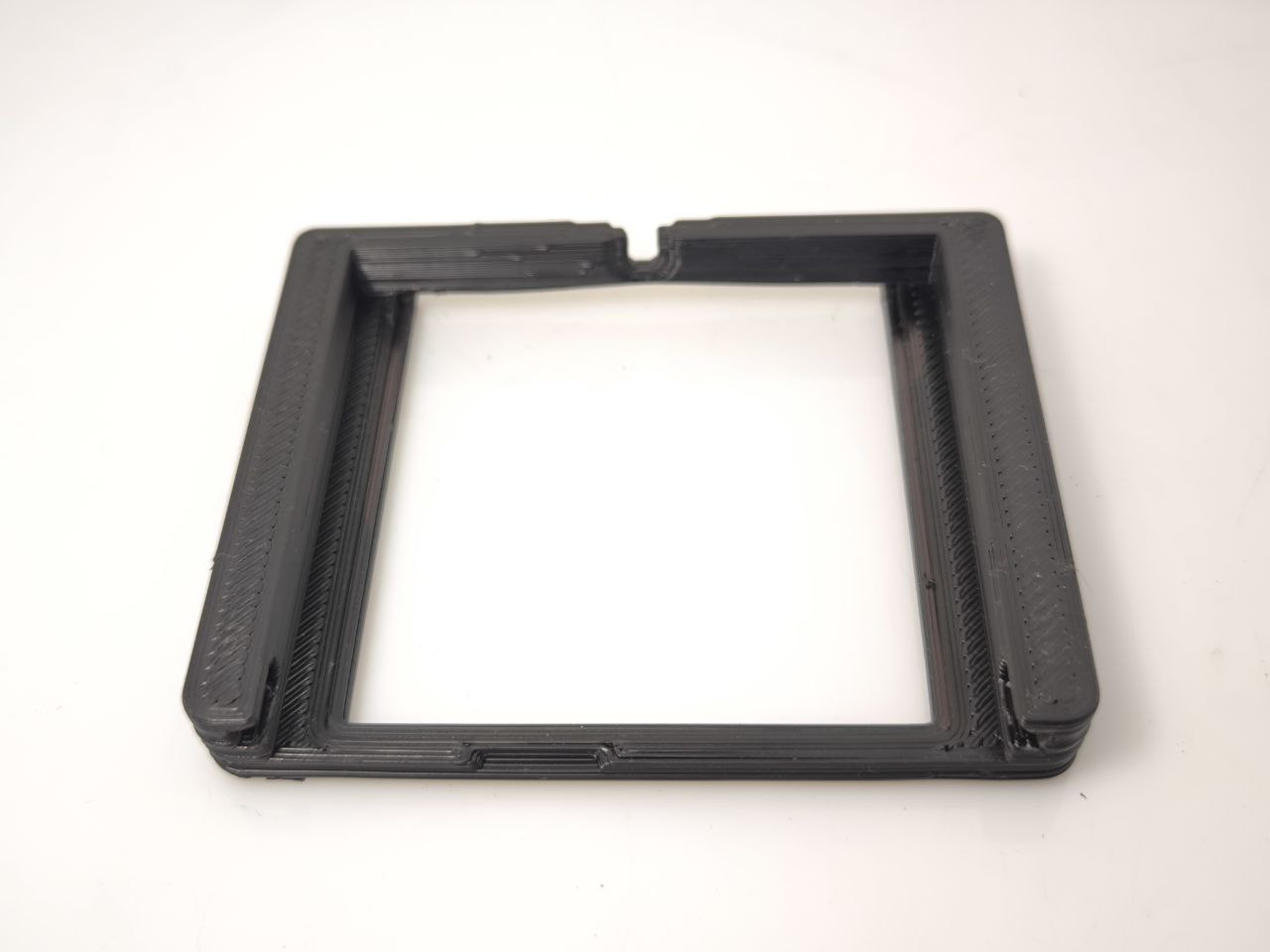

  13. Adapter for use Kiev-88 prism finder or waist level finder on Mamiya C330



INFO:

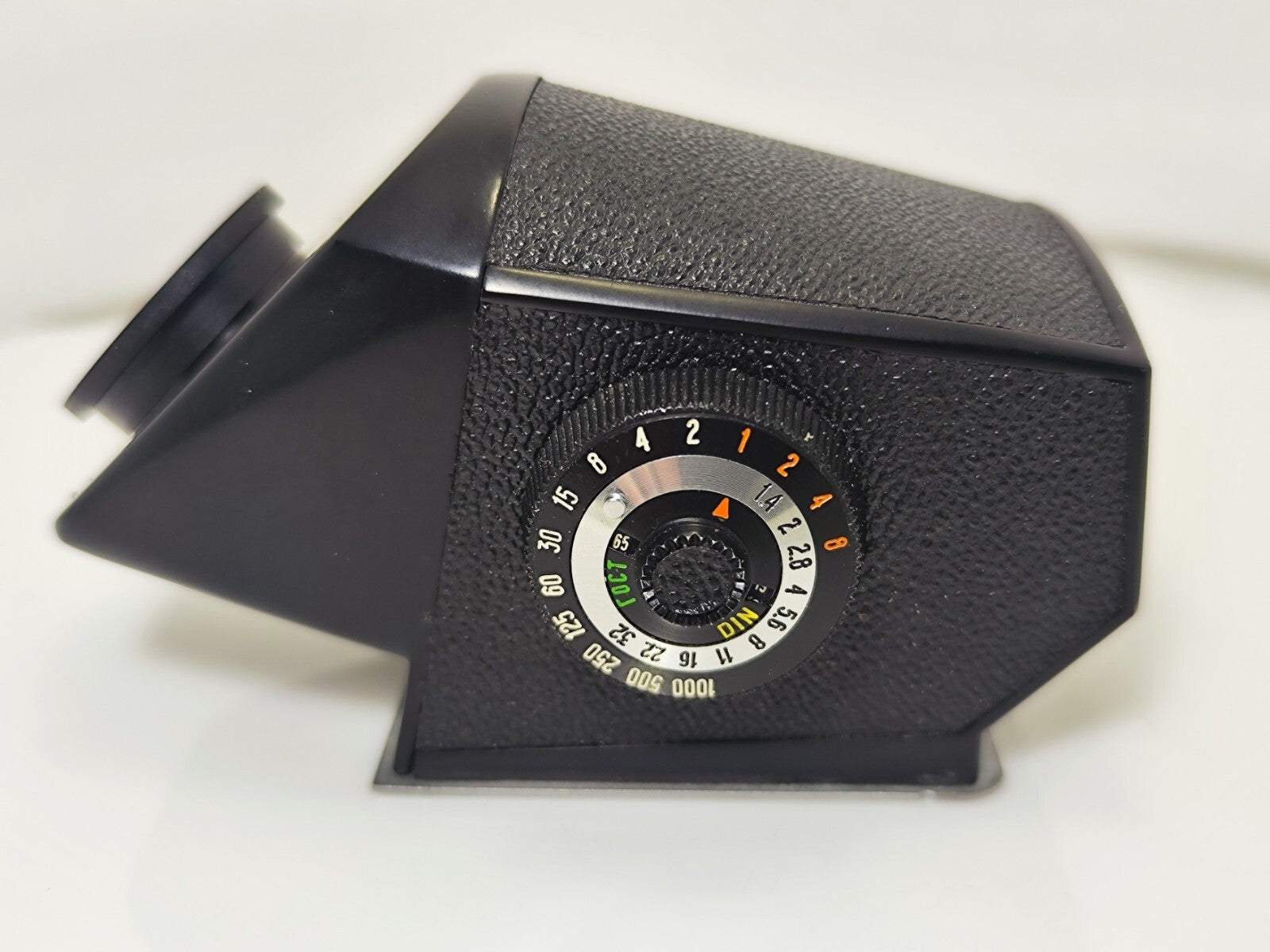

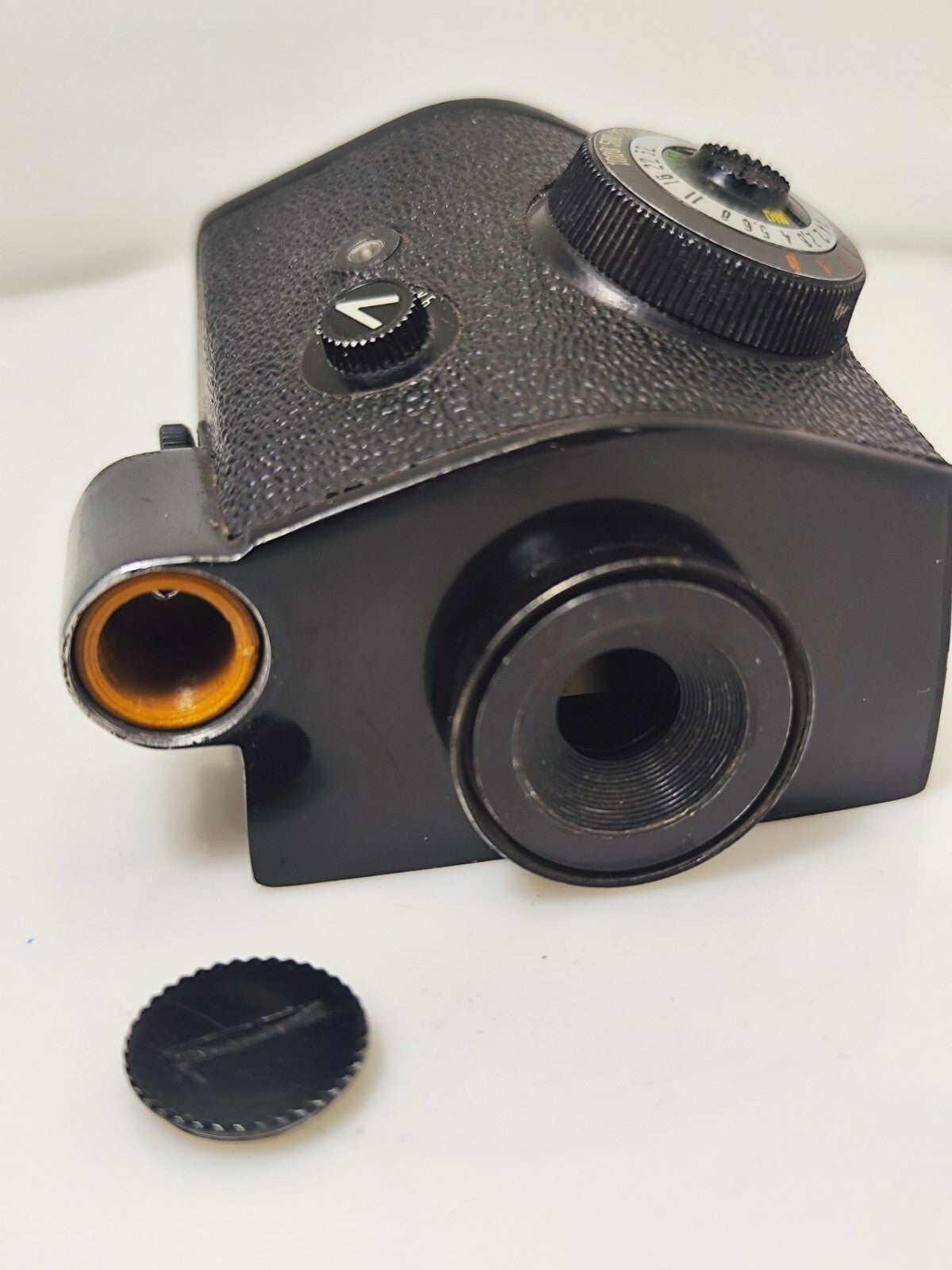

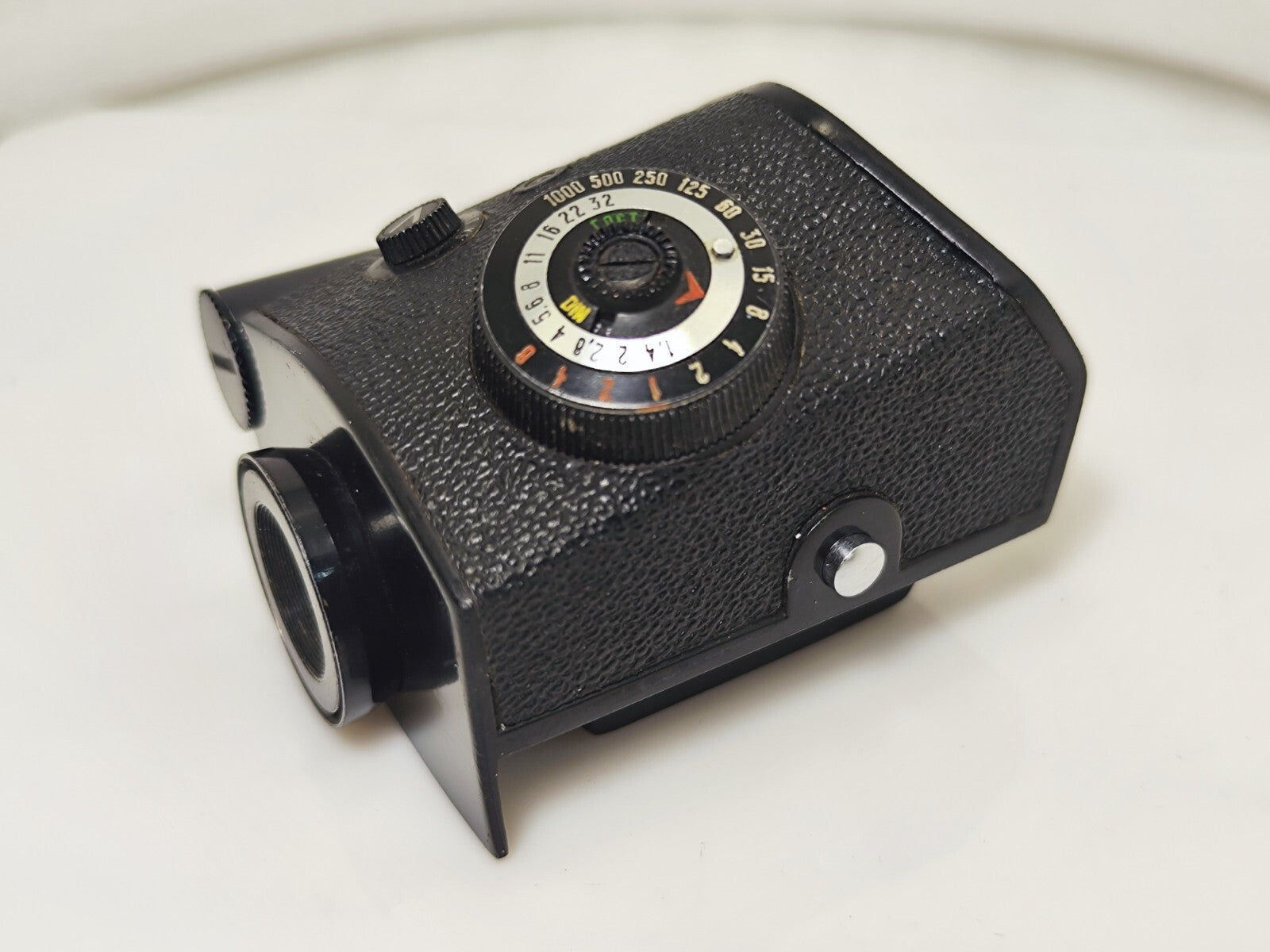

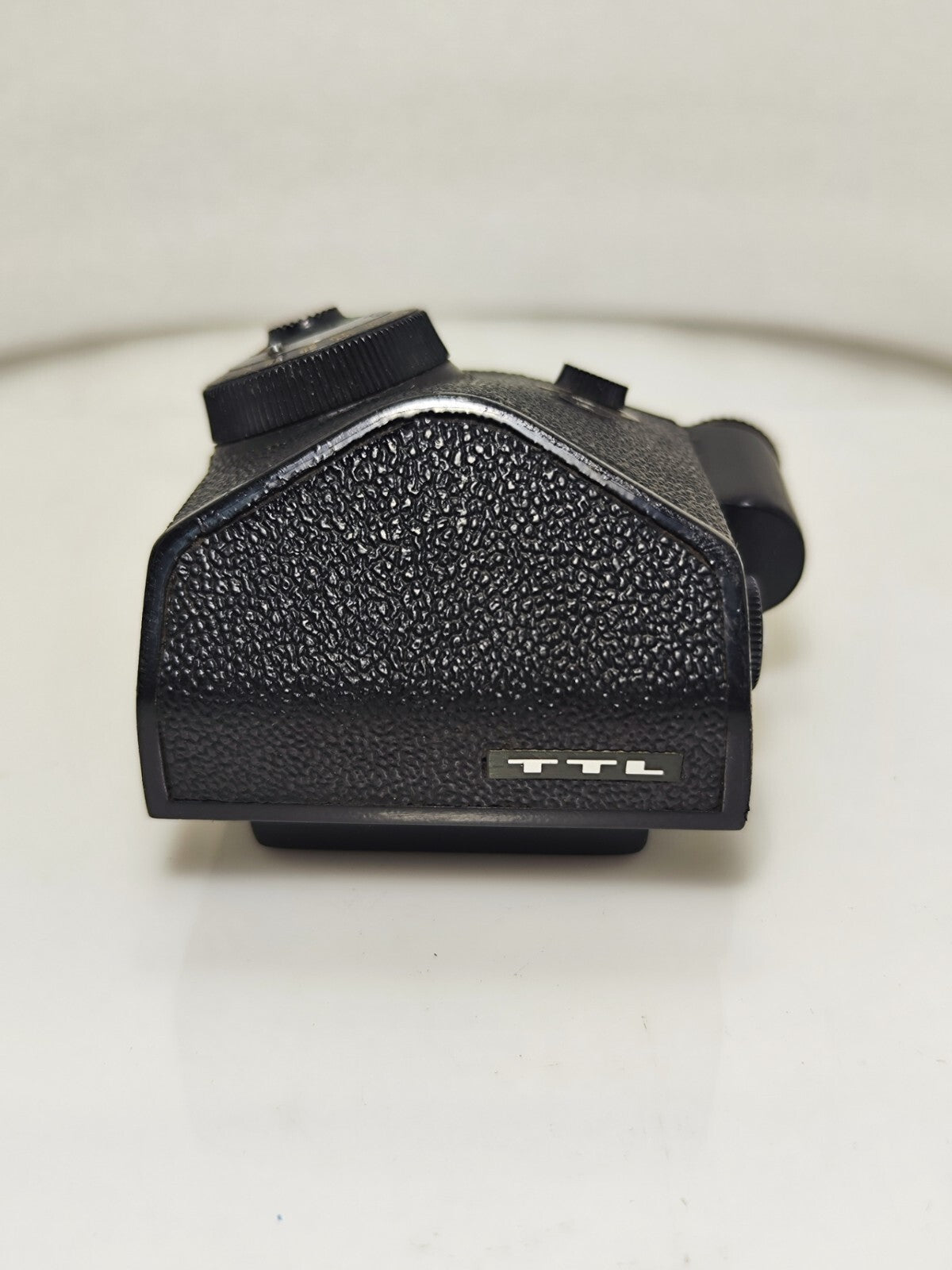

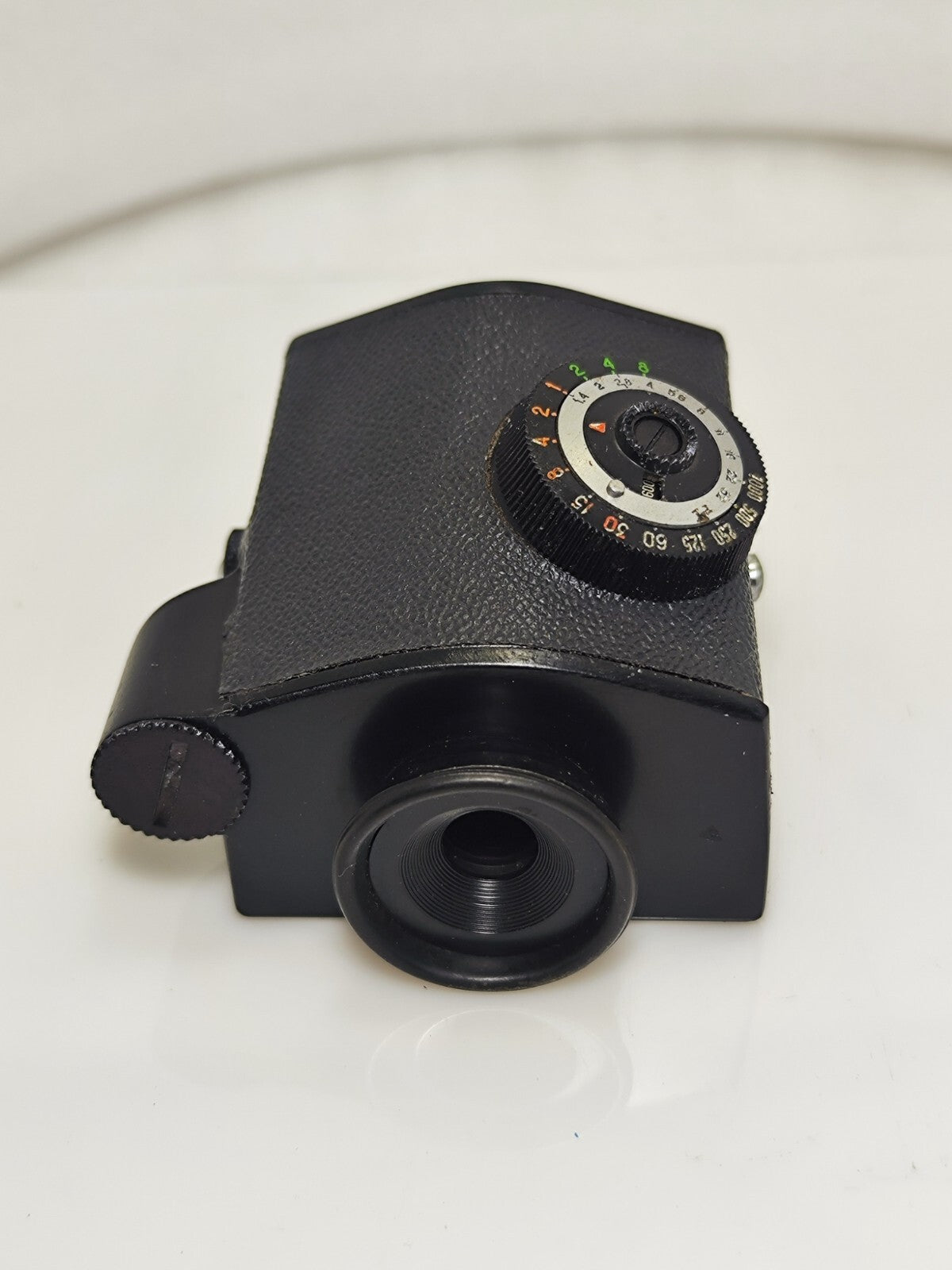

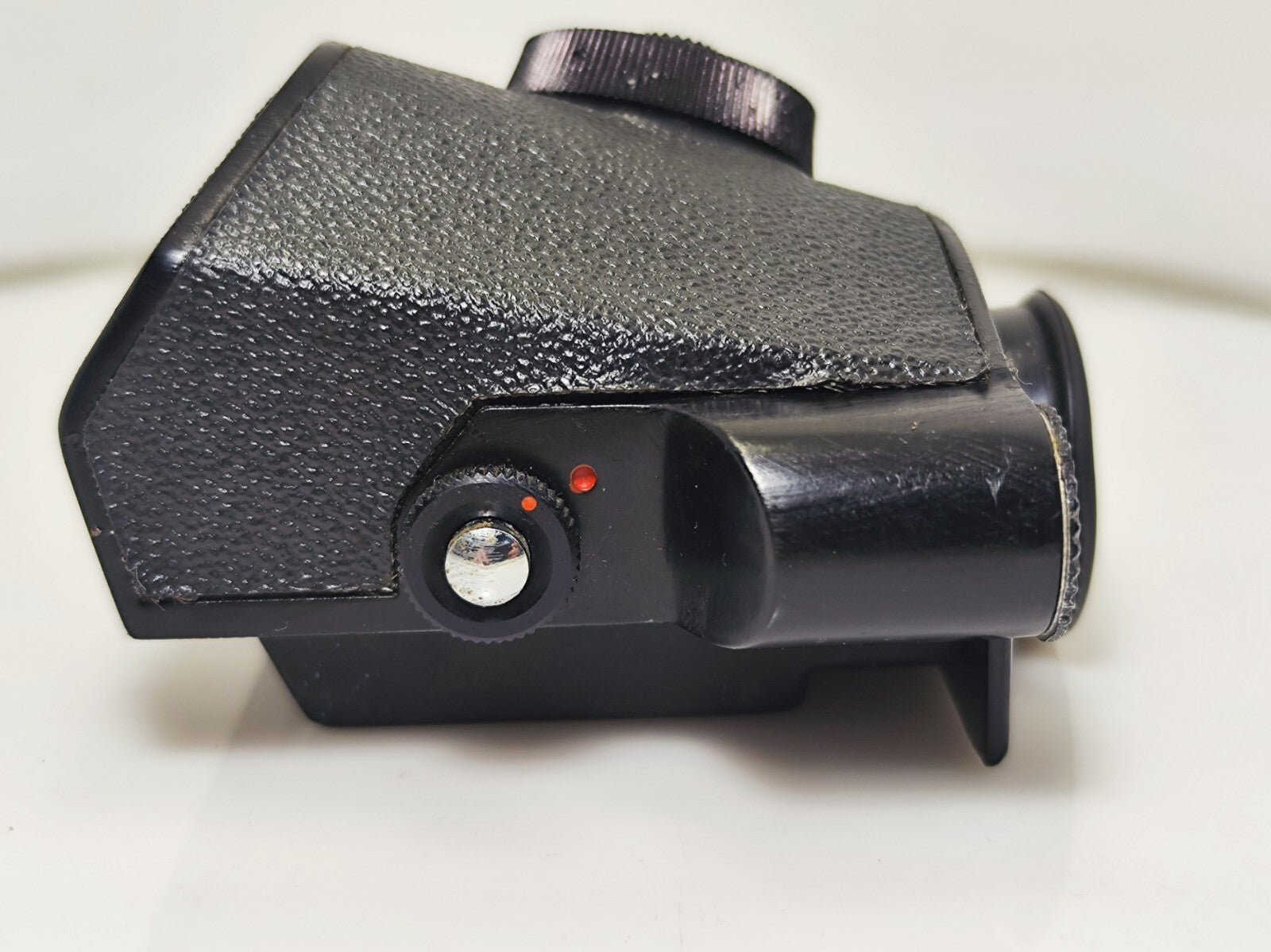

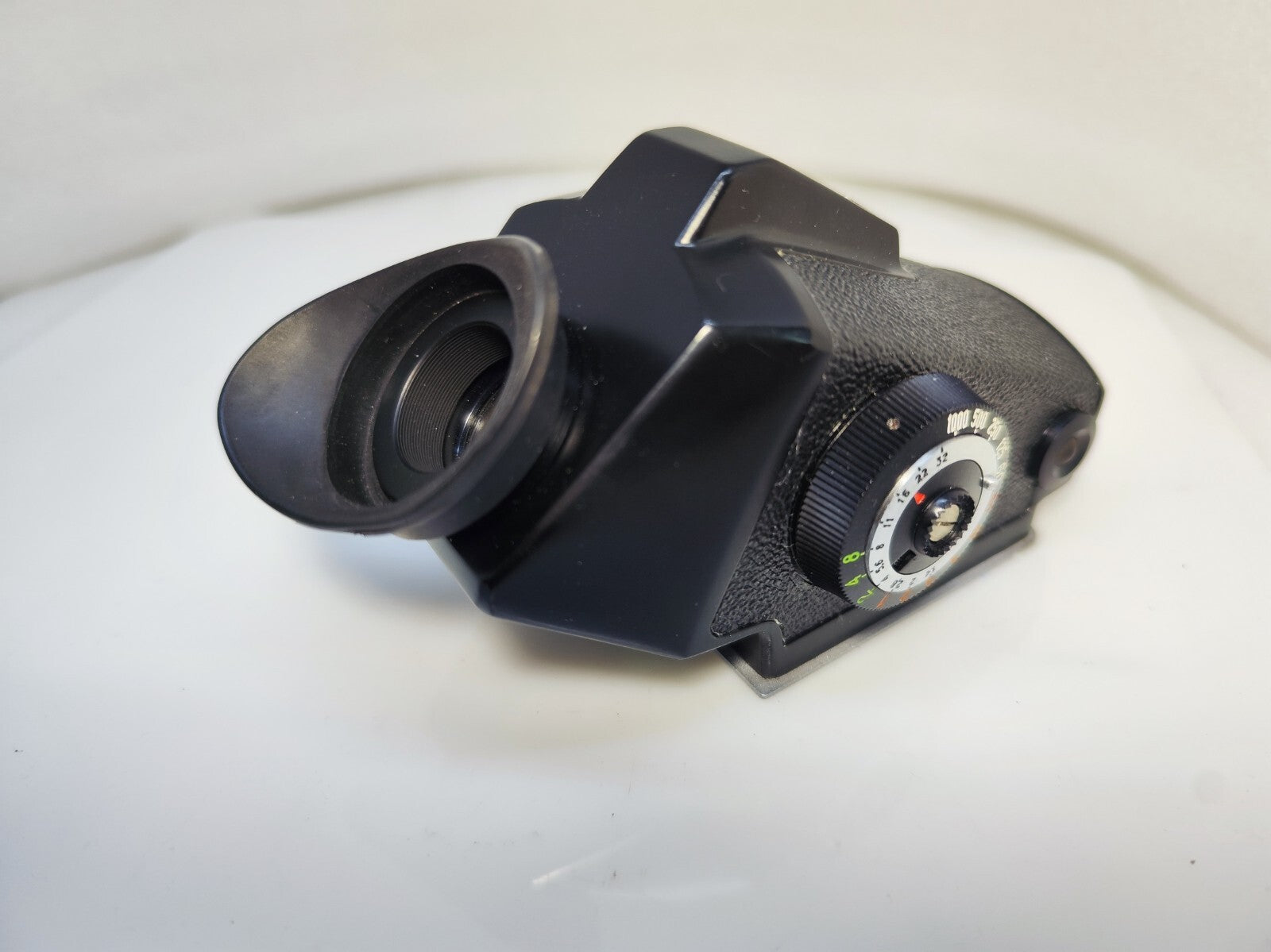

The Kiev-60 and Kiev-6C TTL metered prism viewfinder was produced at the ARSENAL factory between 1977 and 1988. It features a 3-position switch with settings for On, Off, and Battery Check, along with a GOST/DIN sensitivity scale. The viewfinder also includes a battery control light indicator. The power system can be adapted to use modern LR44 batteries.
The primary purpose of the prism was not its metering function. Given the use of outdated electronic components manufactured in the USSR, the accuracy of the TTL metering cannot be guaranteed. We recommend using a modern external light meter for more reliable results.

Metering type: Integral
Magnification: 3X
Field of vision: 53X53 mm.
DIN exposure ranges: 10, 13, 16, 19, 22, 25, 28, 31
GOST exposure ranges: 6, 12, 25, 8, 16, 32, 65, 130, 250, 500
Shutter speed ranges: 8, 4, 2, 1, 1/2, 1/4, 1/18, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000
Aperture ranges: 1.4, 2, 2.8, 4, 5.6, 8, 11, 16, 22, 32

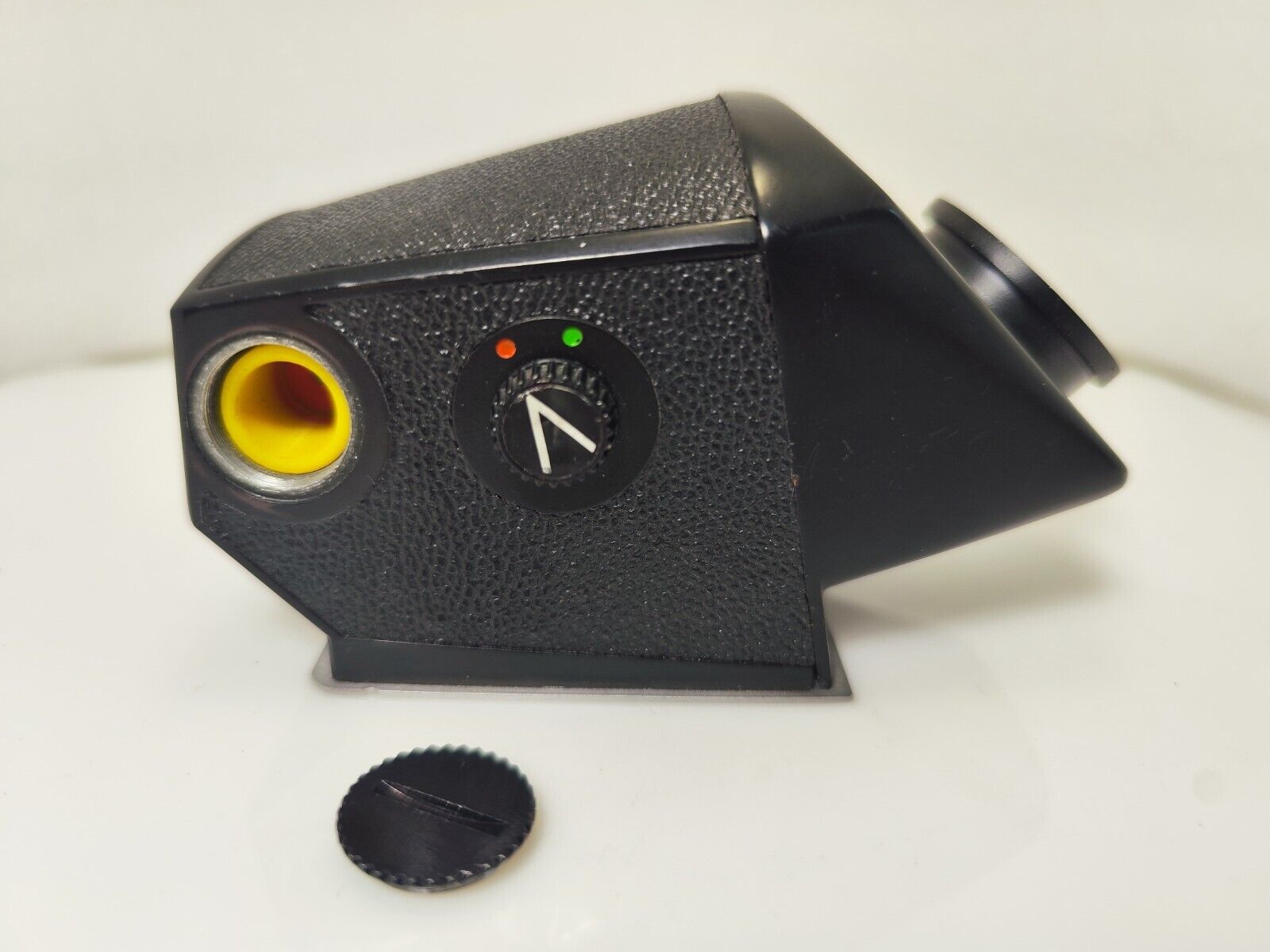

Power: 3x LR44 type battery in adapter
Supply Voltage: 4-6 V
Overall dimensions: 88x62x97mm
----------------------------------------------

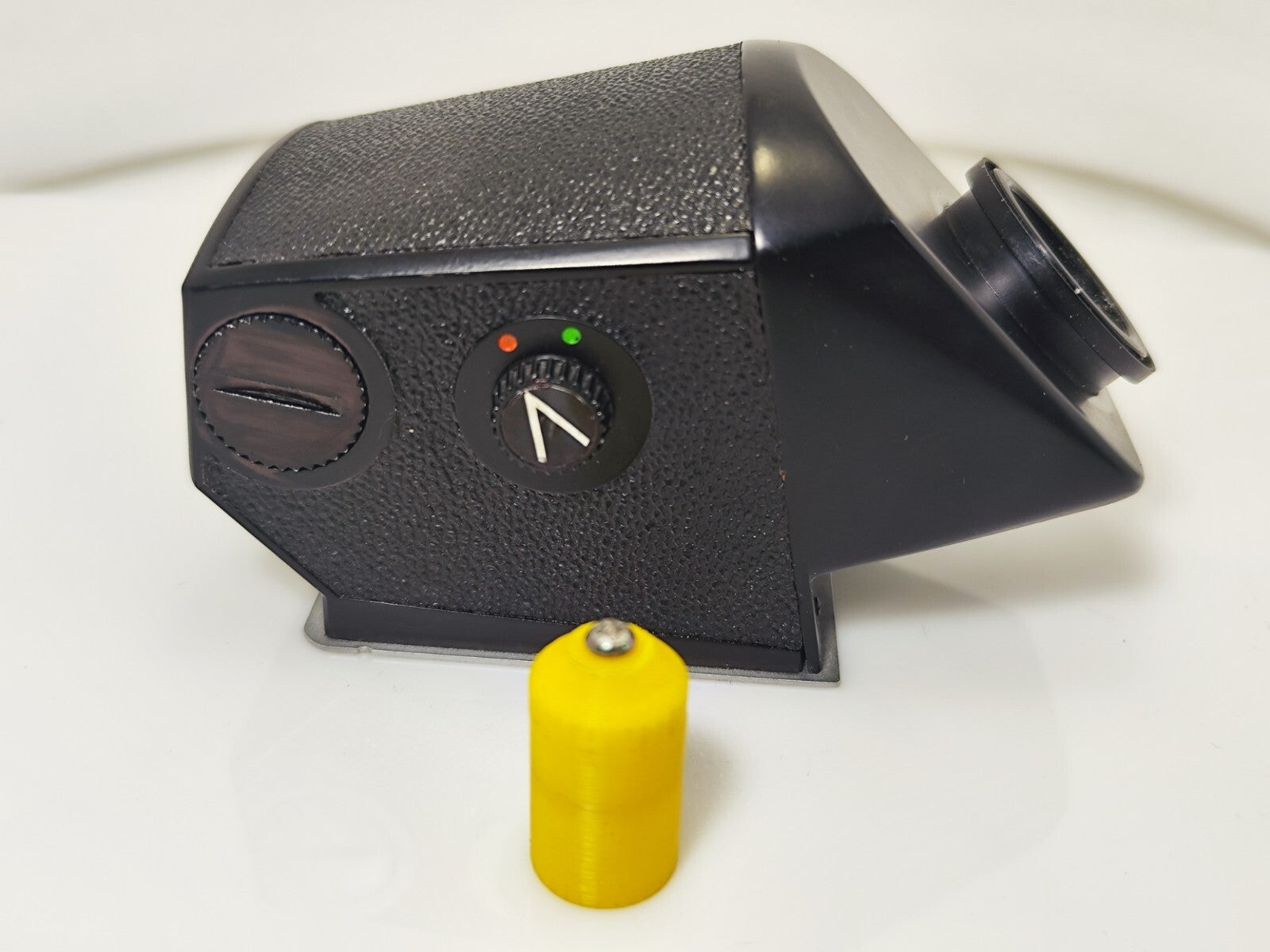

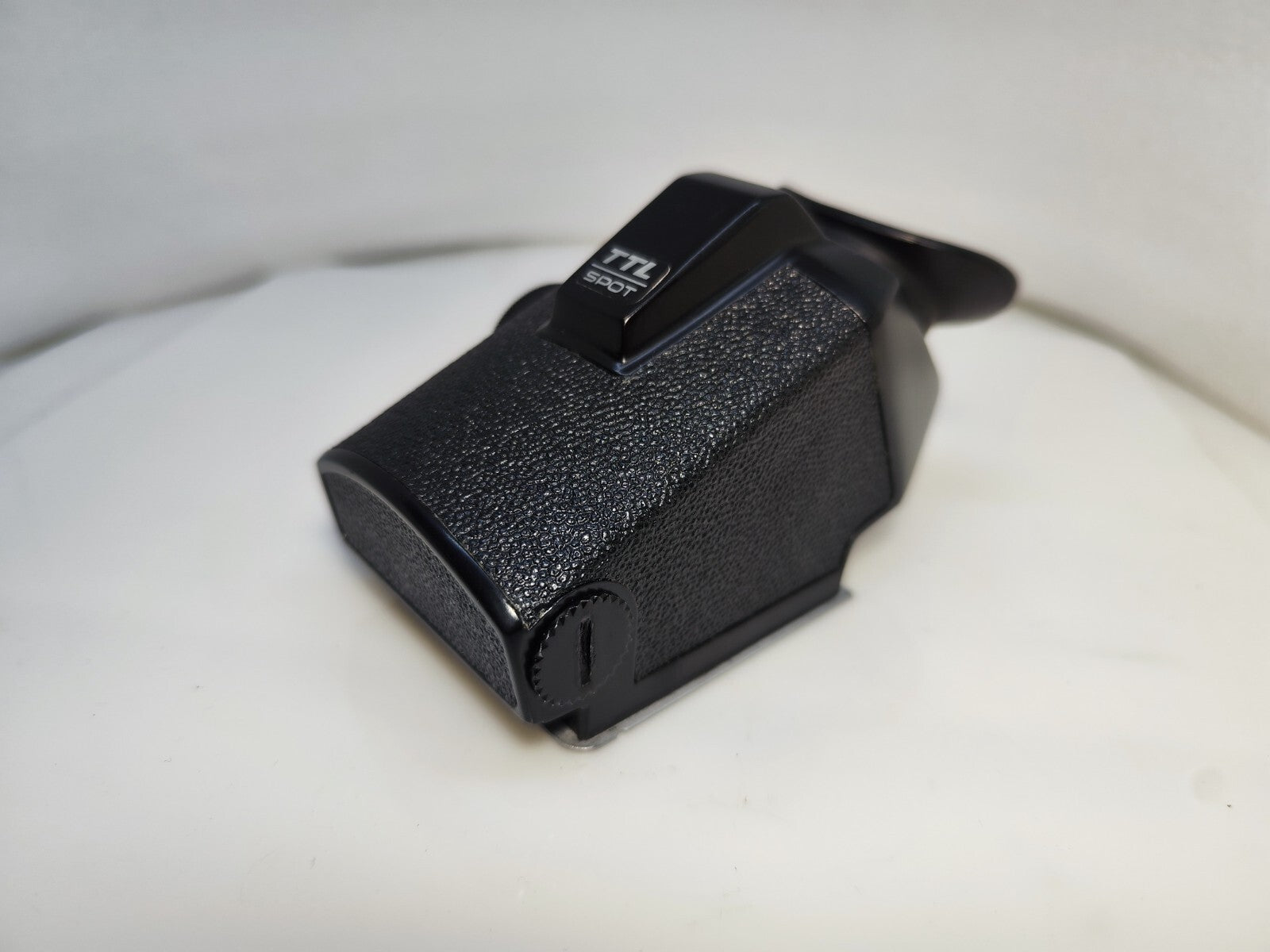

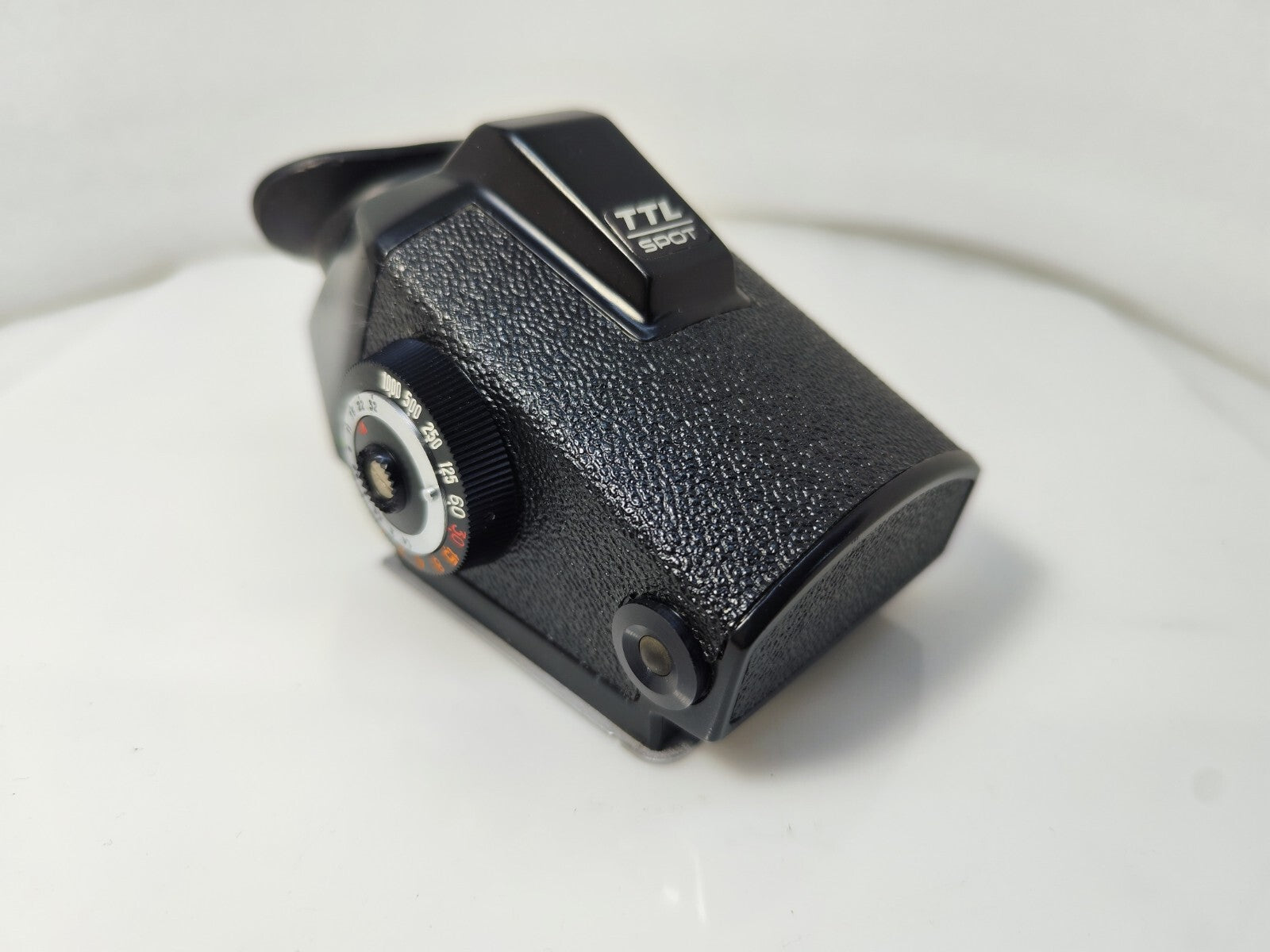

Highest quality TTL/SPOT electronically-metered prism viewfinder. This is a last and more accurate metering version made in ARSENAL factory (Kiev, Ukraine). Has two type of metering - spot and center-weighted. No switch as on old version, has only one button to change from spot to center-weighted metering. A reflected light meter capable of taking precise reading of very small areas of subject or scene. Looks perfectly and fits Hasselblad, ARAX, KIEV-88, SALYUT cameras.

Specification:

Integral Metering: Yes
Spot Metering: Yes
Field of vision: 53X53 mm.
Magnification: 3X
ISO exposure ranges: 6, 12, 25, 50, 100, 200, 400, 800, 1600, 3200
Shutter speed ranges: 8, 4, 2, 1, 1/2, 1/4, 1/18, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000
Aperture ranges: 1.4, 2, 2.8, 4, 5.6, 8, 11, 16, 22, 32
Power: 3x LR44 type battery
Supply Voltage: 4.5
Overall dimensions: 76x79x126mm
Weight: 1lb or 0.46kg
Manufacturer: Arsenal factory
-----------------------------------------


Disclaimer:
The primary purpose of the prism finder was not its metering function. Given the use of outdated electronic components manufactured in the USSR, the accuracy of the TTL metering cannot be guaranteed. We recommend using a modern external light meter for more reliable results.
