Zenit KMZ

Meteor 5-1 lens 17-69mm/1.9 Zoom M42 ARRI PL Canon EF mount Red One BMPCC Aaton

Meteor 5-1 lens 17-69mm/1.9 Zoom M42 ARRI PL Canon EF mount Red One BMPCC Aaton

Regular price $223.99 USD
Regular price Sale price $223.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Item Height
Compatible Brand: For Arri,For Canon,For Four Thirds,For Lomo,For Lumix,For Nikon,For Olympus,For Panasonic,For Samsung,For Sony
Maximum Aperture: f/1.9
Mount: M42, Arri PL, Canon EF mount
Focal Length: 17-69mm
Exterior Material: Aluminum
Brand: Zenit KMZ
Series: KMZ cine lens
Type: Cine Lens,High Quality,Telephoto,Zoom
Focus Type: Manual
Compatible Filter Size: 77 mm

Focal Length Type: Fixed/Prime

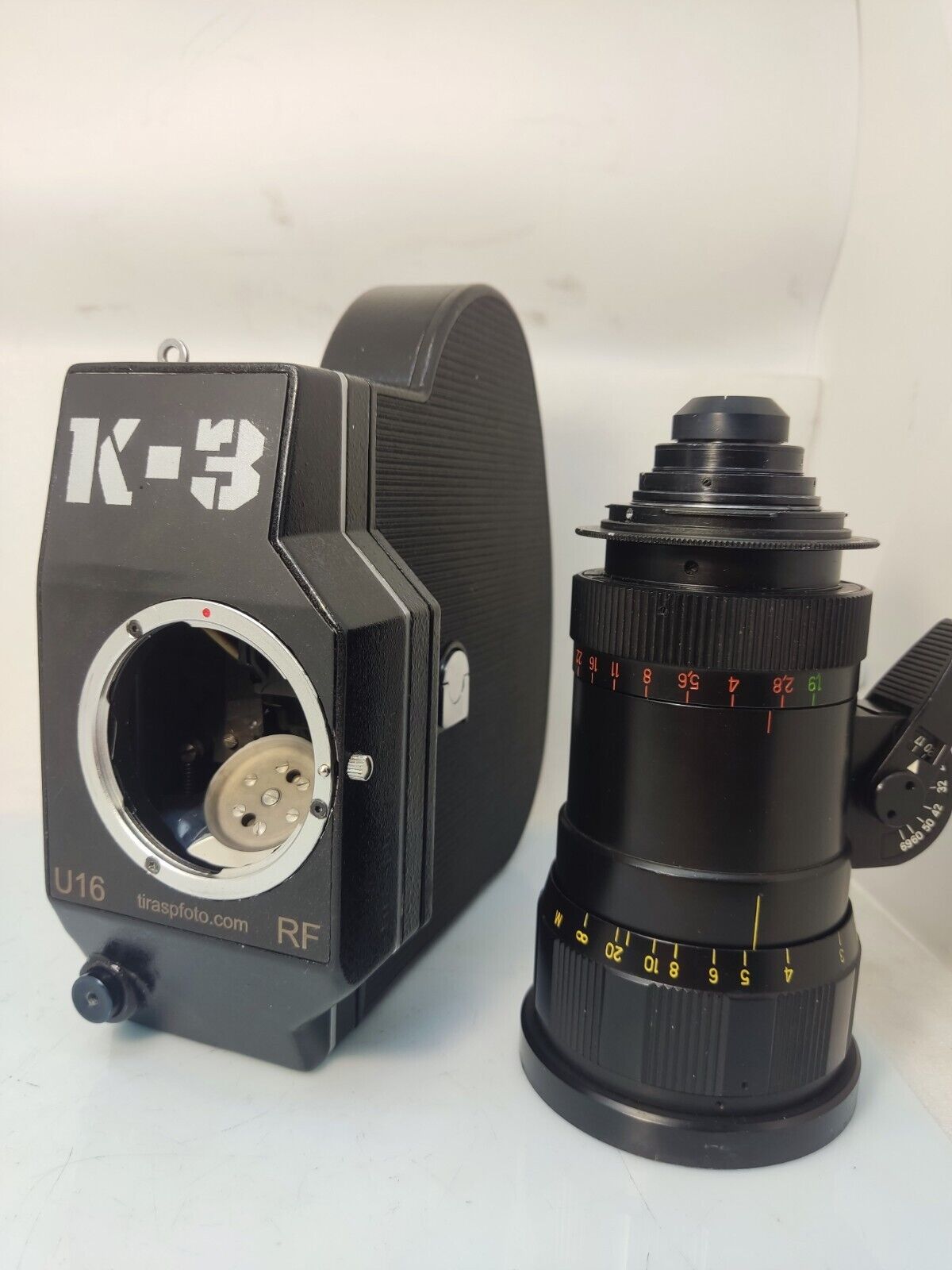

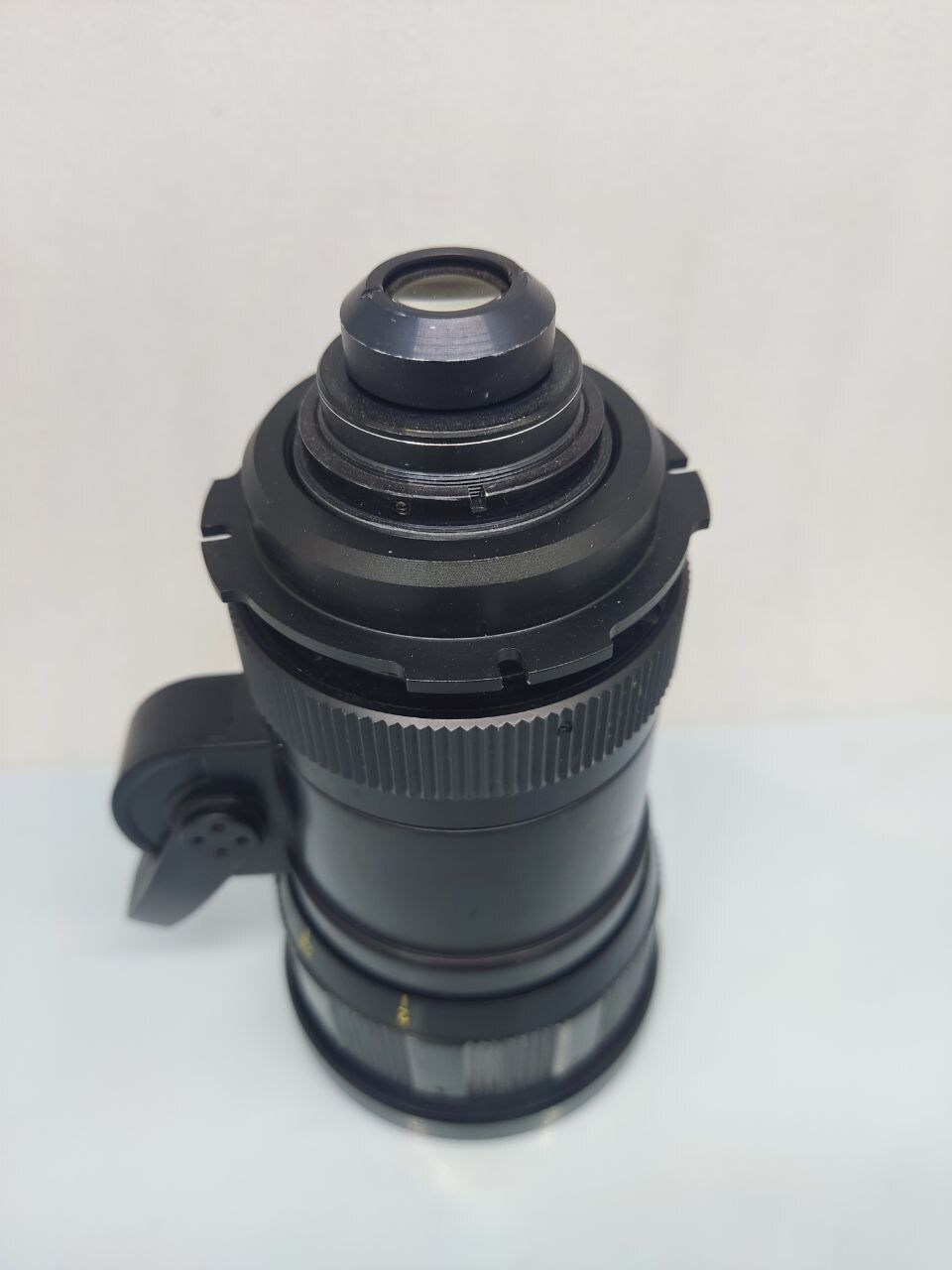

 Zoom Meteor 5-1 f/1.9 17-69mm cine lens
from the 16mm Krasnogorsk-3 movie camera K3 K-3
M42, ARRI PL or Canon EF mount for Arri Red Aaton BMPCC etc.

Variations:

1. Meteor 5-1 f/1.9 17-69mm M42 thread
mount
2. Meteor 5-1 f/1.9 17-69mm Arri PL mount
3. Meteor 5-1 f/1.9 17-69mm Canon EF mount


Can be used with many system mirrorless cameras with the right M42 adapter.
Panasonic, Sony, BMPCC, Nikon etc.

The lens is for 16mm film camera, so it is recommended to use it on Black Magic Pocket Cinema Cameras to avoid vignetting, though it will vignette a bit even there at wide angles (F=17-20mm).
The Meteor-5-1 17-69mm f/1.9 is a zoom lens for Krasnogorsk-2 and Krasnogorsk-3 movie cameras. The lens came in variants with both the unique Krasnogorsk bayonet mount and the M42x1 mount (flange focal distance - 45.5 mm)

The optical scheme of the lens includes 16 elements. Four elements make the principal lens; 12 elements in 5 groups are a part of the variable magnification and focusing system. Focal length is changed by moving elements 2 and 4, whereas elements 3 and 5 are used to correct violations of bundle of rays parallelism. Front positive element 1 is used for focusing at finite distances from 1 m to infinity. The element is manually operated.

The Meteor-5-1 lens is designed for a 7.45x10.05mm frame size. Rear focal distance, i.e. distance from the rear element to the light detector, film or sensor, is approx. 15 mm. So the lens cannot be mounted on SLR cameras!!!

Image circle diameter when focusing to infinity and with the focal length of 17 mm is approx. 15 mm, and 18 mm with the focal length of 69 mm.

Sensor diagonal (approx.):
APS-C - 30 mm
4/3 - 22 mm
Nikon CX - 16 mm

So, in order to achieve good performance the lens should be used on Nikon 1 cameras: Nikon J1, Nikon V1. With 4/3 and APS-C cameras, the lens may be used for 1.5-2x digital zoom video shooting. Equivalent focal length on Sony NEX cameras is approx. 50 - 207 mm.

Meteor 5-1 Zoom
Zoom Range: 17mm-69mm
Maximum apature: f1.9
Minimum apature: f22
Minimum Focusing Distance: 2.0 meters
Flange Focal Depth: 45.5mm
Thread: M42x1mm (Pentax Screw)
Filter Thread: 77x0.75mm

_____________________________________

Usual shipping time (with tracking) to EU 7-25 days, USA and Canada 10-35 days, other world 15-45 days.

This is a used item and may have traces of usage. Purchasing old/vintage/used equipment please make sure it is compatible with your new cameras, lenses etc. you are going to use it with. Import duties, taxes and charges are not included in the item price or shipping cost.
