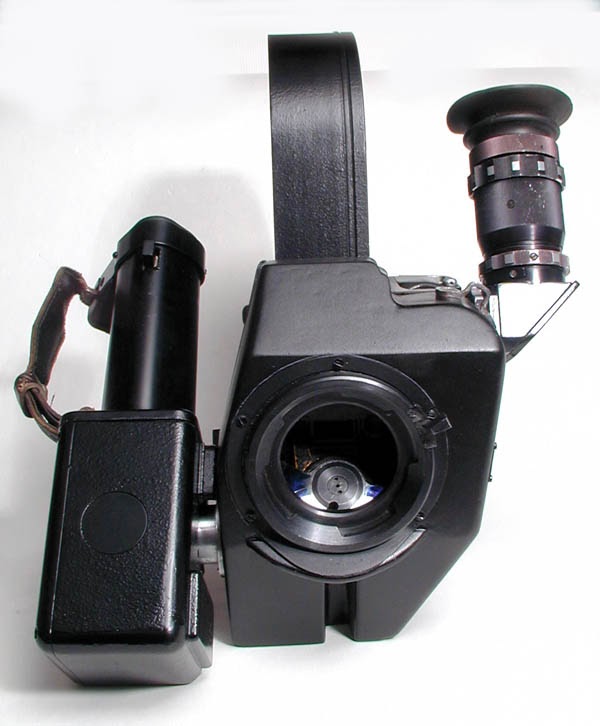

Konvas-2M 1KCP-2M 35mm Camera Crystal Sync - 18/35/50/150mm OCT19 Arri PL mount

The motion picture camera is designed for handheld or light tripod shooting of standard and widescreen films in the studio and on location on black-and-white or color 35mm film. The model uses a single-blade mirror shutter with a constant opening angle. The film movement is straight and in a single plane.

Variations:

(Variation 14 is a service and can therefore only be purchased together with variation 1 or 3.)

1. Konvas 1KCR-2M (incl. 15EPSS motor and two 60m mags)

2. Matte box. Compendium.

3. Konvas 1KCR-2M + Matte box(incl. 15EPSS motor and two 60m mags)

4. Crystal sync 17EP-16APK motor

5. Crystal sync 18EP-16APK motor

6. OKC1-18-1 2,8/18mm lens OCT19

7. OKC7-28-1 2.0/28mm lens OCT19

8. OKC11-35-1 2,0/35mm lens OCT19

9. OKC1-50-6 2,0/50mm lens OCT19

10. OKC1-150-1 2,8/150mm lens OCT19

11. OKC1-300-1 3,5/300mm lens OCT19

12. OKC9-500-1 5,3/500mm lens OCT19

13. 120m magazine

14. Arri PL mount conversion

The tape transport mechanism is partially housed in a cassette, which allows for quick reloading of the device. Frame rates - 8, 16, 24, 32 frames per second. Film format - 35 mm. Capacity of single and double cassettes - 60 and 120 m.

Compared to the original Konvas (commonly referred to as the Konvas-1) and later Konvas models to the Konvas 1M, the Konvas 2M is a smaller, more modern 35mm motion picture camera. The Konvas 2M manufacturers made the decision to replace the front end with a more modern, sleeker, single-lens system in favor of the previous turret configuration. The Konvas 2M camera was able to accept a different, more robust mount thanks to its single lens construction. Compared to the previous OCT18 mount design, this mount design is far more durable and resembles the Arri PL mount.

The choice to alter the design may have been influenced by the fact that lenses that work better with other cameras, such as the Kinor 35H and 35C and the Temp SKL, use the same mount.

Additionally, at the time the Convas 2M was released, the lenses (and glass in them) were evolving quickly. As the speed of the zooms became more reasonable, the heavier zoom lenses started replacing the lighter prime lenses. In addition to providing greater space for cinematographers to choose finer glass, a more robust mount was required to help support the additional weight. These new lenses were made possible by the Konvas 2M.

The majority of the Konvas 2M's accessories, such as the motors, viewfinders, and magazines, are completely compatible with the Konvas 1M. The mirror and gate are among the many internal components of the Konvas 2M that are also compatible.

General information:

Konvas-2M 1KSR-2M

Anamorphic zoom lenses OPF-7, OPF-15,

OPF-25 50-500mm

OPF-18 40-240 mm

Viewfinder Reflex, 5 x , wih correction +/- 5D

Power Battery 6 v, 8,5v Noise 52-56Db

Size 680 x 280x 280 mm ( with 17EP-16APK motor, 60 m film magazine)

Weight 5,8 kg, ( with 50 mm lens, motor 17EP-16APK, 60 m film magazine)

Motor crystal sync speed electrical motors: 17EP-16APK, 19EP-16APK,18EP-16 APK.

Analog speed stabilization 15EPSS, 5DB Speed 8,16, 24, 25,32, FPS, 8 - 32, FPS, variable speeds. Film magazines Metal, daylight quick change film magazine for 200ft (60 m), 400ft (120m) film. Lenses Prime lenses from 10 mm up to 1000 mm. Anamorphic lenses from 22 mm up to 500 mm, zoom lenses,
