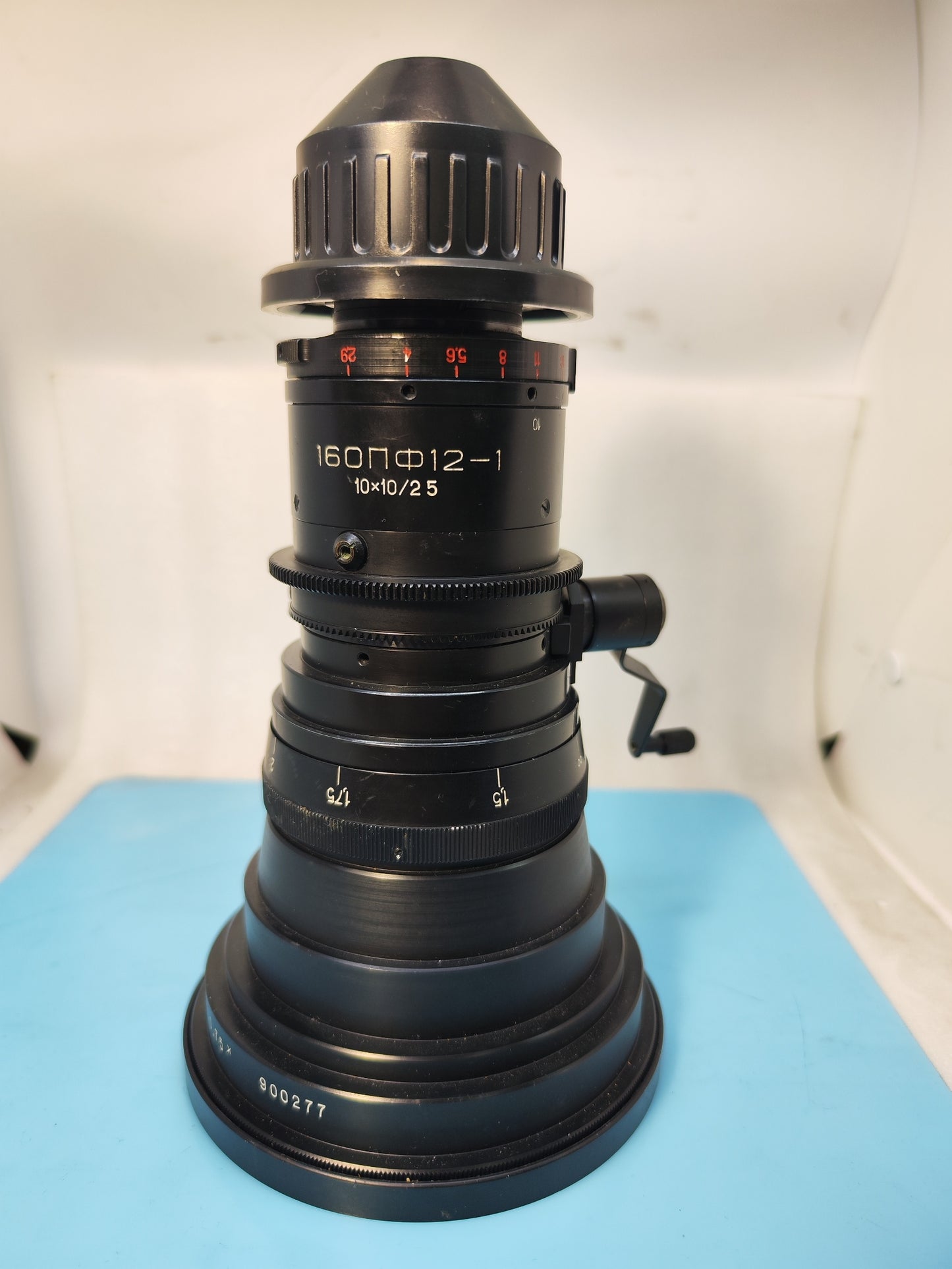

Arri PL Zoom Cine Lens 16OPF12-1 10-100mm 7.5-75mm F2.5 movie camera Kinor LOMO

Lens with variable focal length 10-100mm (zoom lens), designed for professional 16mm Kinor film cameras.

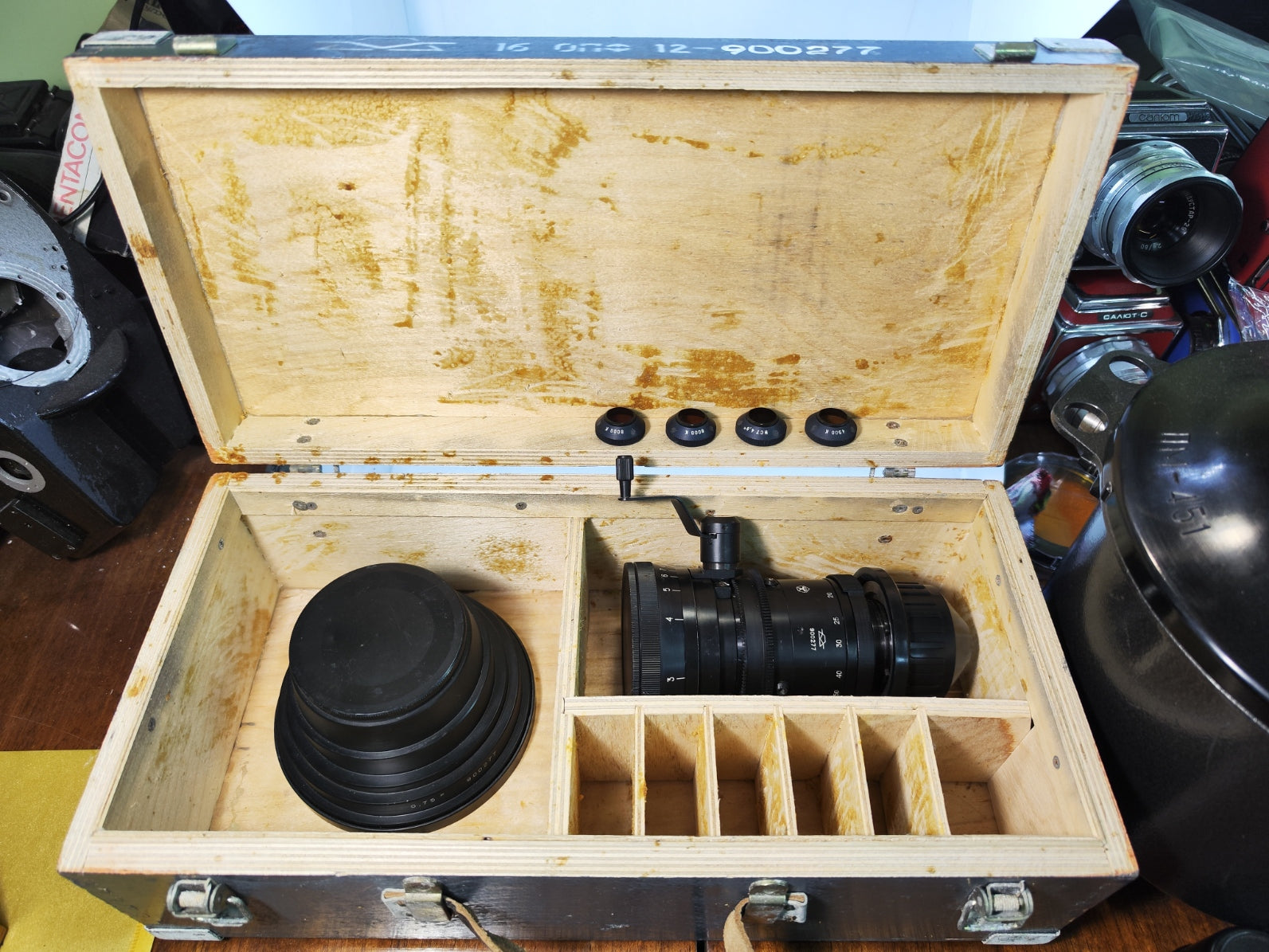

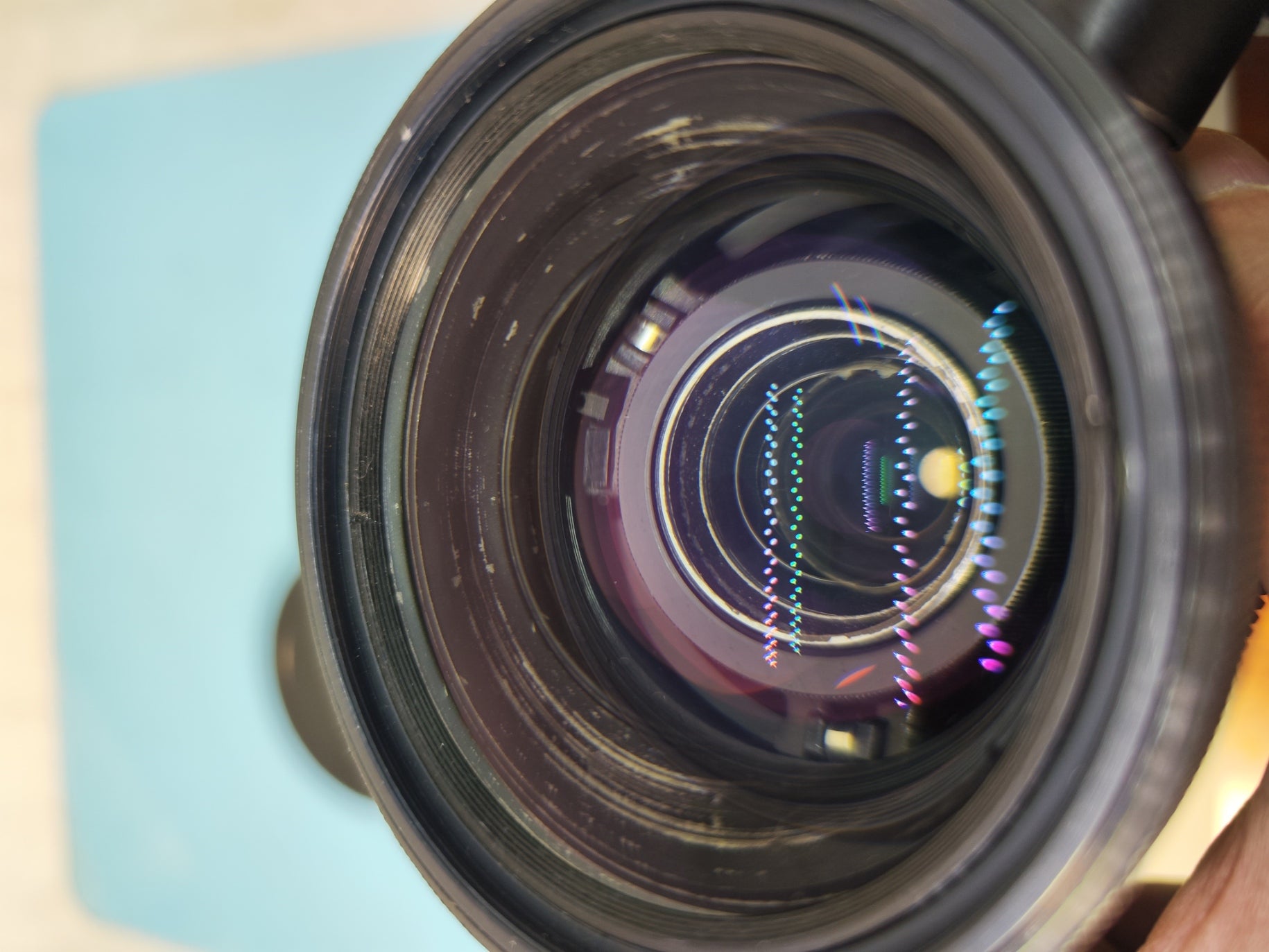

Lens: good condition. Fully functional. Attachment: several damages to the coating. Please se the pictures.

The optical design of the lens consists of 15 lenses grouped into 4 optical components. Focusing limits - from 1.5m to infinity.

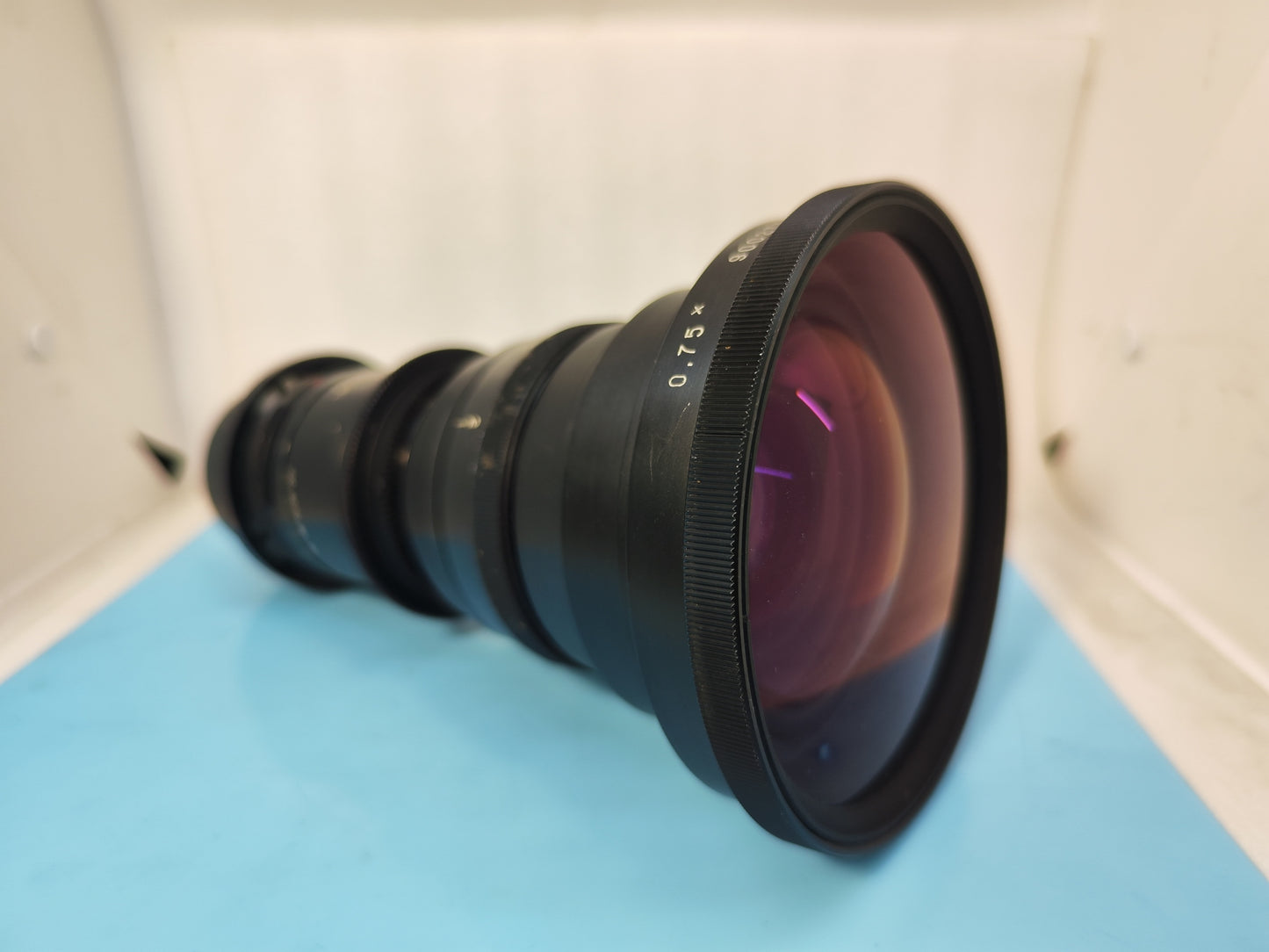

To expand focal lengths, the zoom kit includes an afocal attachment with a magnification of 0.75x. When using it, the range of focal lengths becomes 7.5-75mm. At the same time, the lens aperture does not change.It was used in conjunction with the 16OPF12-1 lens to expand the range of focal lengths of 7.5-75 mm. Although it is more correct to call it a wide-angle nozzle, since instead of 10 mm it becomes 7.5.

Main characteristics;

Focal length, mm - from 10.6 ±0.53 to 100 ±5

Rear focal segment, mm - 15.87 +0.6 - 0.3

Geometric relative aperture - 1:2.5

Field size in space, (frame), mm - 7.42 +0.15 x10.05

Minimum shooting distance, m - 1.5

Lens length without lens hood, mm - 160

Diameter without iceland, mm - 85

Working distance, mm - 52 +0.02

Lens weight without lens hood, kg - 1.08
----------------------------------

See my other items to save shipping costs.

Usual shipping time (with tracking) to EU 9-25 days, USA and Canada 12-35 days, other world 15-45 days.

This is a used item and may have traces of usage.  Purchasing old/vintage/used equipment please make sure it is compatible with your new cameras, lenses etc. you are going to use it with.
Import duties, taxes and charges are not included in the item price or shipping cost.
